Shaft Seal: Removal

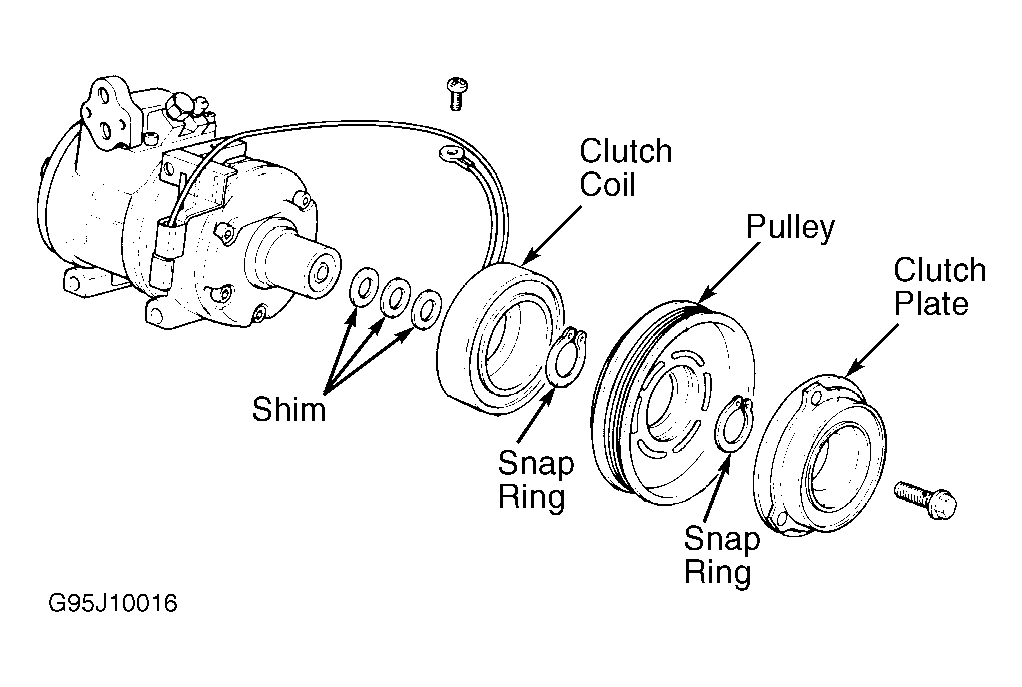

  1. Remove clutch plate and pulley. Remove shim(s) from shaft. Remove clutch coil if necessary. Remove felt and felt retainer (if equipped). See Figure . Place shaft key remover on shaft and turn to remove key.
  2. Remove seal plate snap ring. Engage plate remover on seal plate, and pull up to remove seal plate. Engage shaft seal remover/installer to shaft seal, and pull up to remove shaft seal from front housing.
