A/C Compressor/Power Steering Pump

Loosen bolts "A" and "B" and adjust belt deflection by turning adjusting bolt "C". See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

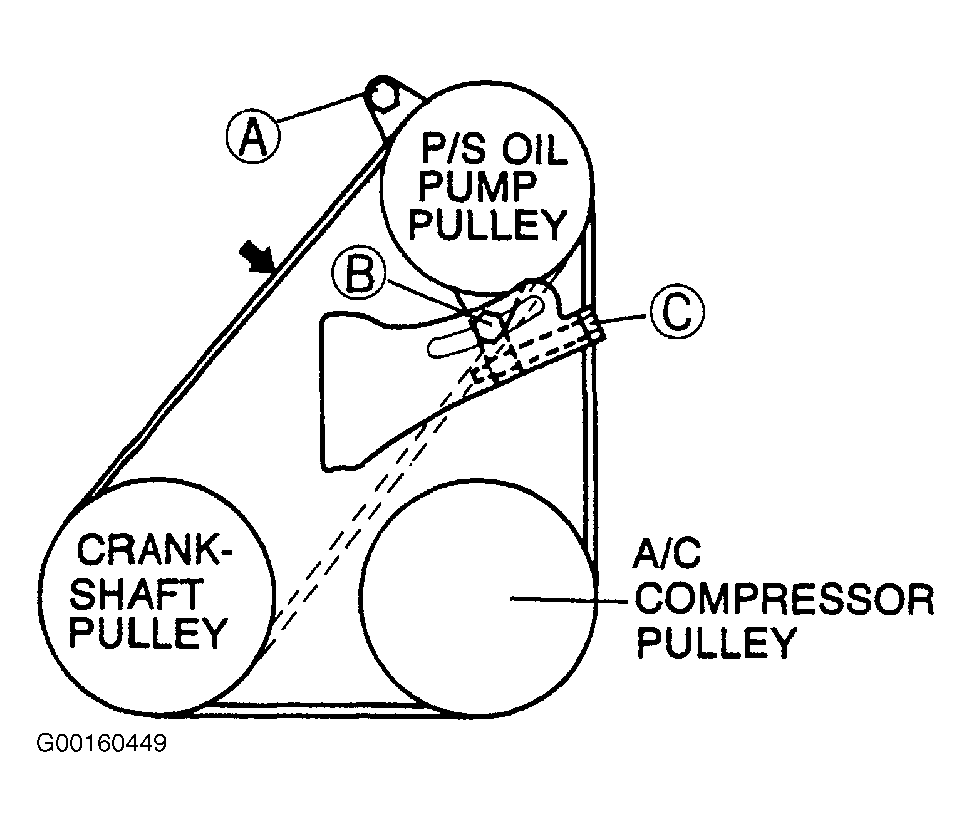

Fig 1: Adjusting A/C Compressor/Power Steering Pump Belt (2.0L)
G00160449Courtesy of MAZDA MOTORS CORP.
