Removal & Installation (626)

Disconnect negative battery cable. Remove meter hood. SeeFig 2 . Remove instrument cluster mounting screws. Disconnect in strument cluster electrical connectors. Remove instrument cluster. To install, reverse removal procedure.

Fig 1: Removing Instrument Cluster (MX-6)

Courtesy of MAZDA MOTORS CORP.

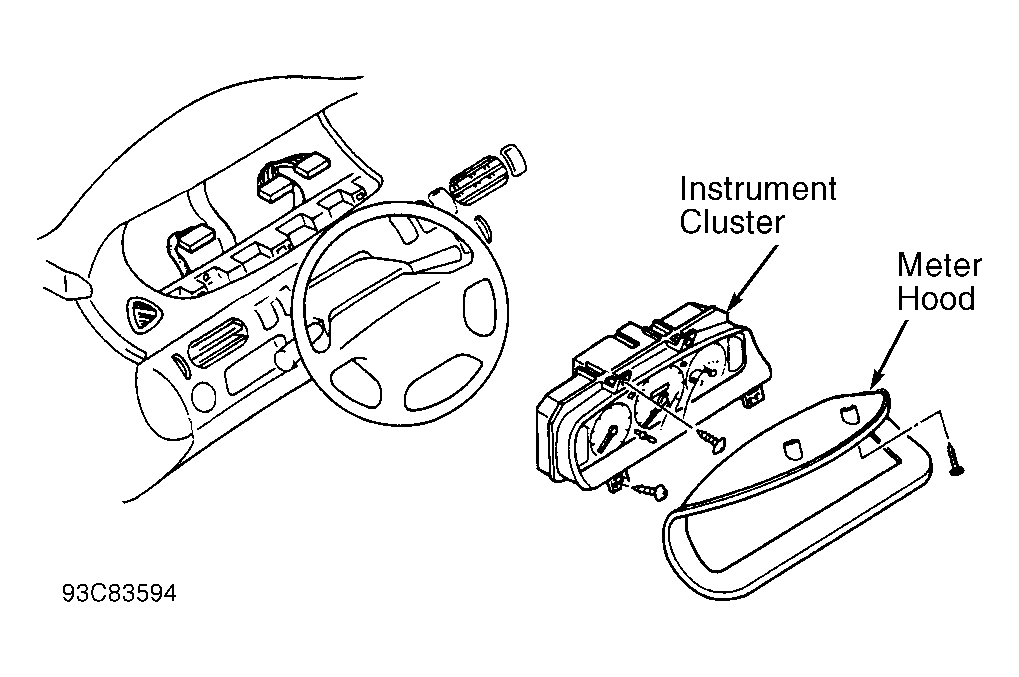

Fig 2: Removing Instrument Cluster (626)

Courtesy of MAZDA MOTORS CORP.

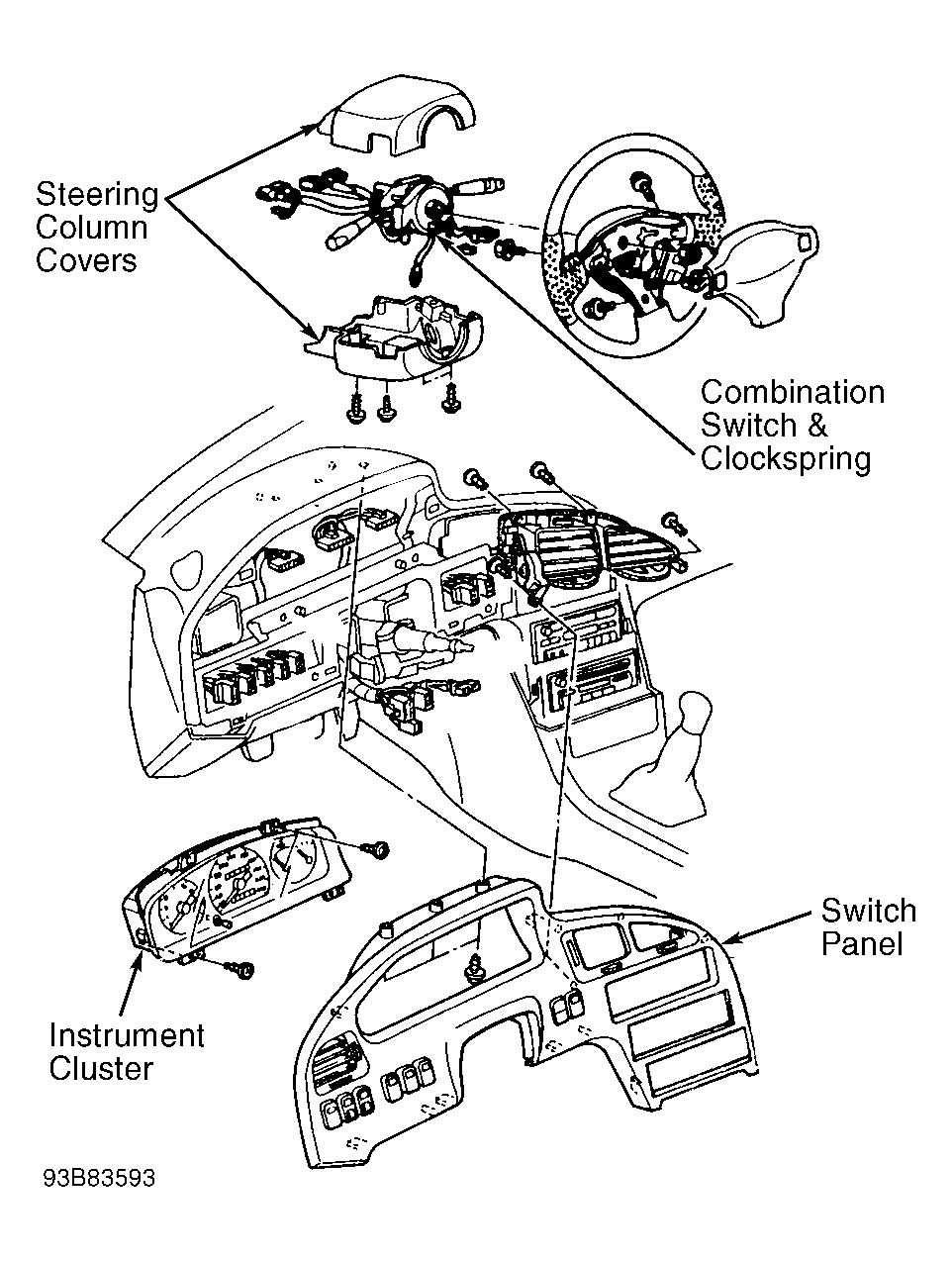

Fig 3: Exploded View Of Instrument Cluster

Courtesy of MAZDA MOTORS CORP.
