Removal & Installation (MX-6 & 626)

Disconnect negative battery cable. ABS relay is located next to engine compartment fuse/relay block. See Fig 1 . Remove ABS relay mounting bolt. Remove ABS relay from vehicle. To install, reverse removal procedure.

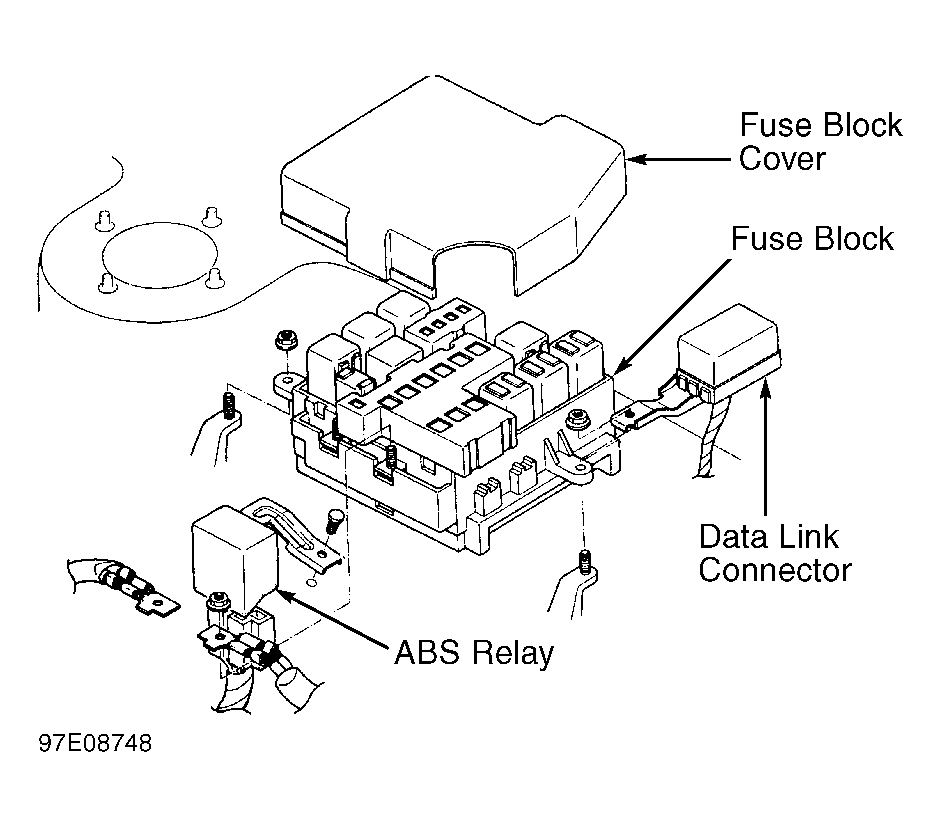

Fig 1: Removing ABS Relay (MX-6 & 626)

Courtesy of MAZDA MOTORS CORP.
