Power Antenna Assembly: Removal

Remove trunk side trim and disconnect negative battery cable. Disconnect power antenna connector and antenna feeder. Remove fasteners and remove antenna assembly. See Fig 1 .

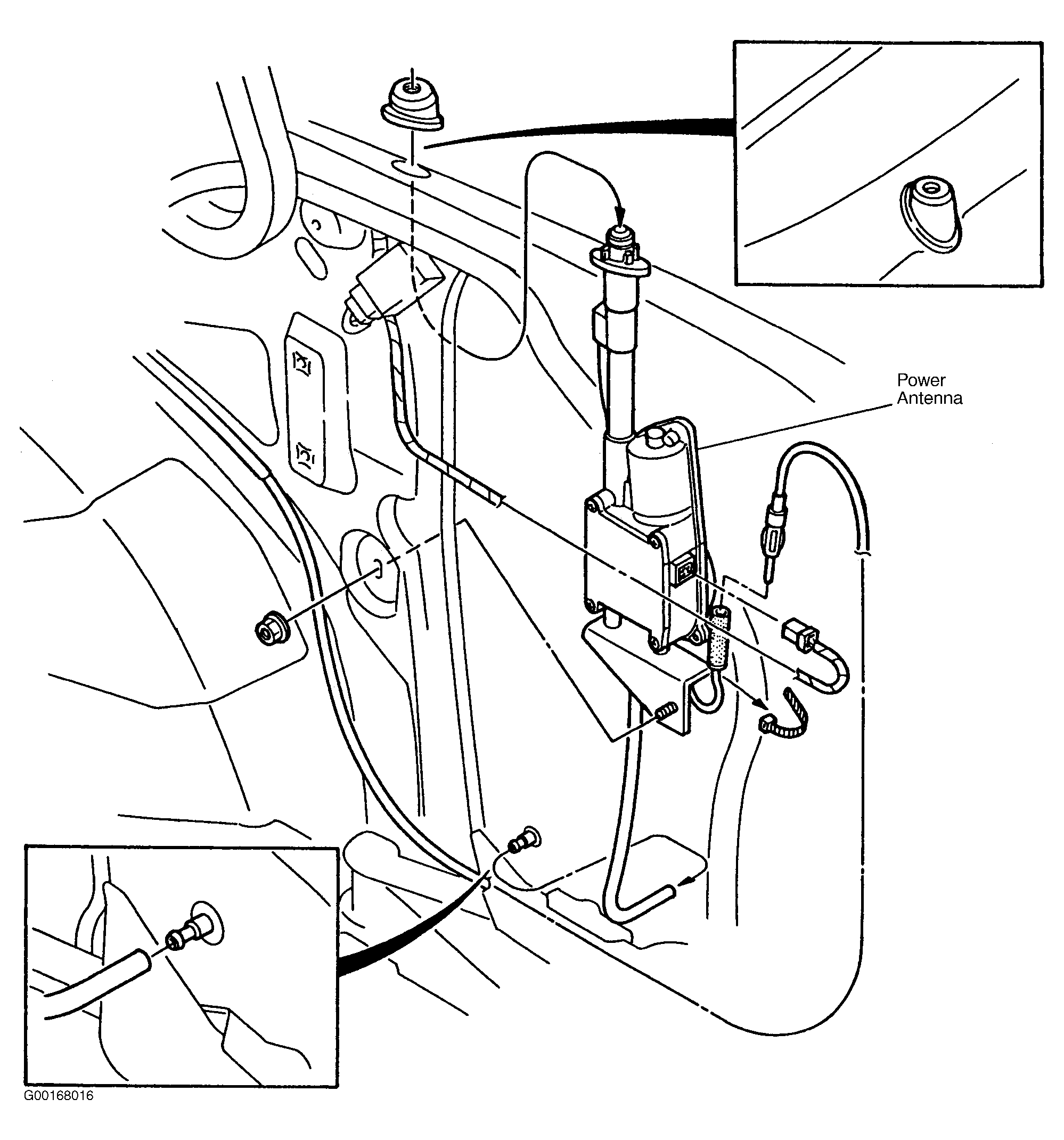

Fig 1: Removing Power Antenna
G00168016Courtesy of MAZDA MOTORS CORP.
