Removal & Installation (B2300, B3000 & B4000)

1. Disconnect negative battery cable. Open ashtray receptacle. SeeFig 1 . Remove 2 screws attaching ashtray receptacle and trim panel. Remove ashtray assembly. Unsnap finish panel. Press hazard switch on steering column. Remove finish panel. Remove instrument cluster mounting screws.
2. On A/T models, remove 2 screws securing PRNDD21 indicator to cluster. Slide PRNDD21 indicator down and out of cluster. Leave PRNDD21 indicator connections undisturbed. On all models, disconnect wiring harness connectors and speedometer cable. Remove instrument cluster. To install, reverse removal procedure.

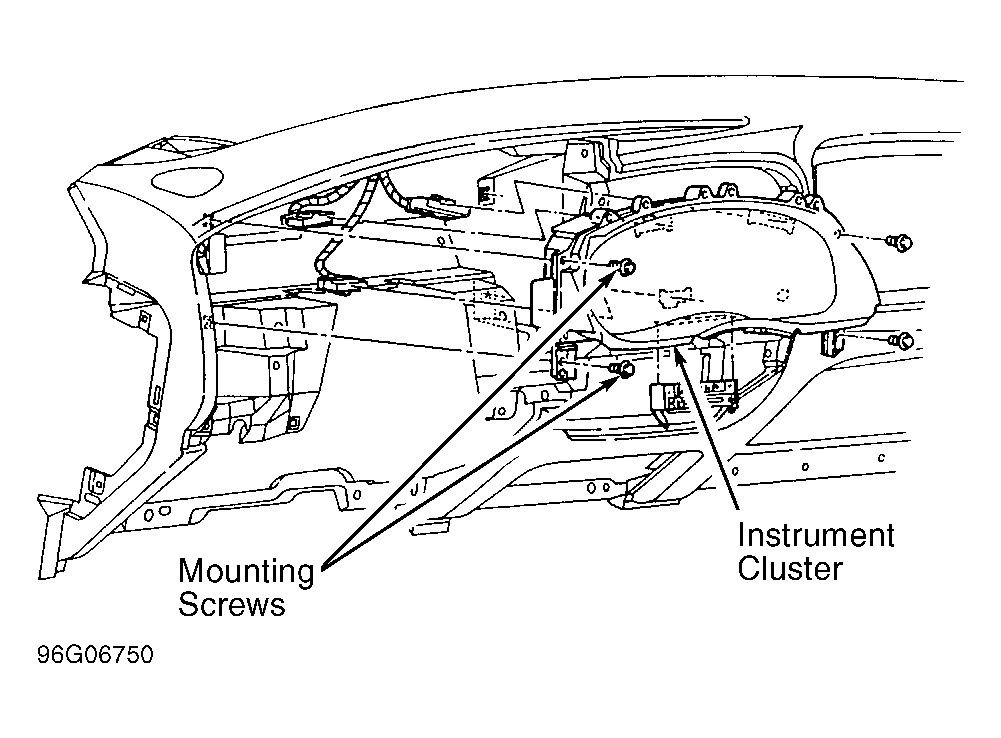

Fig 1: Removing Instrument Cluster

Courtesy of MAZDA MOTORS CORP.

Fig 2: Exploded View Of Instrument Cluster

Courtesy of MAZDA MOTORS CORP.
