DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365: Ignition Coil Circuit Malfunction

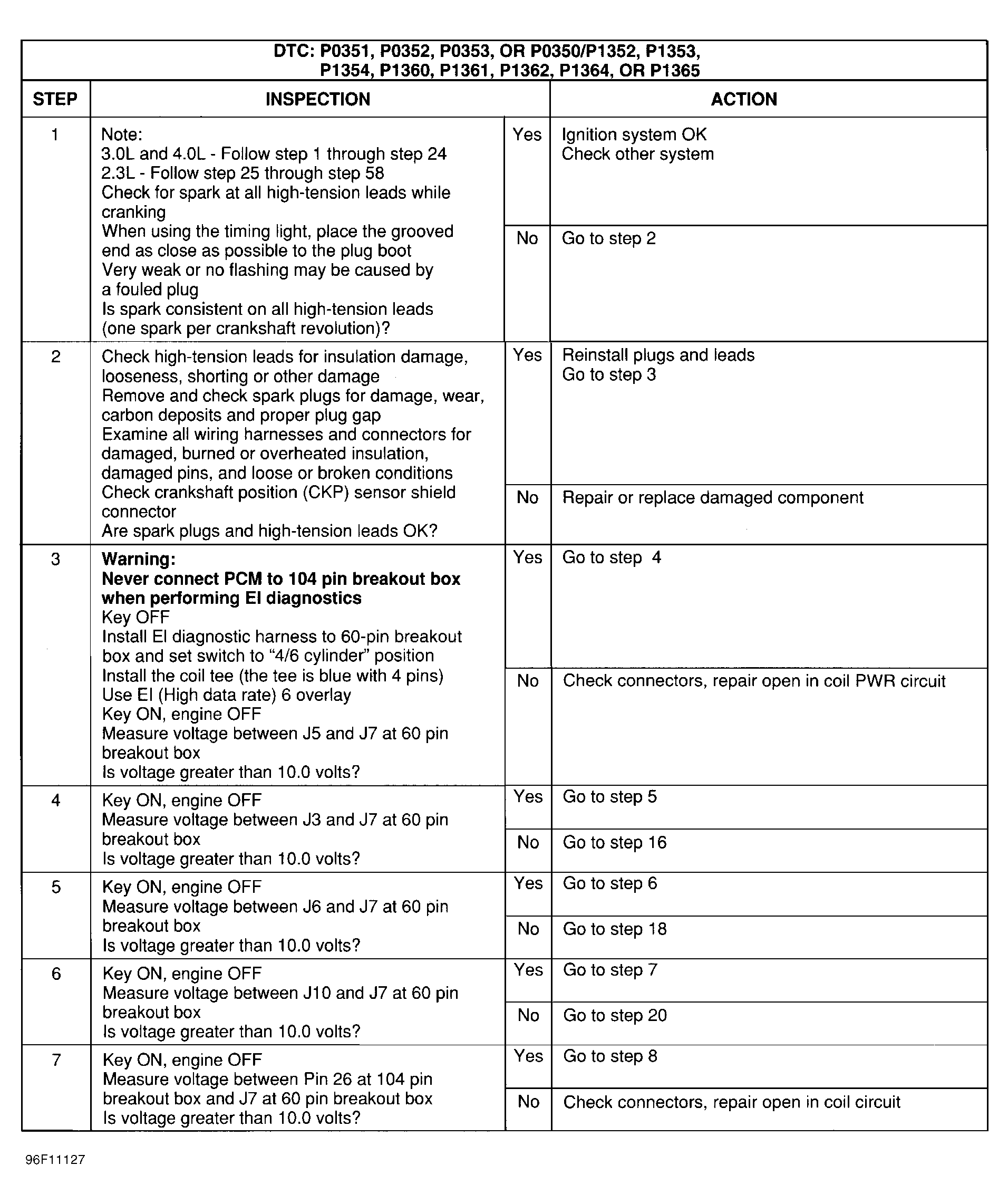

Fig 1: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (1 OF 7)

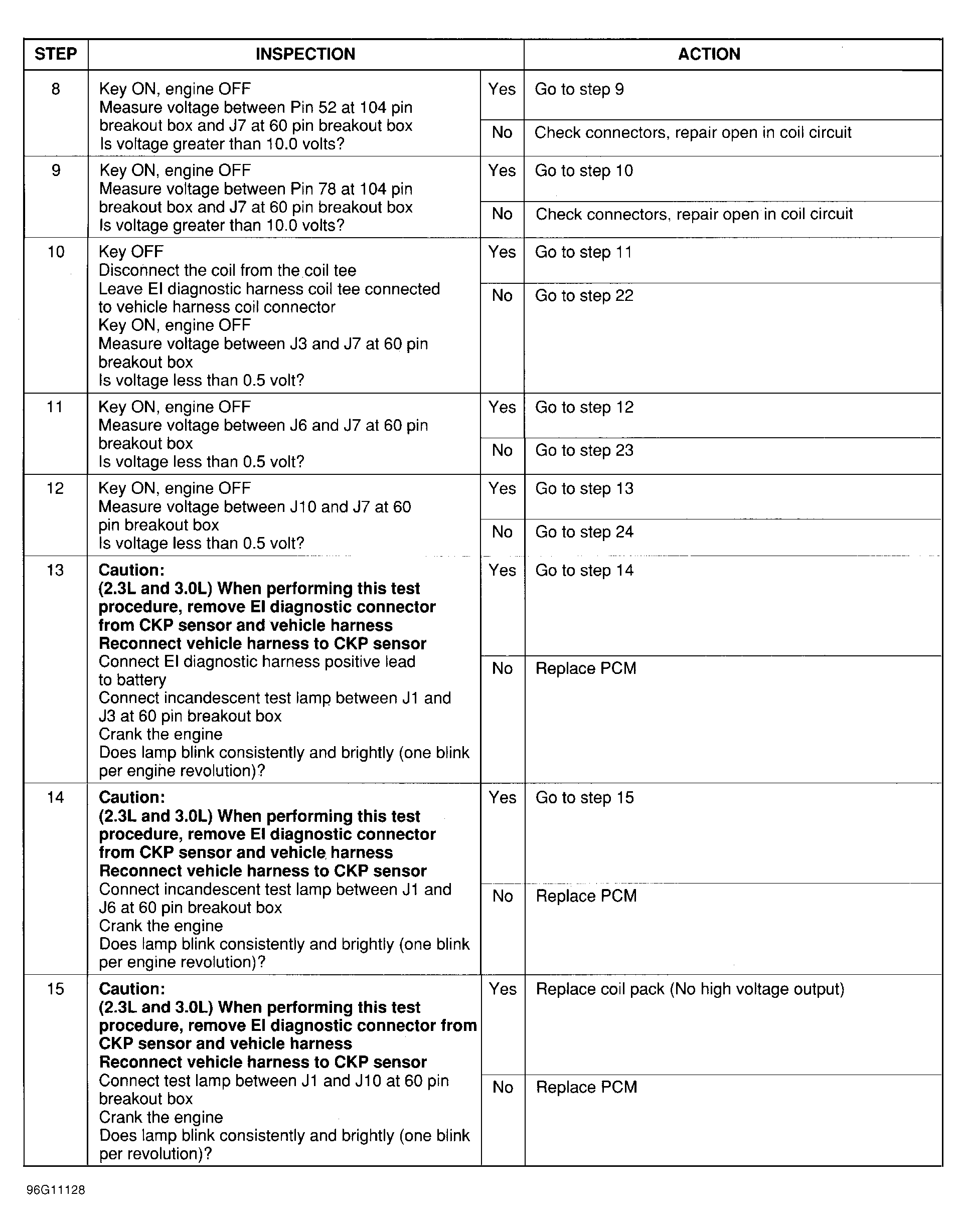

Fig 2: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (2 OF 7)

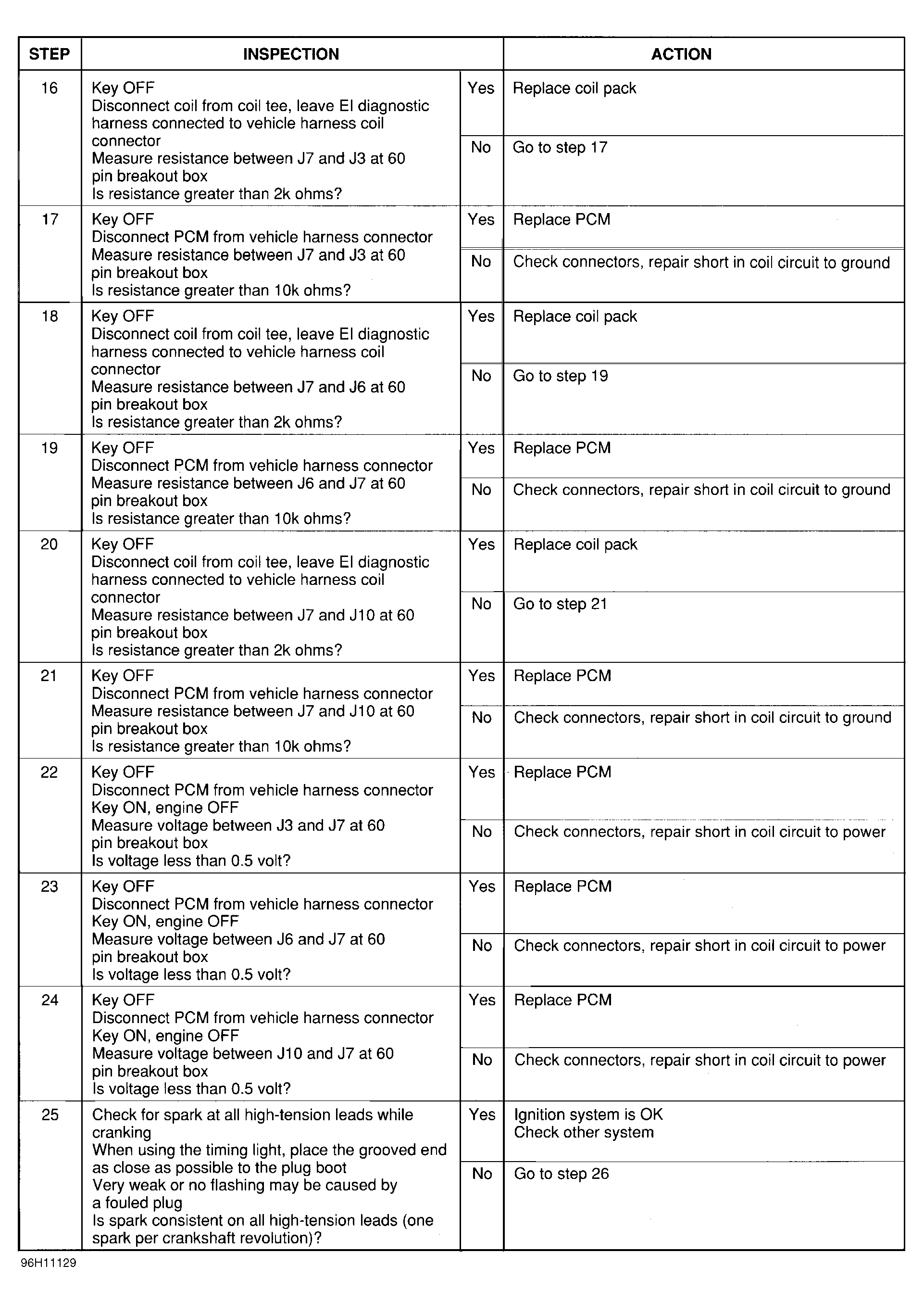

Fig 3: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (3 OF 7)

Fig 4: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (4 OF 7)

Fig 5: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (5 OF 7)

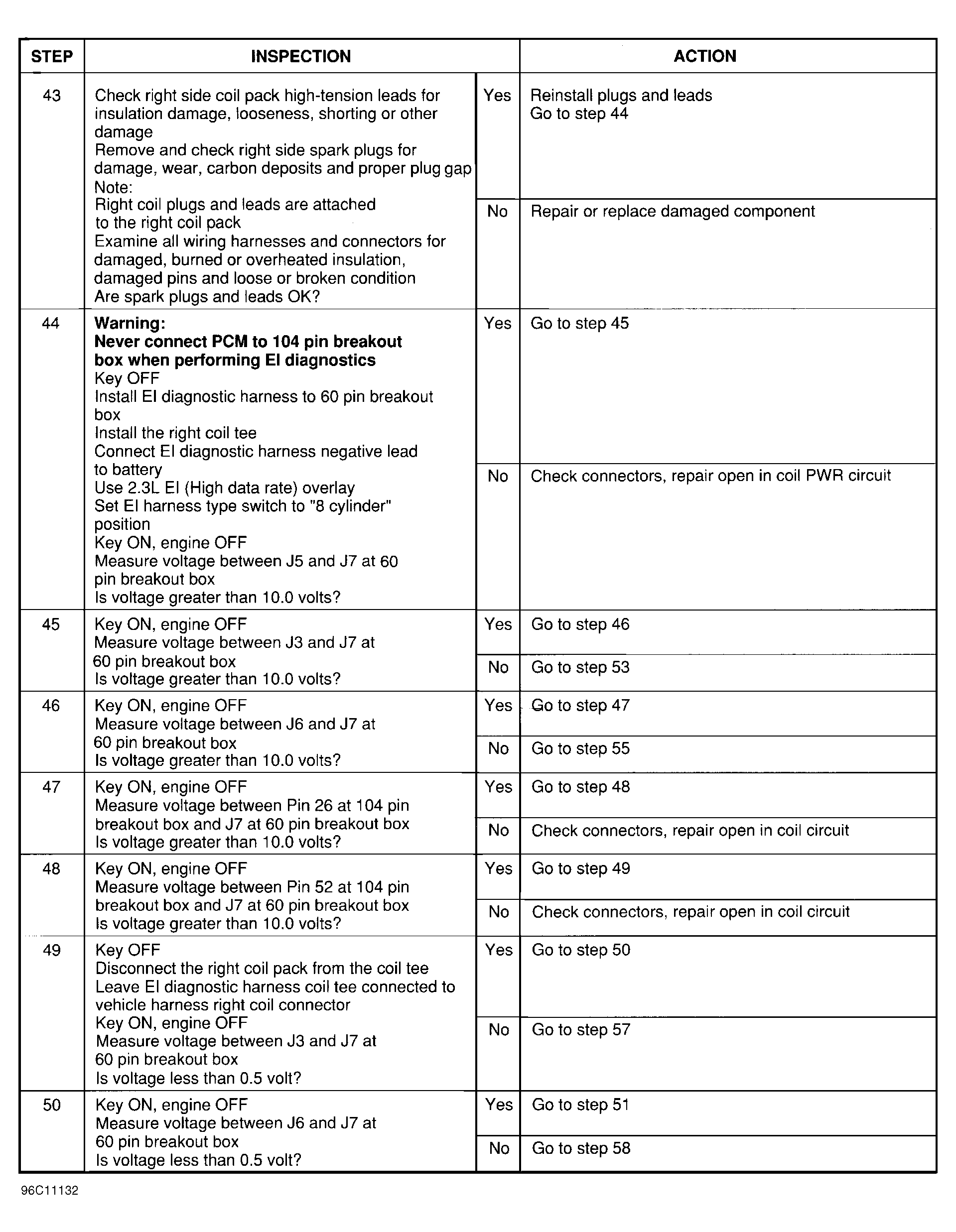

Fig 6: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (6 OF 7)

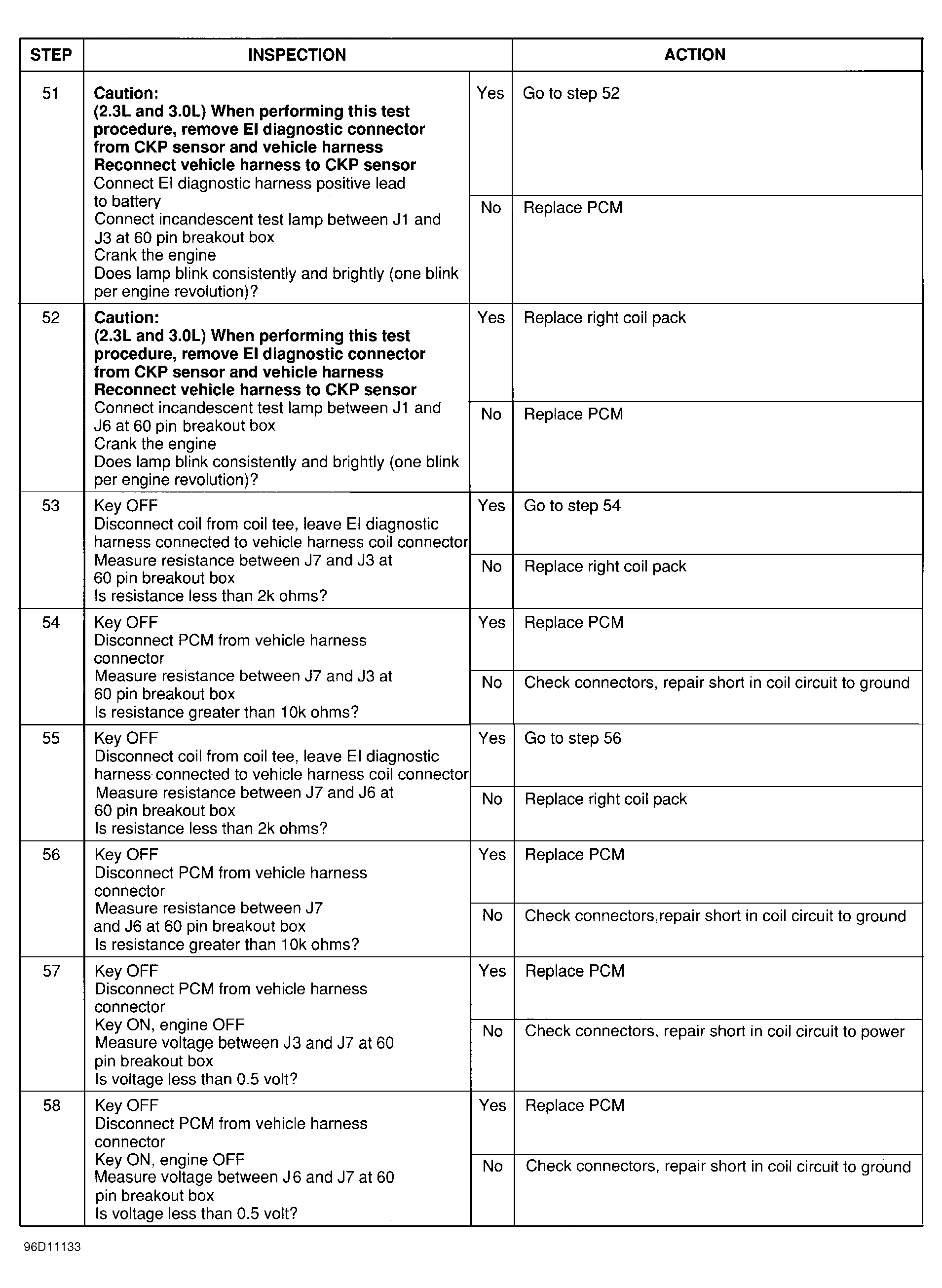

Fig 7: DTC P0350, P0351, P0352, P0353, P1352, P1353, P1354, P1360, P1361, P1362, P1364 & P1365 (7 OF 7)
