Codes P0731, P0732, P0733, P0734, P0741, P0743, P0746, P0750, P0751, P0755, P0756, P0760, P0761, P0781, P0782, P0783, P1746, P1747, P1749, P1751, P1754, 1756 & P1761: Transmission Solenoid Circuit Malfunction
Codes P0731, P0732, P0733, P0734, P0741, P0743, P0746, P0750, P0751, P0755, P0756, P0760, P0761, P0781, P0782, P0783, P1746, P1747, P1749, P1751, P1754, 1756 & P1761: Transmission Solenoid Circuit Malfunction

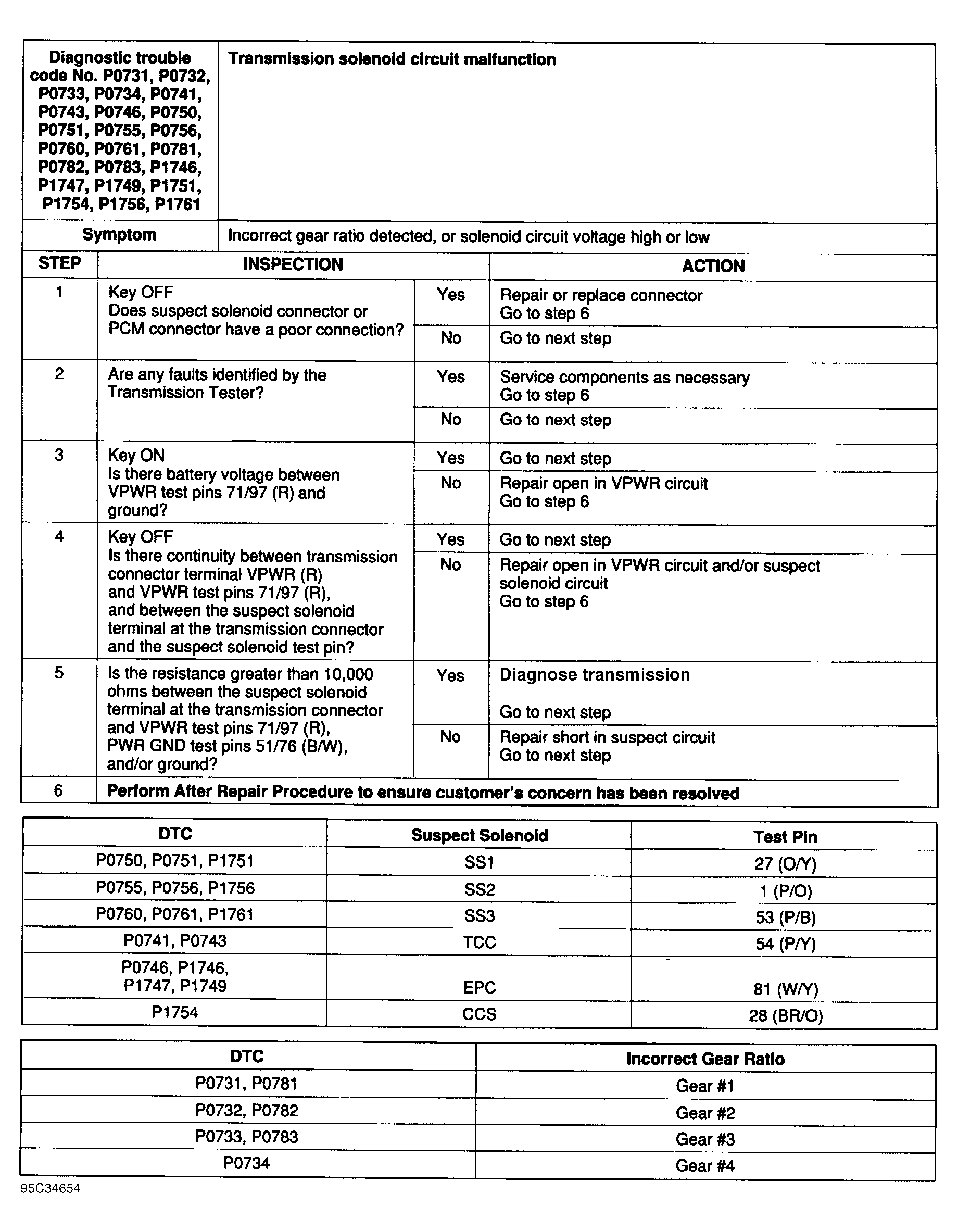

Fig 1: Trouble Codes No. P0731, P0732, P0733, P0734, P0741, P0743, P0746, P0750, P0751, P0755, P0756, P0760, P0761, P0781, P0782, P0783, P1746, P1747, P1749, P1751, P1754, 1756 & P1761 Transmission Solenoid Circuit Malfunction

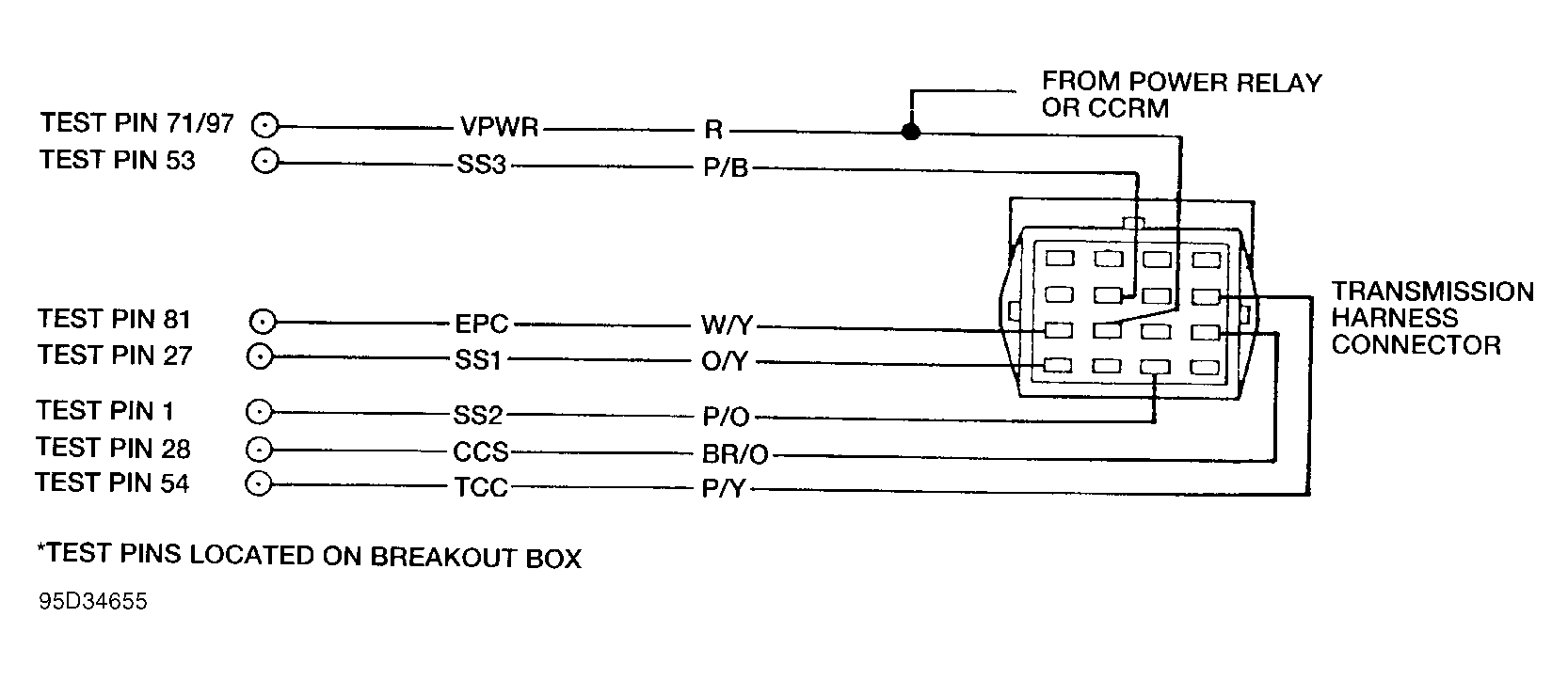

Fig 2: Trouble Codes No. P0731, P0732, P0733, P0734, P0741, P0743, P0746, P0750, P0751, P0755, P0756, P0760, P0761, P0781, P0782, P0783, P1746, P1747, P1749, P1751, P1754, 1756 & P1761 Transmission Solenoid Circuit Diagram
