Codes P0131, P0132, P0133, P0135, P0136, P0138, P0141, P0151, P0152, P0153, P0155, P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152: Heated Oxygen Sensor Circuit Malfunction

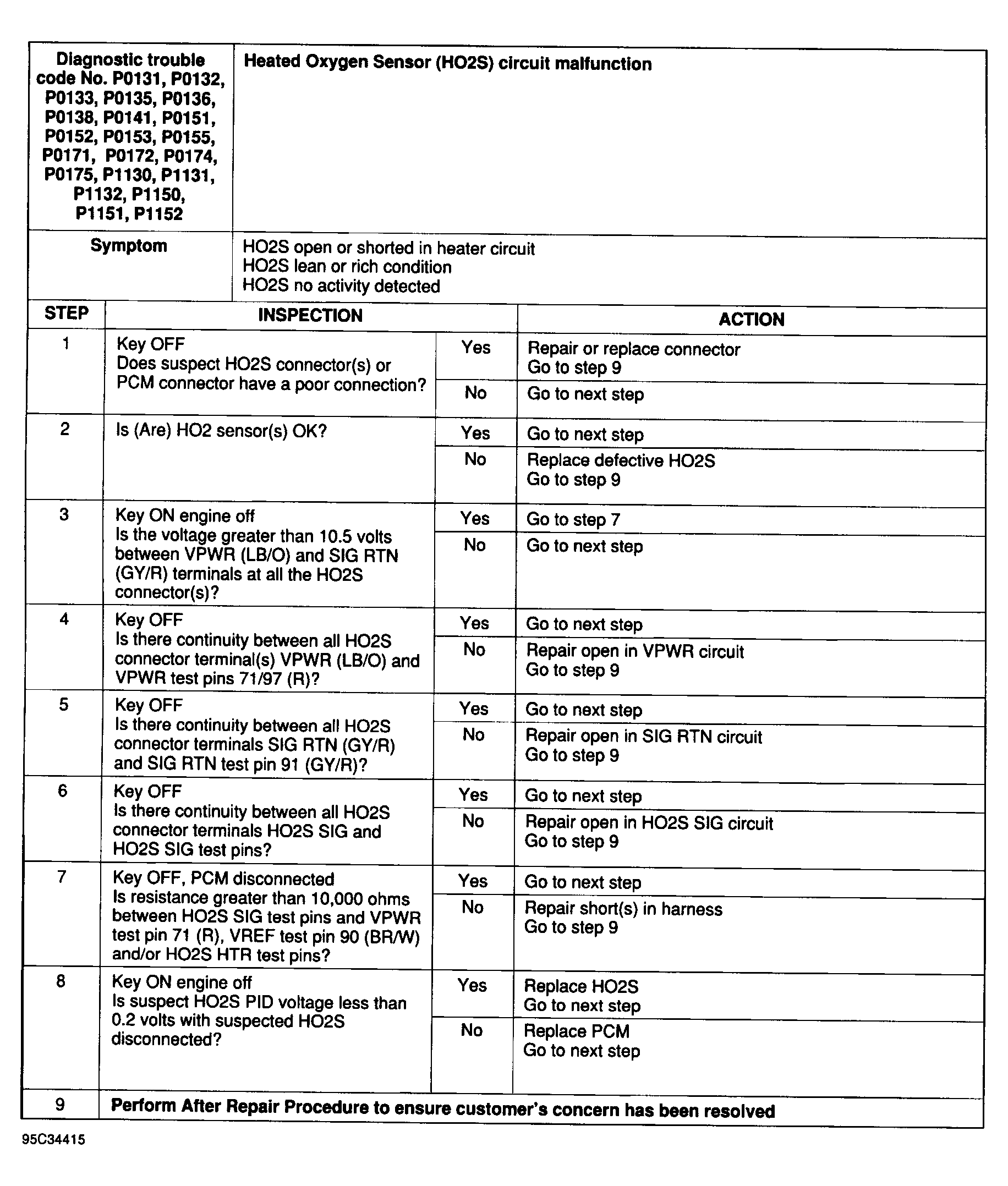

Fig 1: Trouble Codes No. P0131, P0132, P0133, P0135, P0136, P0138, P0141, P0151, P0152, P0153, P0155, P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152 Heated Oxygen Sensor Circuit Malfunction
G95C34415

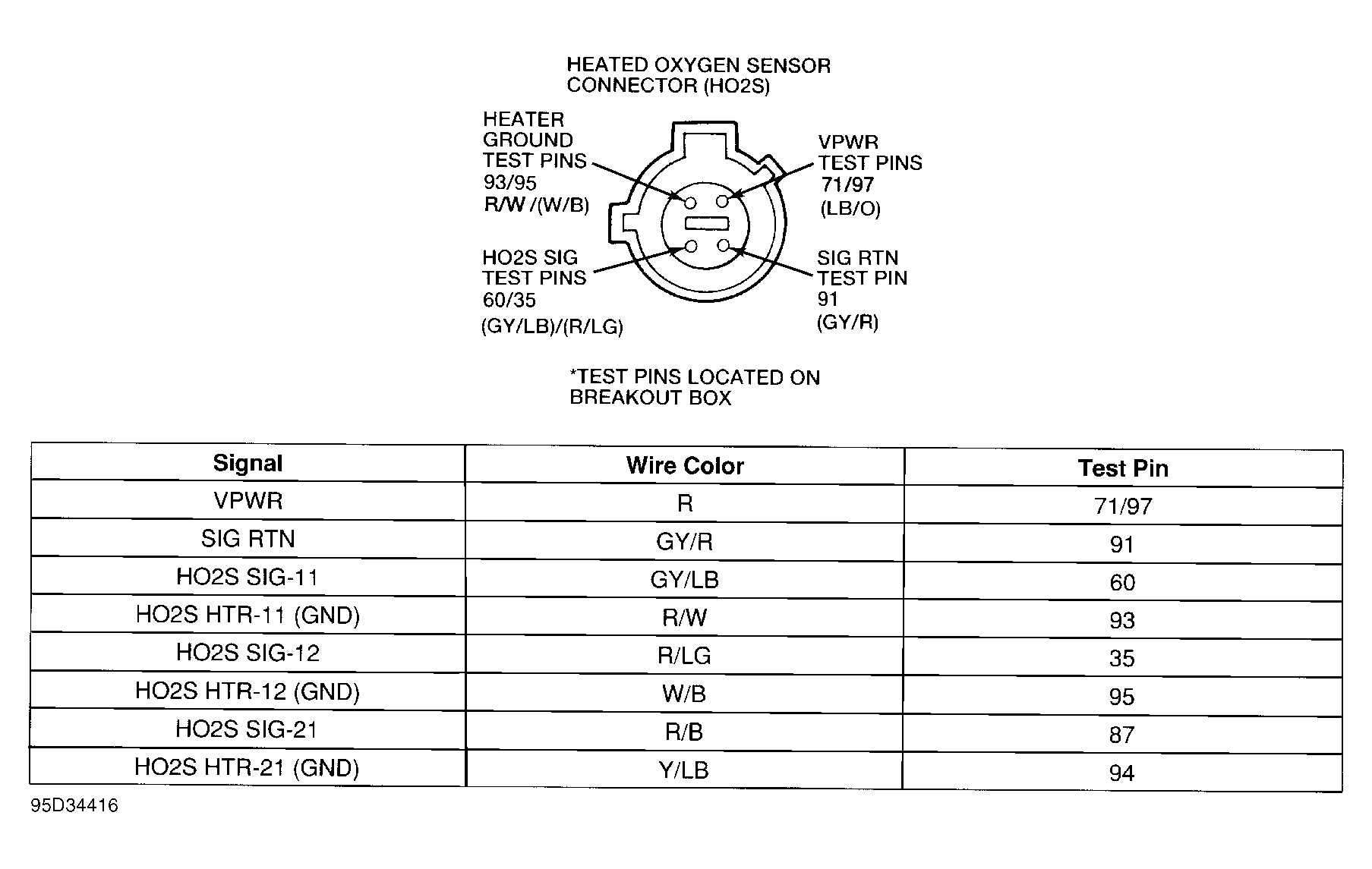

Fig 2: Trouble Codes No. P0131, P0132, P0133, P0135, P0136, P0138, P0141, P0151, P0152, P0153, P0155, P0171, P0172, P0174, P0175, P1130, P1131, P1132, P1150, P1151 & P1152 Heated Oxygen Sensor (HO2S) Circuit Diagram
G95D34416
