Test Procedure

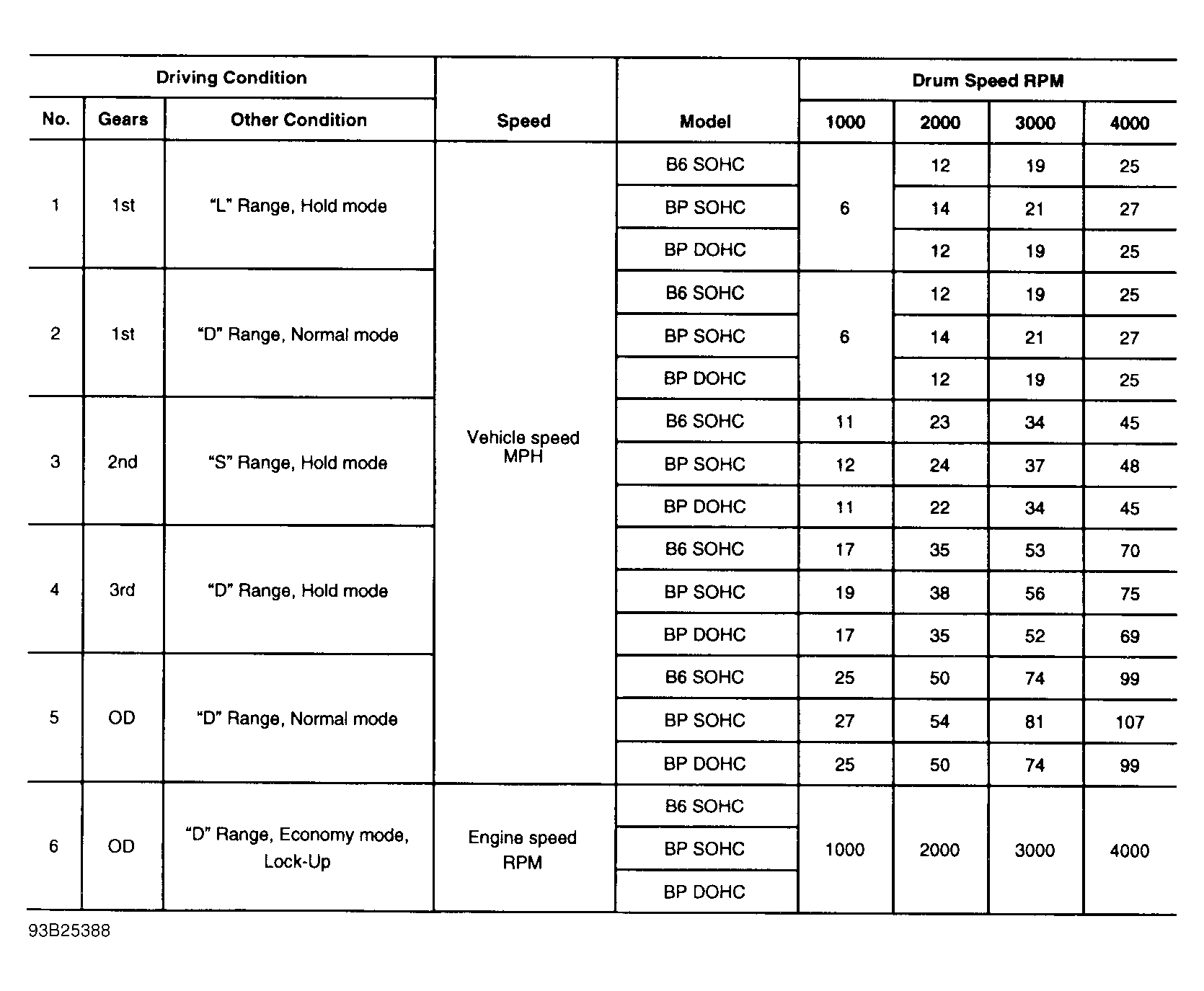

Drive vehicle in each gear as indicated in appropriate chart. See Figure . Verify that vehicle speed or engine speed is above or below turbine speed specifications. Refer to the SLIPPAGE TEST EVALUATION table for possible cause of slippage.
SLIPPAGE TEST EVALUATION
| Speed Too Low | Possible Cause |
|---|---|
| No. 1 Condition | Low-Reverse Brake |
| No. 2 Condition | One-Way Clutch |
| No. 3 Condition | 2-4 Brake Band |
| No. 4 Condition | Coasting Clutch |
| No. 5 Condition | 3-4 Clutch |
| No. 1-To-5 Condition | Forward Clutch |
| No. 6 Condition | Lock-Up Piston (In Torque Converter) |
