Component Operation (Protege & 323 Fa4A-El)

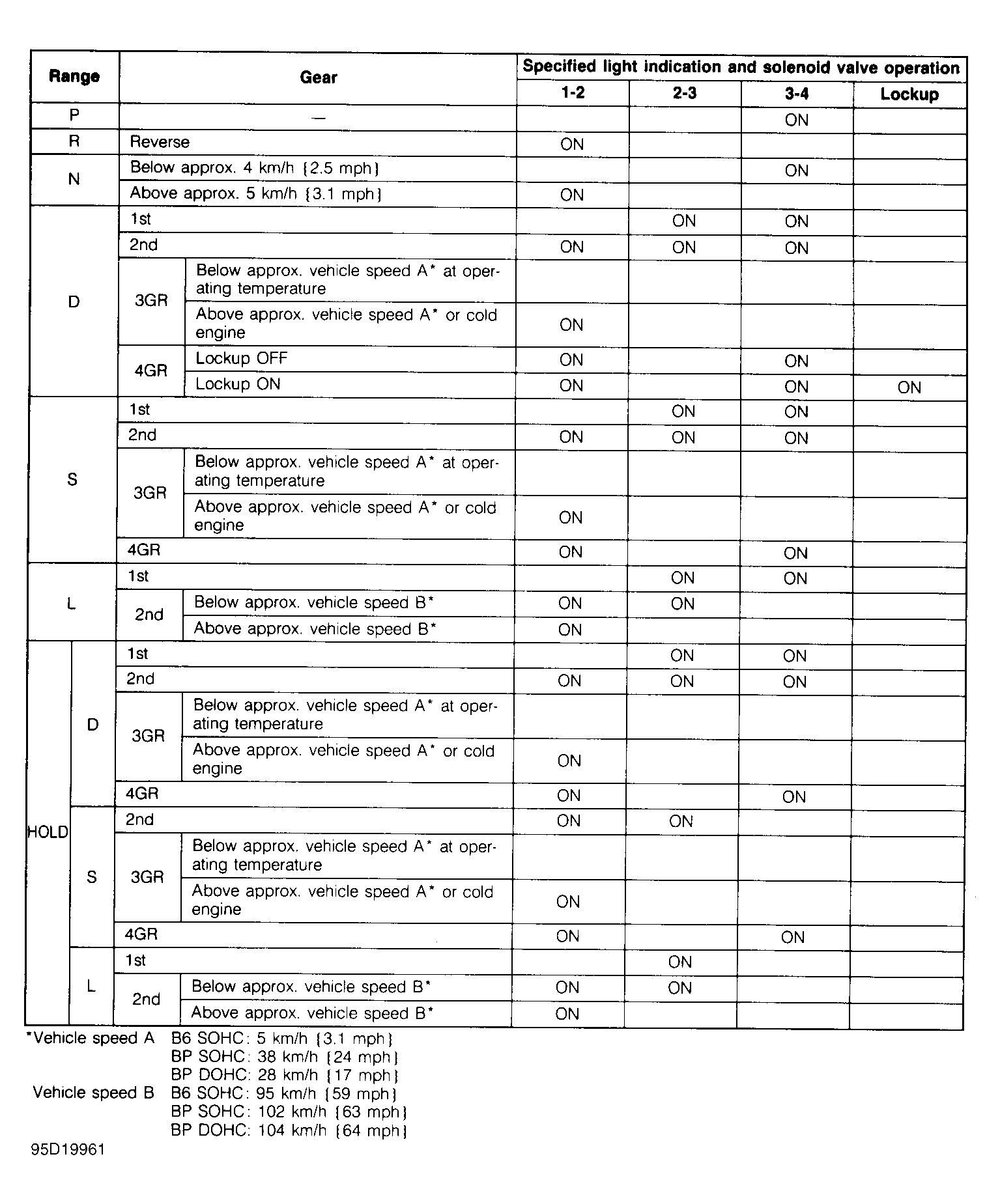

Fig 1: Solenoid Valve Operation Chart (Protege & 323 FA4A-EL)

G95D19961

Courtesy of MAZDA MOTORS CORP.
