Light & Digital Display (Protege & 323)

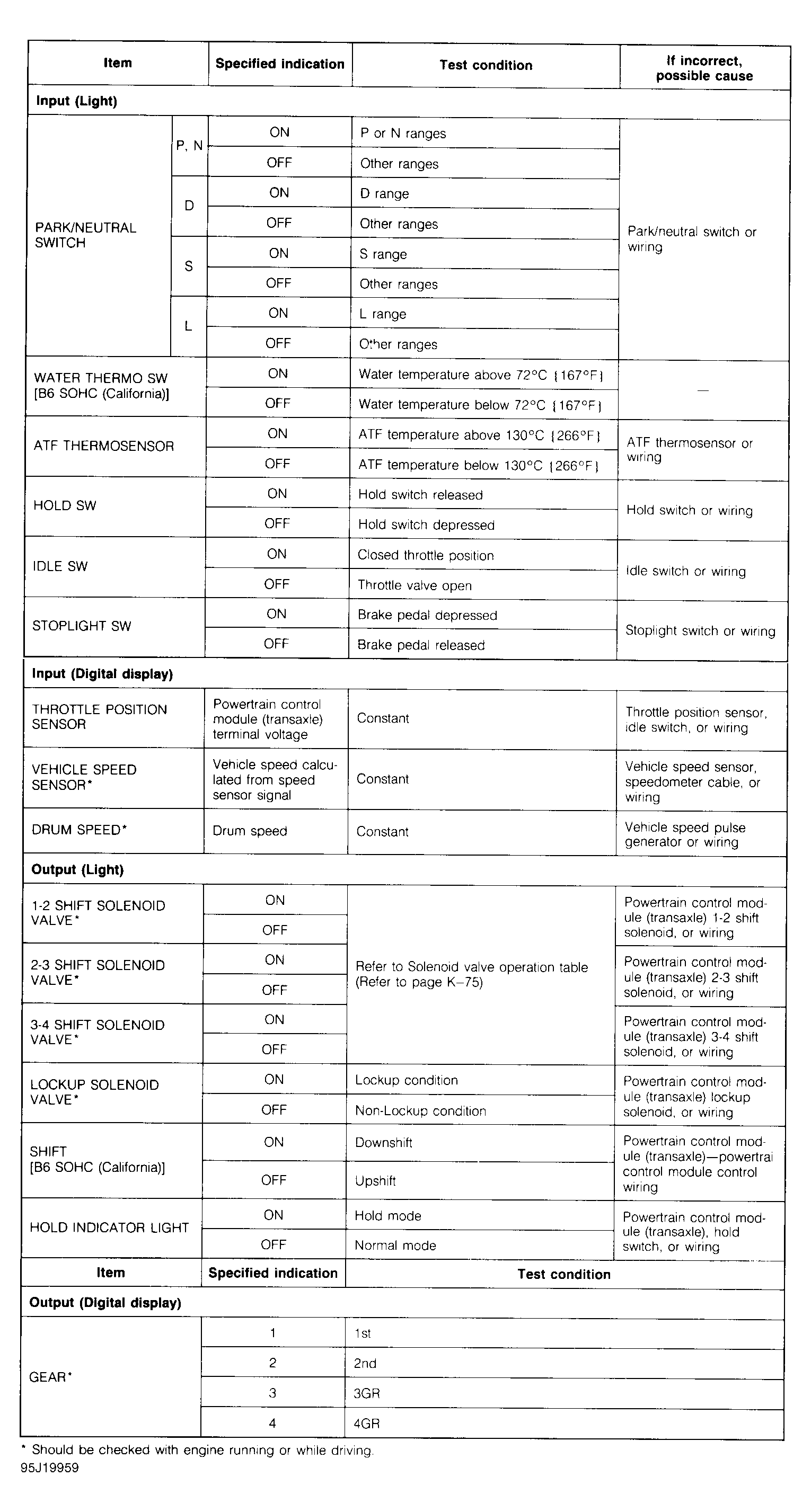

Fig 1: Light & Digital Display Indication (1993-94 Protege & 323 FA4A-EL)

G95J19959

Courtesy of MAZDA MOTORS CORP.
