Code 63 - Lockup Solenoid Valve

Fig 1: Code 63 (1 of 2)

G95D19904

Courtesy of MAZDA MOTORS CORP.

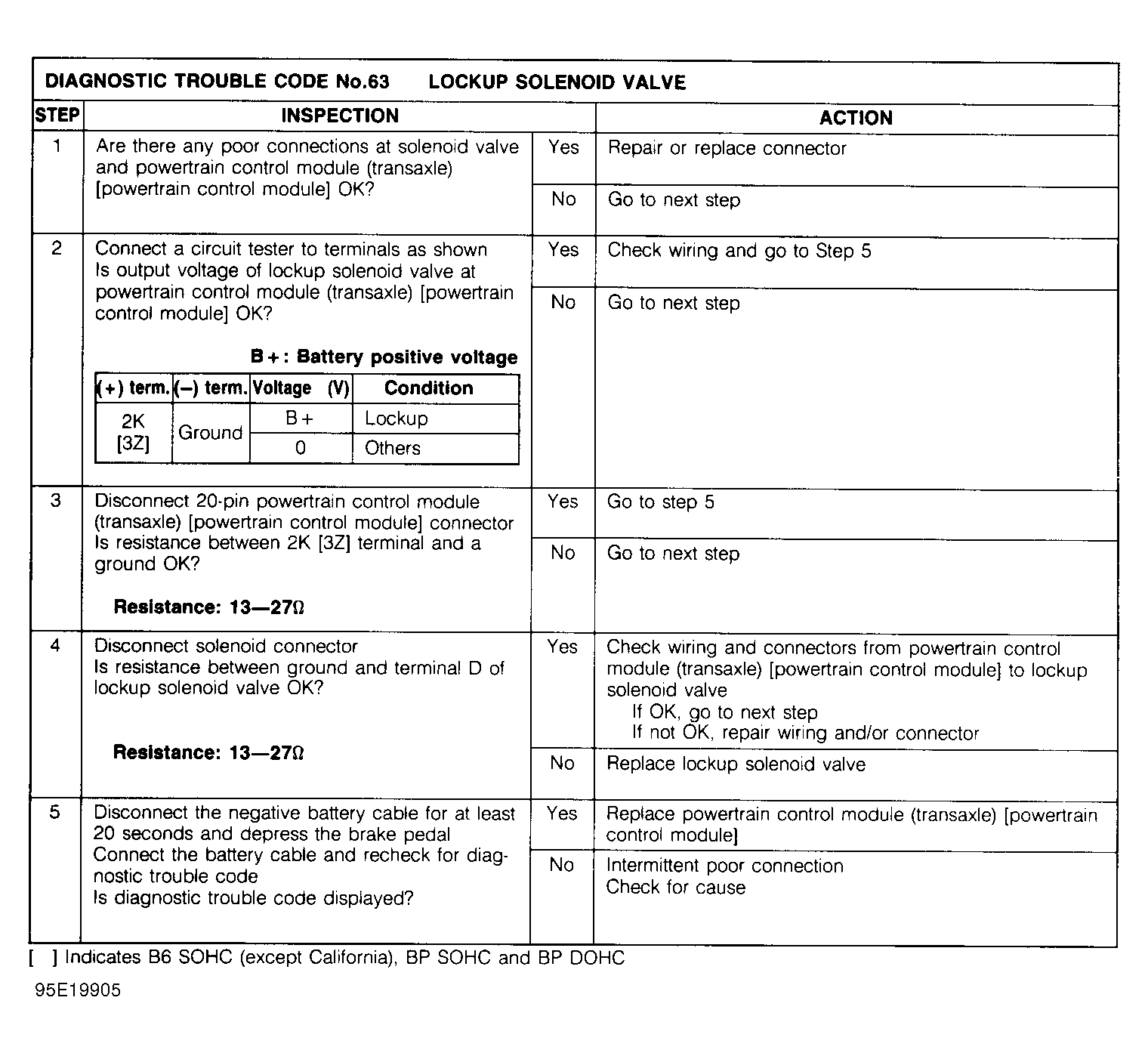

Fig 2: Code 63 (2 of 2)

G95E19905

Courtesy of MAZDA MOTORS CORP.
