Code 61 - 2-3 Shift Solenoid Valve

Fig 1: Code 61 (1 of 2)

G95J19900

Courtesy of MAZDA MOTORS CORP.

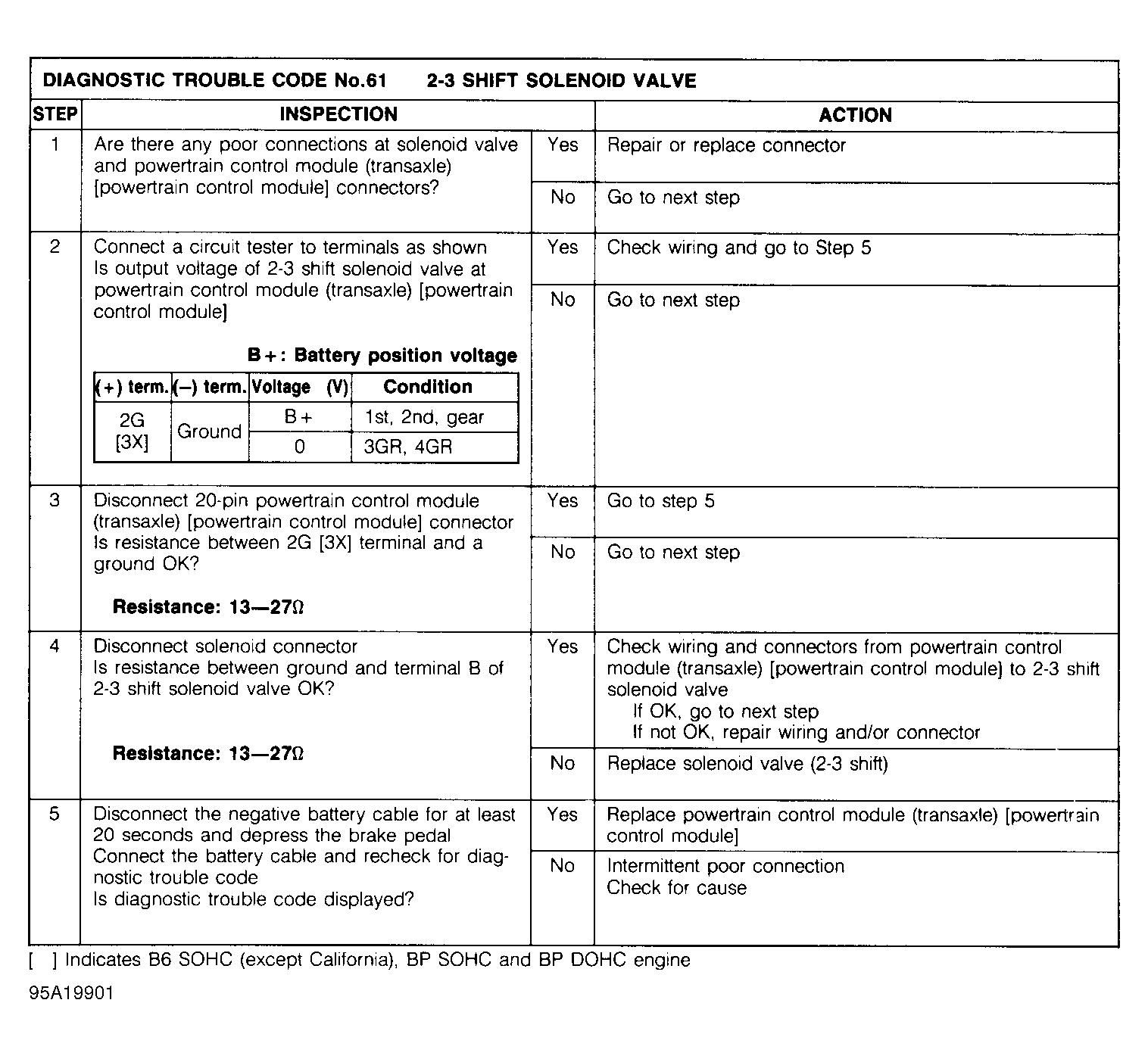

Fig 2: Code 61 (2 of 2)

G95A19901

Courtesy of MAZDA MOTORS CORP.
