Code 60 - 1-2 Shift Solenoid Valve

Fig 1: Code 60 (1 of 2)

G95F19898

Courtesy of MAZDA MOTORS CORP.

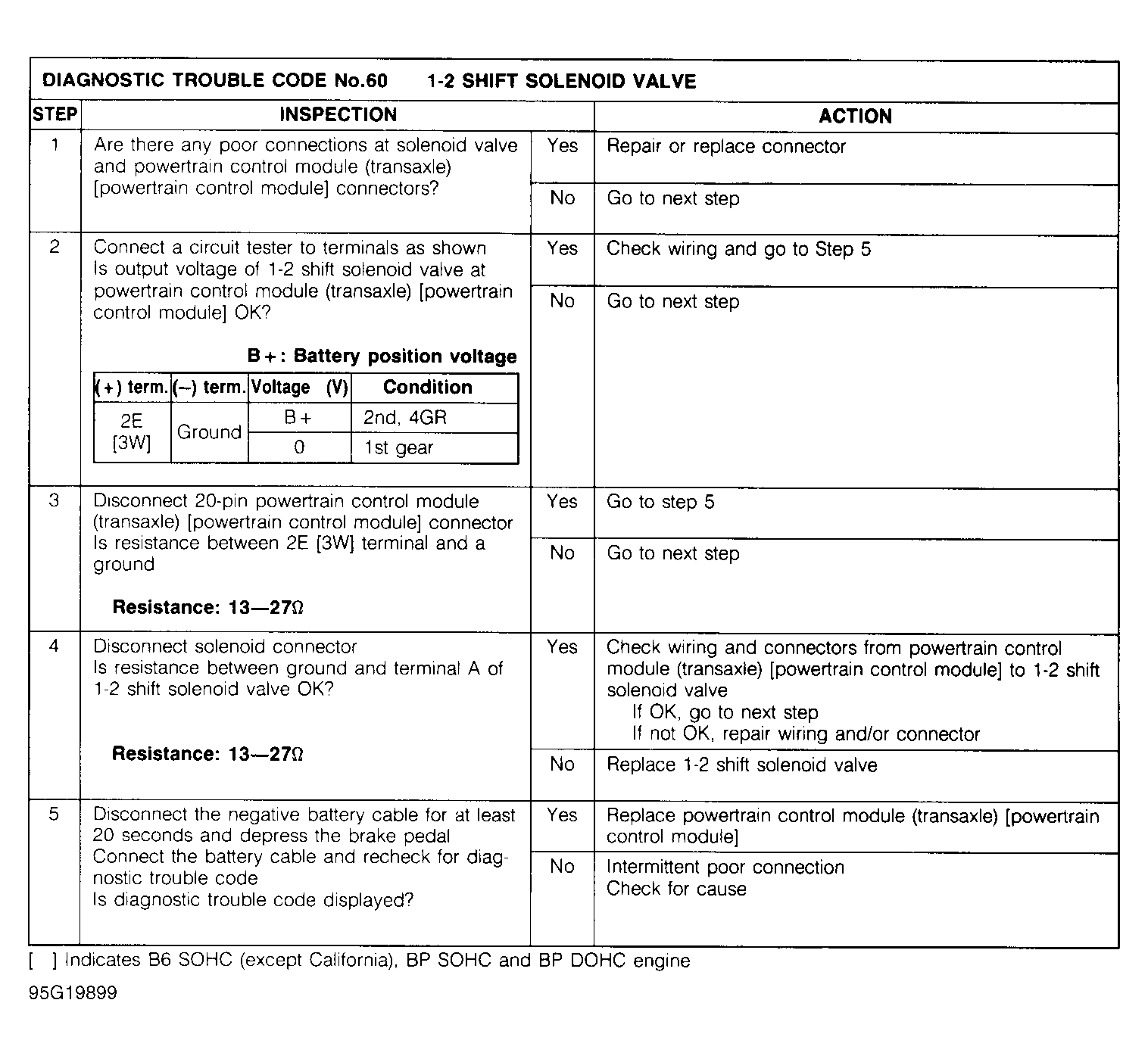

Fig 2: Code 60 (2 of 2)

G95G19899

Courtesy of MAZDA MOTORS CORP.
