Code 57 - Shift Signal

Fig 1: Code 57 (1 of 2)

G95D19896

Courtesy of MAZDA MOTORS CORP.

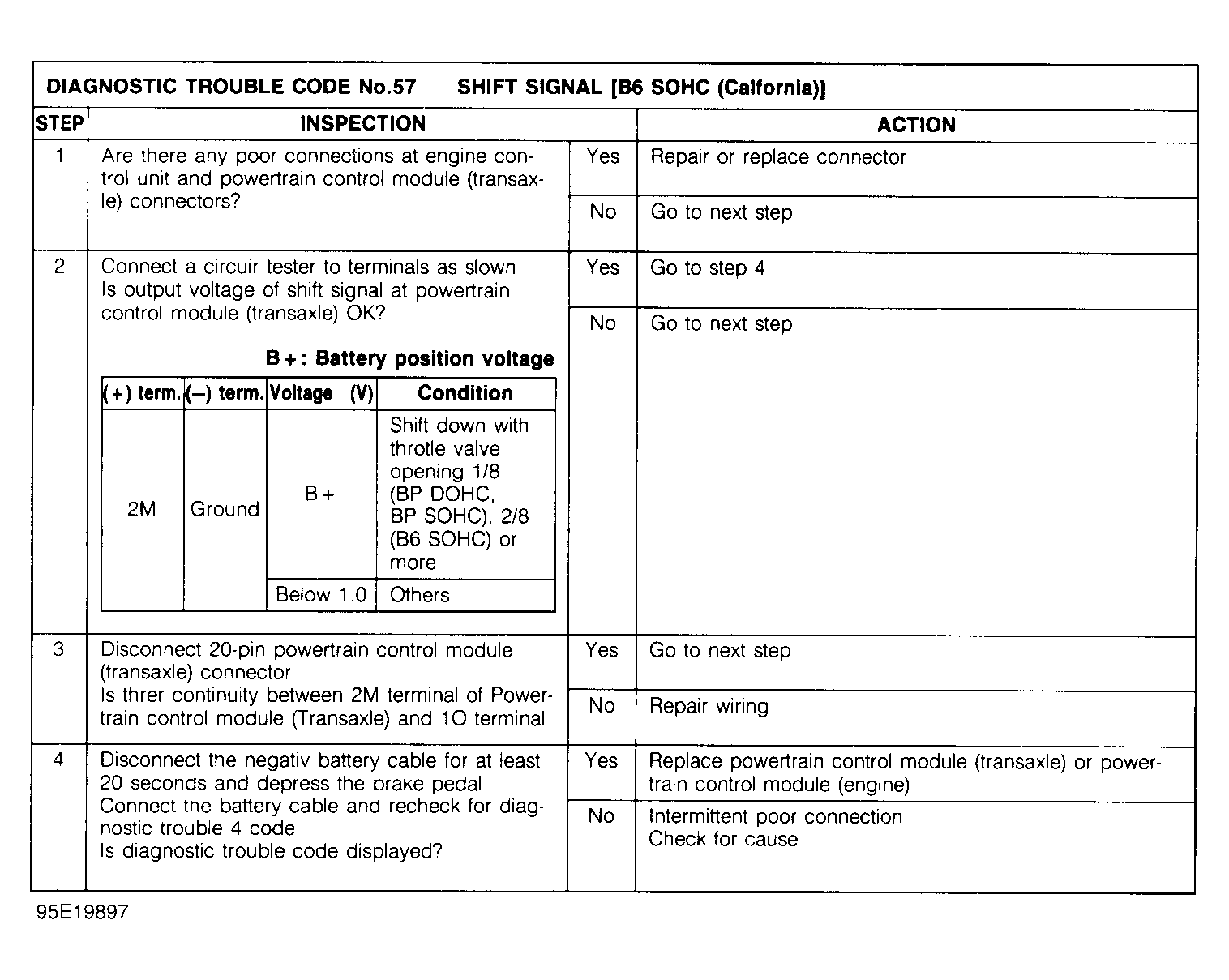

Fig 2: Code 57 (2 of 2)

G95E19897

Courtesy of MAZDA MOTORS CORP.
