Removal & Installation

  1. Disconnect negative battery cable before removal of passive shoulder belt and driver side seat.
  2. On Protege remove rear seat cushion, Interior Mounted highmount stoplight, rear package trim and rear seat belt.
  3. On Hatchback remove rear seat cushion, trunk end trim, trunk side cover, trunk side trim and rear seat belt.
  4. To install reverse removal procedure.

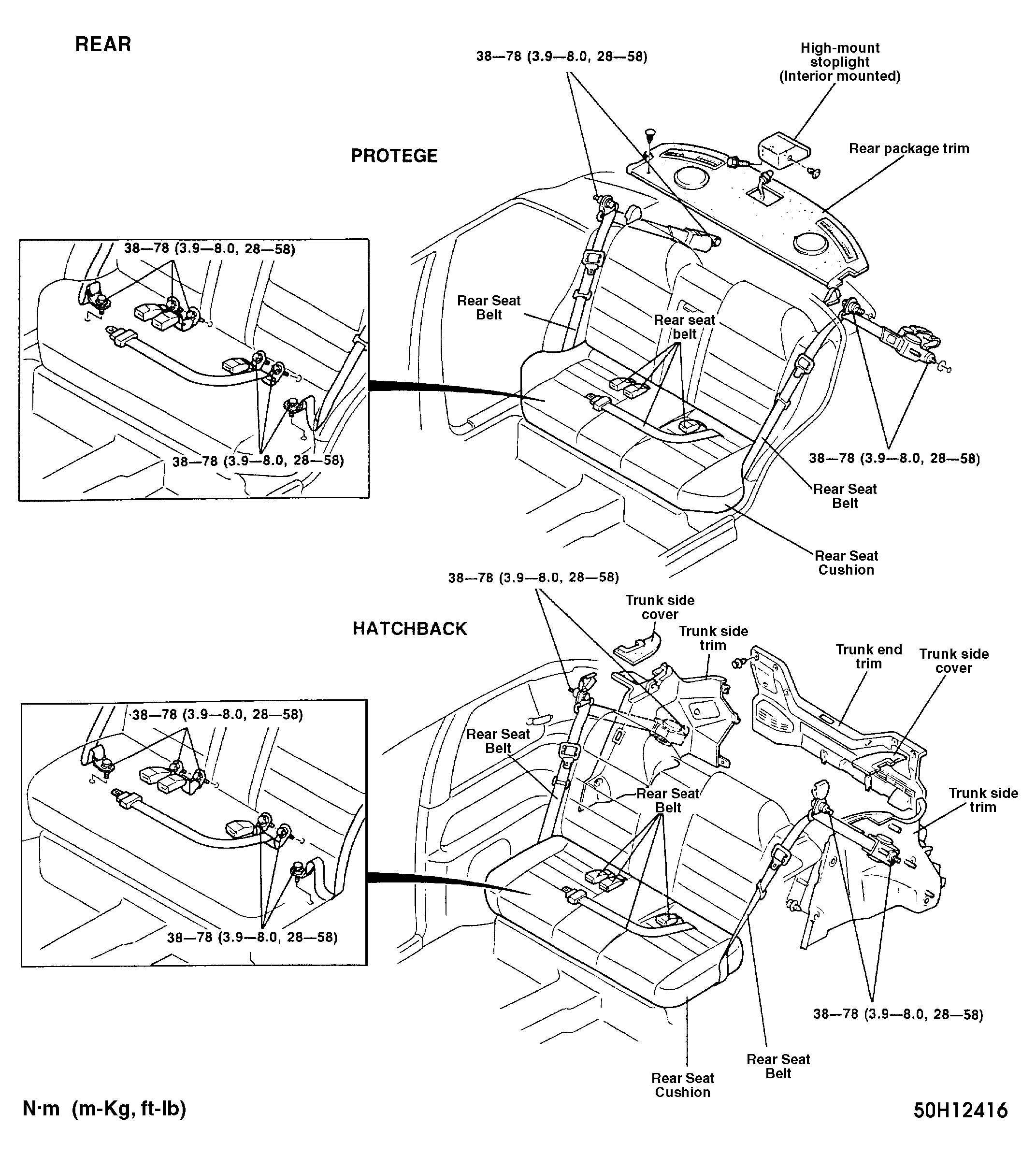

Fig 1: Exploded View of Rear Seat Belt
G50H12416

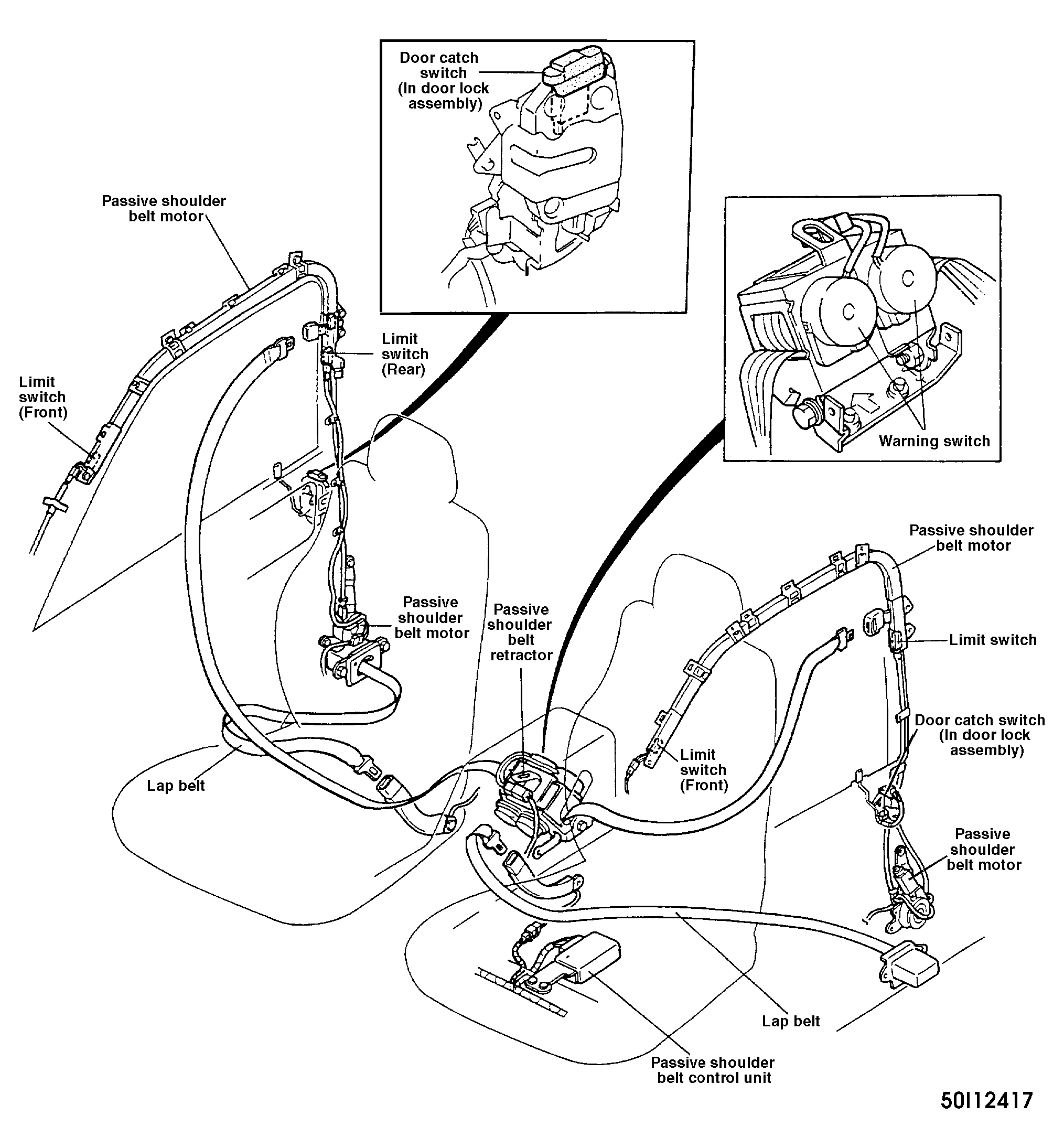

Fig 2: Structural View of Passive Shoulder Belt System
G50I12417
