Restraints
>>
Seat Belts - Automatic
>>
Diagnosis
>>
Passive Shoulder Belt Stays In Forward Position (One Side)
Passive Shoulder Belt Stays In Forward Position (One Side)

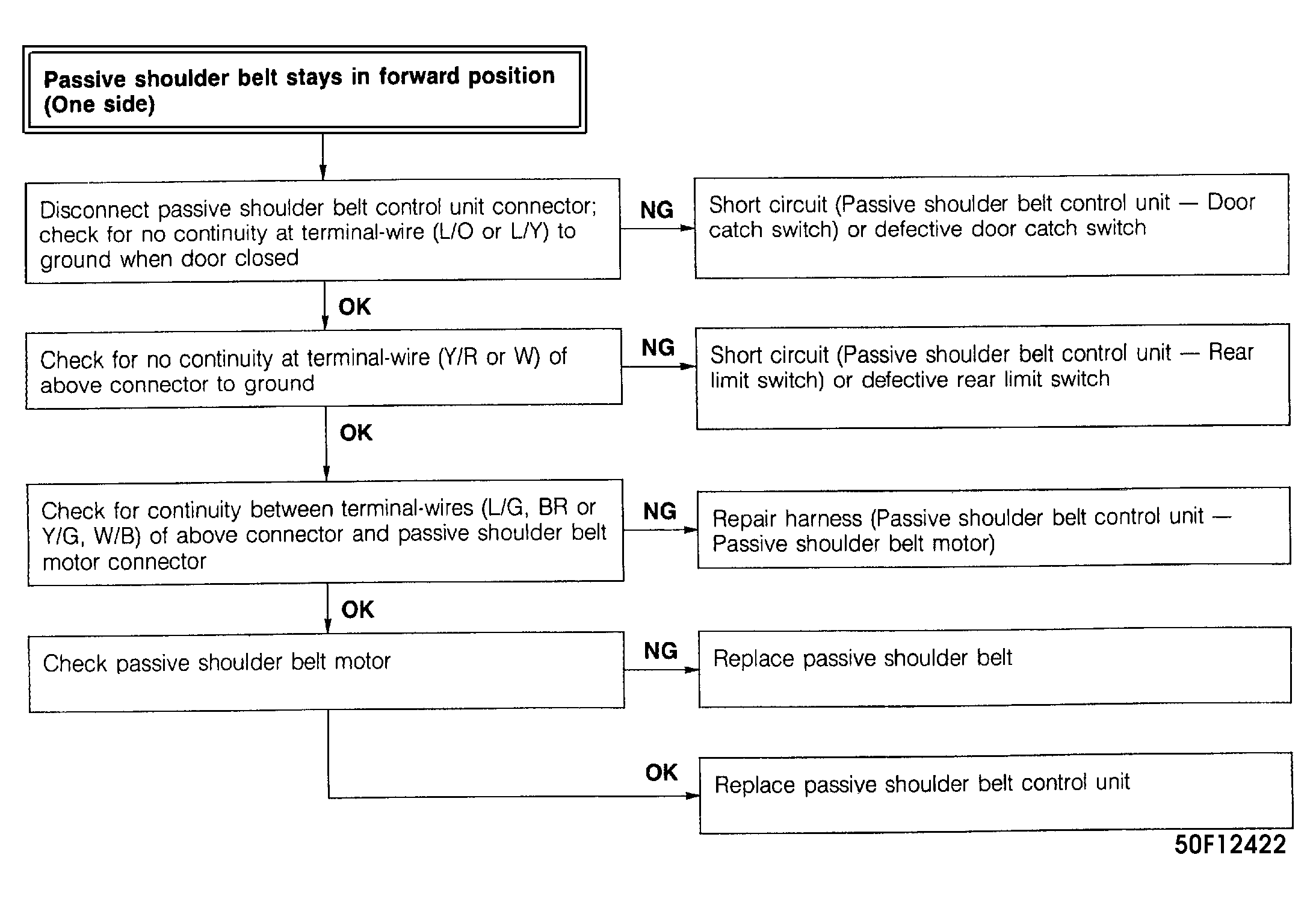

Fig 1: Passive Shoulder Belt Stays In Forward Position (One Side) Flow Chart
