Overdrive Brake Band: Navajo

WARNING: This page is about a different car, the 1992 Mazda Navajo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean dirt from band adjusting screw area. Remove and discard adjusting screw lock nut. Install NEW lock nut. Tighten adjusting screw to 120 INCH lbs. (14 N.m). See Fig 1 .
  2. Back off adjusting screw 2 turns. Hold adjusting screw in position and tighten lock nut to 35-45 ft. lbs. (48-61 N.m).

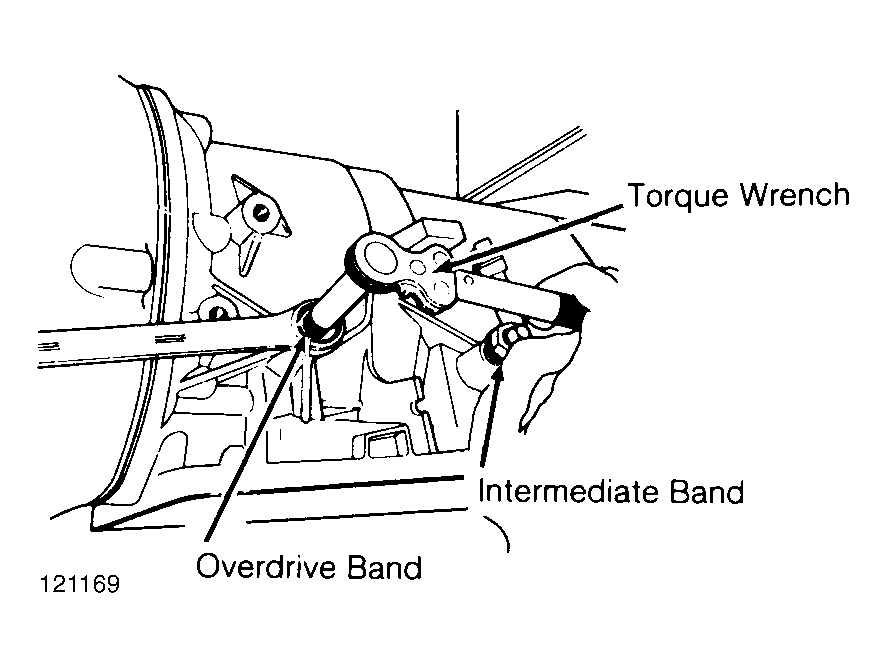

Fig 1: Adjusting Overdrive Or Intermediate Band (Navajo)
G121169Courtesy of MAZDA MOTORS CORP.
