B2200 & B2600I 2WD

WARNING: This page is about a different car, the 1991 Mazda Navajo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Move gearshift lever to "P" position. Remove gearshift cover. Loosen lock nuts "A" and "B", and ensure transmission is in "P" position by moving manual shaft. See Fig 1. Using a feeler gauge, adjust clearance between adjust lever and lock nut "A" to .039" (1.0 mm).
  2. Tighten lock nut "B" to 69-95 INCH lbs. (8-11 N.m). Measure clearance between guide plate and guide pin in "P" position. See Fig 2. Repeat procedure in "N" and "D" positions. Front side clearance should be approximately .039" (1.0 mm) and rear side should be approximately .020" (0.5 mm). Align indicator cover with selector lever.

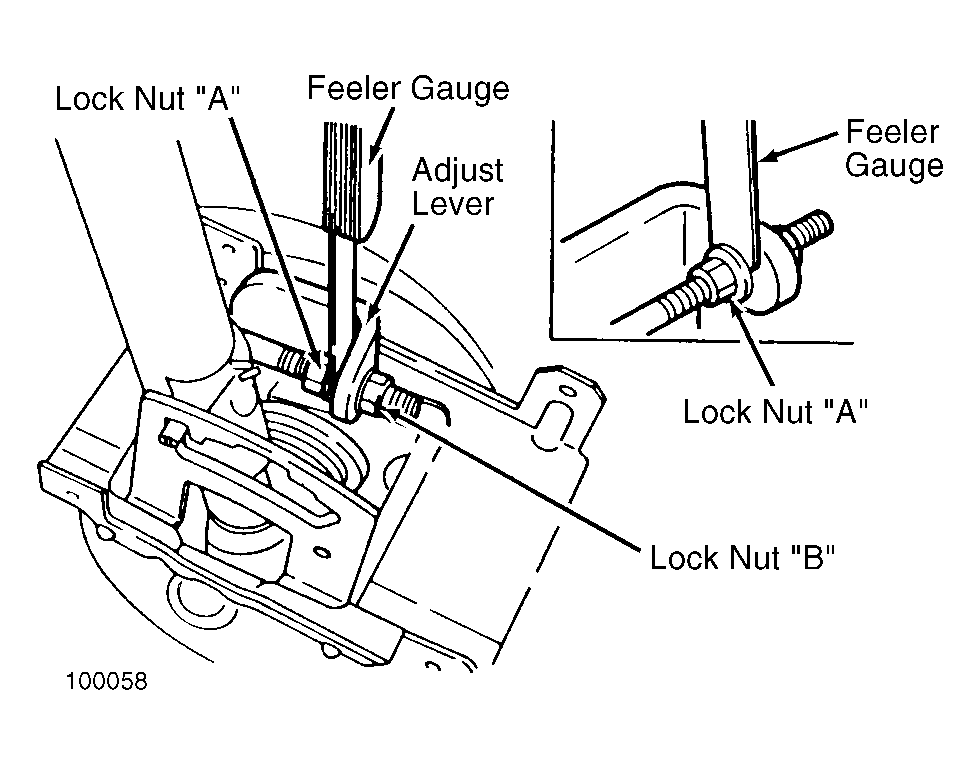

Fig 1: Adjusting Gearshift Linkage (B2200 & B2600i 2WD)
G100058Courtesy of MAZDA MOTORS CORP.
Fig 2: Adjusting Guide Pin-To-Guide Plate Clearance (B2200 & B2600i)
G100059Courtesy of MAZDA MOTORS CORP.
