MX-6, Protege 4WD & 626

WARNING: This page is about a different car, the 1991 Mazda Navajo. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove drain plug, and drain transaxle. Remove oil pan and gasket. Loosen lock nut, and tighten piston stem to 78-95 INCH lbs. (9-11 N.m). See Fig 1. Loosen piston stem 2 turns.
  2. Hold piston stem and tighten lock nut to 18-29 ft. lbs. (24-39 N.m). Install oil pan using new gasket. Tighten oil pan bolts to specification. See TORQUE SPECIFICATIONS TABLE at end of article. Add fluid, and check level. DO NOT overfill.

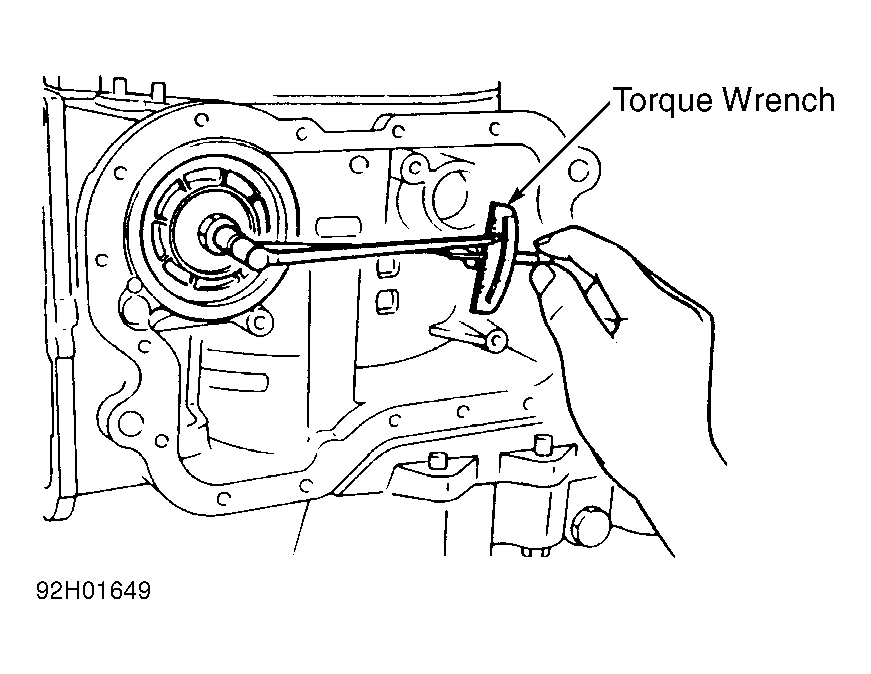

Fig 1: Adjusting 2-4 Brake Band (MX-6, Protege 4WD & 626)
G92H01649Courtesy of MAZDA MOTORS CORP.
