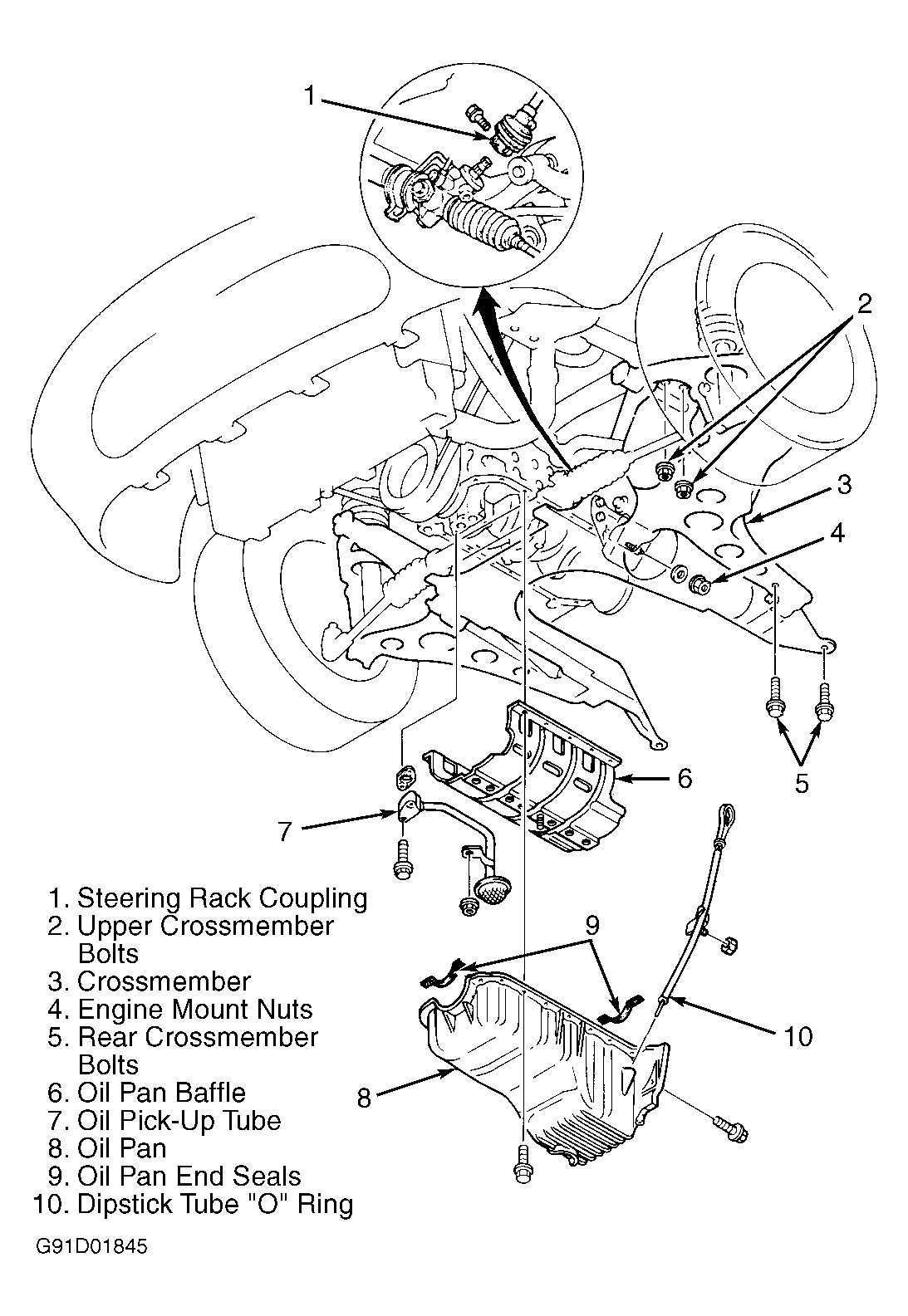

Engine Specifications

GENERAL SPECIFICATIONS

Application	Specification In. (mm)
Displacement	112.2 Cu. In.
Bore	3.27" (83.0)
Stroke	3.35" (85.0)
Compression Ratio	9.0:1
Fuel System	PFI
Horsepower @ RPM	128 @ 6500
Torque Ft. Lbs. @ RPM	110 @ 5000

CRANKSHAFT, MAIN & CONNECTING ROD BEARINGS

Application			In. (mm)
Crankshaft
End Play
Standard			.0031-.0111 (.079-.282)
Maximum			.012 (.30)
Maximum Runout			.0016 (.040)
Main Journals
Diameter			1.9660-1.9668 (49.938-49.956)
Out-Of-Round & Taper			.002 (.05)
Oil Clearance
Standard			.0007-.0014 (.018-.036)
Maximum Wear Limit			.0039 (.100)
Crankpin Journal
Diameter			1.7693-1.7699 (44.940-44.956)
Out-Of-Round & Taper			.002 (.05)
Oil Clearance
Standard			.0008-.0027 (.017-.068)
Maximum Wear Limit			.0039 (.100)

CONNECTING RODS

Application		In. (mm)
Bore Diameter
Crankpin Bore		1.8898-1.8904 (48.000-48.016)
Pin Bushing Bore		.7875-.7880 (20.003-20.014)
Center-To-Center Length		5.230-5.234 (132.85-132.95)
Maximum Bend		.003 (.08)
Side Play
Standard		.0043-.0103 (.110-.262)
Wear Limit		.012 (.30)

PISTONS, PINS & RINGS

Application				In. (mm)
Pistons
Clearance
Standard				.0013-.0023 (.032-.059)
Maximum				.006 (.15)
Diameter
Standard				3.2659-3.2667 (82.954-82.974)
Pins
Diameter				.7869-.7871 (19.987-19.993)
Piston Fit				-.0002-.0005 (-.005-.013)
Rings
End Gap
No. 1
Standard				.006-.012 (.15-.30)
Wear Limit				.039 (1.0)
No. 2
Standard				.006-.012 (.15-.30)
Wear Limit				.039 (1.0)
Oil Ring
Standard				.008-.028 (.20-.71)
Wear Limit				.039 (1.0)
Side Clearance
Standard				.0012-.0026 (.030-.065)
Wear Limit				Wear Limit

CYLINDER BLOCK

Application		In. (mm)
Cylinder Bore
Standard Diameter		3.2677-3.2684 (83.000-83.019)
Maximum Taper & Out-Of-Round		.0007 (.019)
Deck Height
Standard		8.720 (221.5)
Minimum		8.712 (221.3)
Maximum Deck Warpage		.006 (.15)

CYLINDER HEAD

Application

In. (mm)

Cylinder Head Height

5.268-5.276 (133.81-134.01)

Maximum Warpage

.004 (.10)

Valve Seat Contact Angle

45°

Valve Guides

Valve Guide I.D.

.2366-.2374 (6.009-6.029)

Valve Guide Installed Height ⁽¹⁾

.720-.744 (18.28-18.89)

Valve Stem-To-Guide Oil Clearance

Intake

.0010-.0024 (.025-.060)

Exhaust

.0012-.0026 (.030-.065)

Maximum Wear Limit

.008 (.20)

Cylinder Head-To-HLA Clearance

.0010-.0071 (.025-.180)

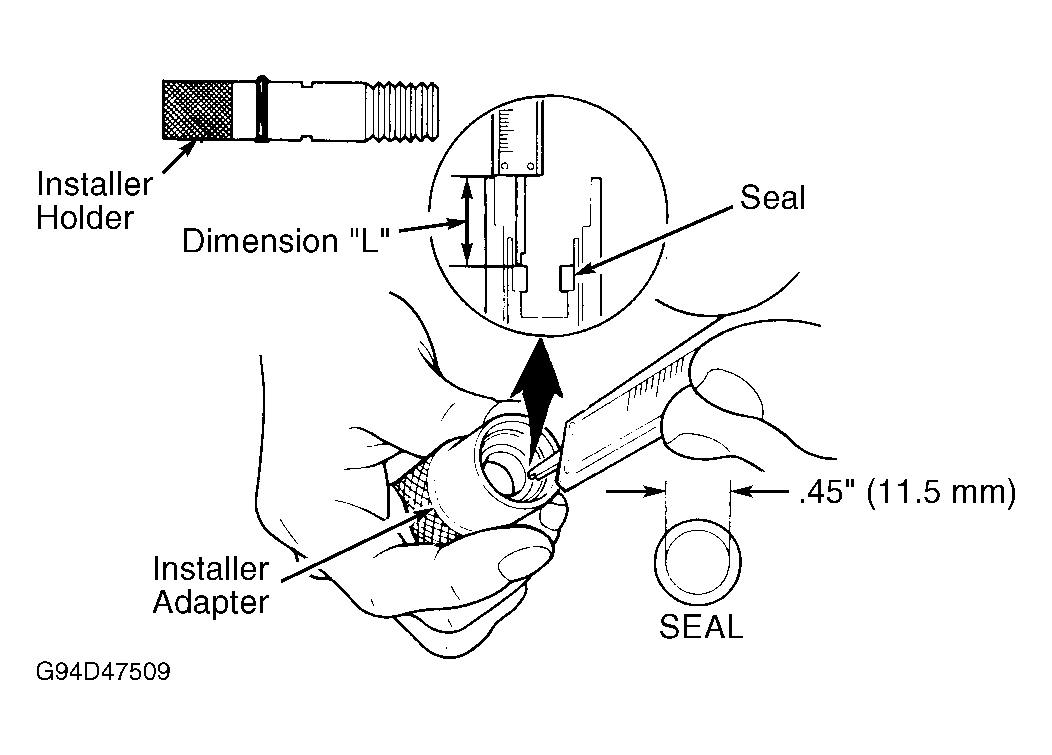

⁽¹⁾	Valve guide installed height is measured from top of installed guide to spring seat. See Figure.

VALVES & VALVE SPRINGS

Application

Specification In. (mm)

Valves

Face Angle

45°

Contact Width

.031-.055" (.79-1.40)

Installed Height ⁽¹⁾

Normal

1.772-1.791" (45.00-45.50)

Serviceable

1.733-1.772" (45.60-46.50)

Minimum Margin

Intake

.035" (0.9)

Exhaust

.039" (1.0)

Minimum Refinish Length

Intake

3.952" (100.39)

Exhaust

3.956" (100.49)

Stem Diameter

Intake

Standard

.2350-.2356" (5.970-5.985)

Minimum

.2331" (5.920)

Exhaust

Standard

.2348-.2354" (5.965-5.980)

Minimum

.2329" (5.952)

Valve Springs

Free Length

1.821" (46.26)

Maximum Out-Of-Square

.064" (1.62)

Compressed Length (Minimum)

1.8L DOHC ⁽¹⁾

1.555" (39.50)

⁽¹⁾	Valve height is measured from top of installed valve to spring seat. See VALVE INSTALLED HEIGHTS table under OVERHAUL. See Figure.

CAMSHAFT

Application			In. (mm)
End Play			.0032-.0120 (.081-.305)
Journal Diameter			1.0213-1.0222 (25.940-25.965)
Maximum Journal Out-Of-Round			.0015 (.038)
Maximum Journal Runout			.0012 (.030)
Journal Oil Clearance			.0014-.0032 (.035-.081)
Maximum Wear Limit			.006 (.15)
Lobe Height
Standard
Intake			1.7360 (44.094)
Exhaust			1.7560 (44.600)
Minimum
Intake			1.7281 (43.894)
Exhaust			1.7480 (44.400)
