Resistance Check

Disconnect solenoid valve connector. See Figure . Measure resistance between terminals. Resistance should be 13-25 ohms. If not 13-25 ohms, replace solenoid valve.

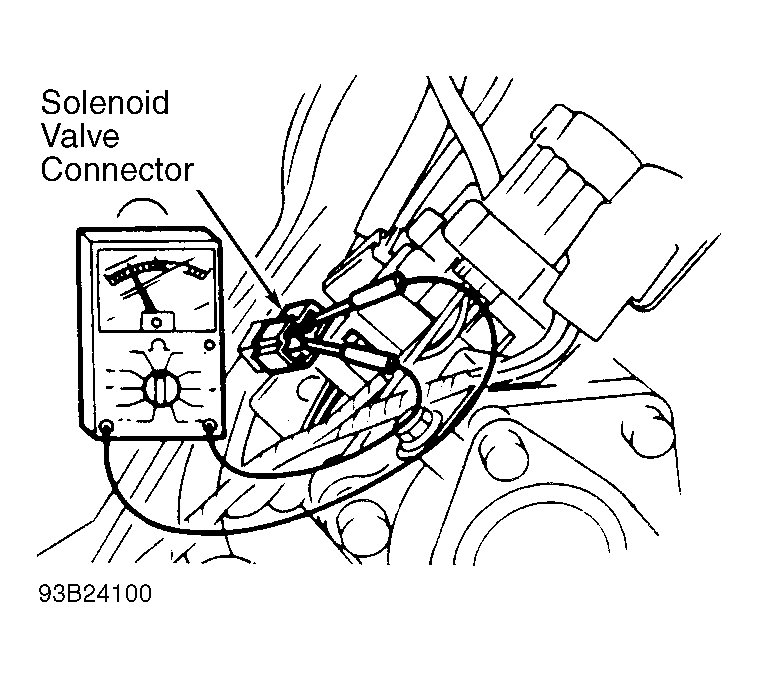

Fig 1: Checking Lock-Up Solenoid (NC4A-EL)

Courtesy of MAZDA MOTORS CORP.
