Continuity Check

Connect gauge to terminals. See Fig 1 . Note continuity in INHIBITOR/PARK NEUTRAL SWITCH CONTINUITY table.

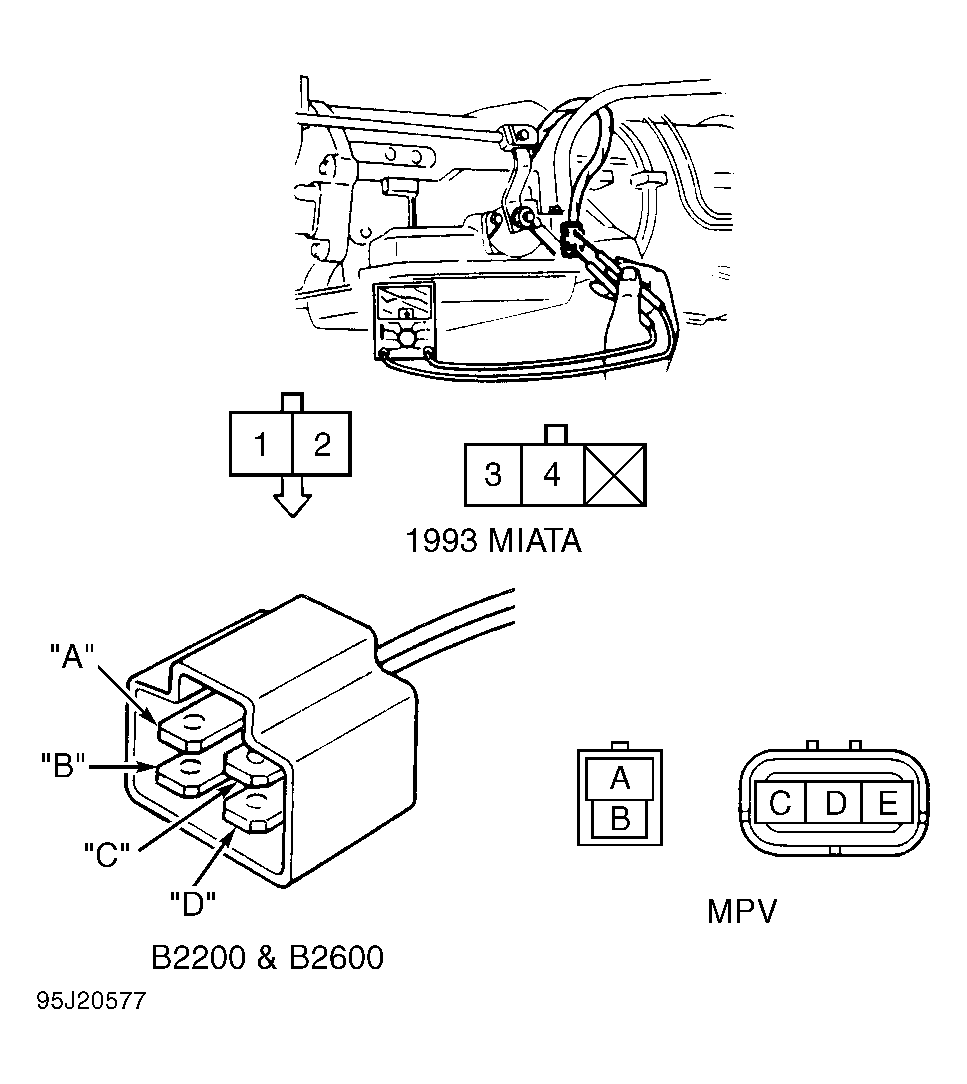

Fig 1: Identifying Inhibitor/Park Neutral Switch Terminals
G95J20577Courtesy of MAZDA MOTORS CORP.
INHIBITOR/PARK NEUTRAL SWITCH CONTINUITY

Application Gear Position Terminal Continuity
B2200/B2600 P & N C to D
R A to B
MPV P A to B & C to E
R C to D
N A to B
Miata 1993 P 1 to 2
R 3 to 4
N 1 to 2
Miata 1994 P B to H & E to L
R G to I
N B to H & D to I
D C to I
S F to I
L A to I
