Removal (Front D-Sensors)

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM .
  2. To remove center sensor, go to step 4). To remove left or right sensor, raise and support front of vehicle. Remove wheel and tire assembly. Remove wheel well assembly to access sensor.

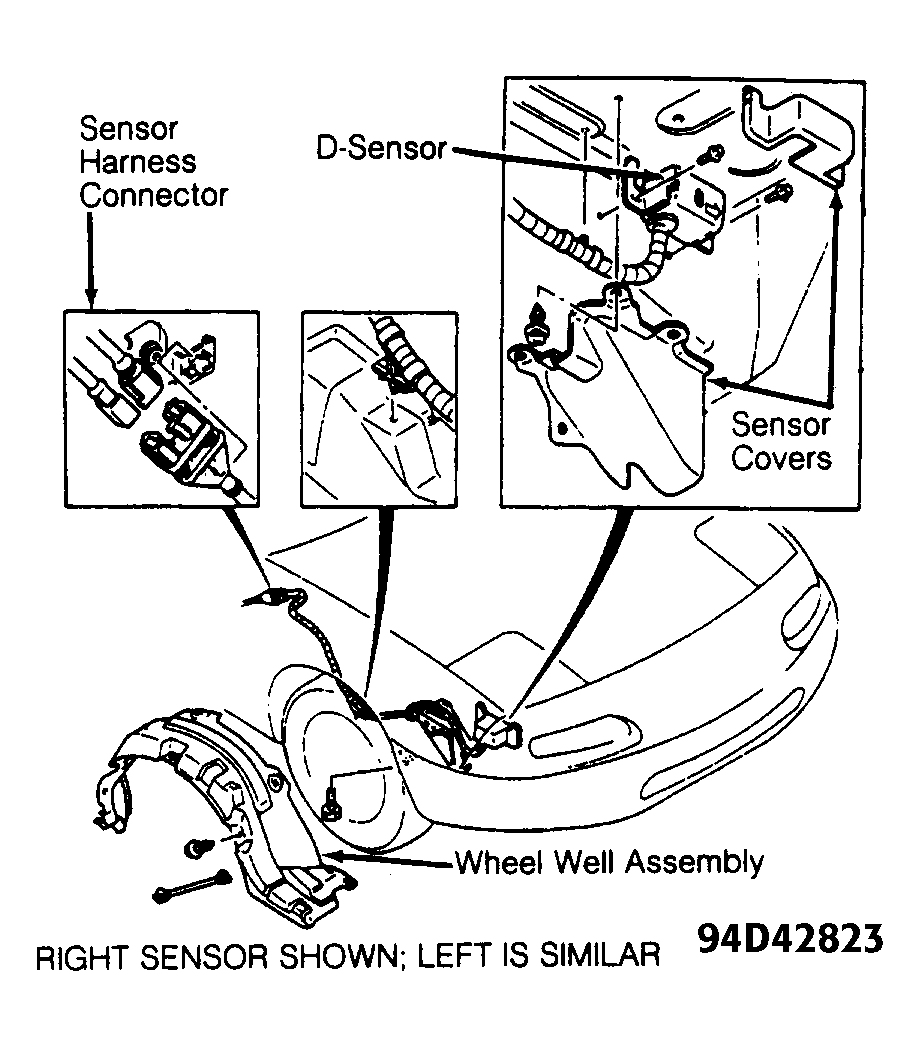

  3. Remove 2 sensor covers. Unbolt sensor from vehicle. Disconnect sensor harness connector located in front of door jamb area. Remove sensor and harness from vehicle. See Figure.
  4. To remove center sensor, remove top cover located forward of radiator to access sensor. Remove sensor cover. Unbolt sensor from vehicle. Disconnect sensor harness connector located on top of left wheel well in engine compartment. Remove sensor and harness from vehicle.
