Activating System (MX-3, RX7 & 929)

Ensure negative battery cable is disconnected. Remove short circuit connectors from diagnostic module harness connectors. Reconnect diagnostic module connectors. Connect negative battery cable. See SYSTEM OPERATION CHECK .

Fig 1: Locating Driver Air Bag Clockspring Connectors (Miata Shown; MX-6 & 626 Are Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Locating Driver Air Bag Clockspring Connectors (MVP)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Locating Passenger Air Bag Clockspring Connectors (Miata Shown; MX-6 & 626 Are Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

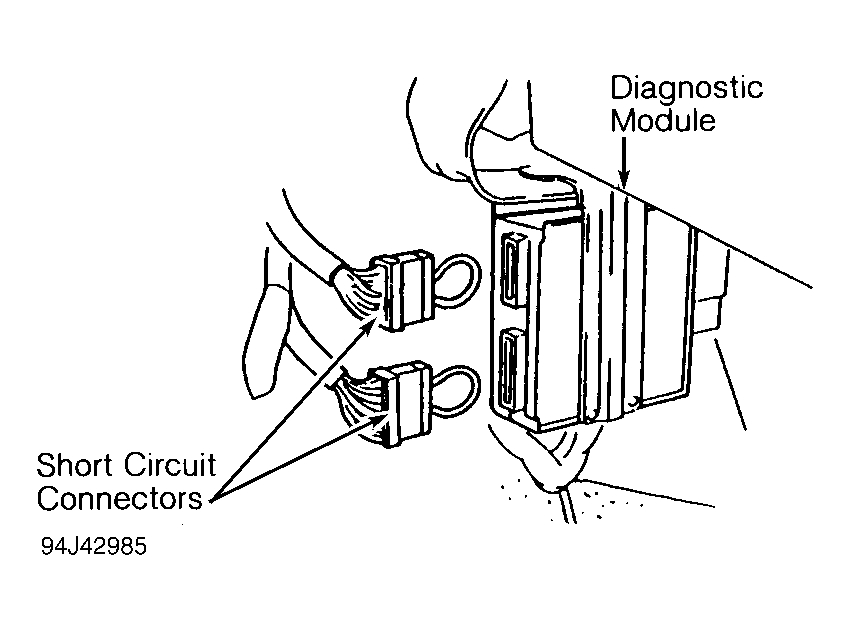

Fig 4: Disabling Air Bag System (MX-3 Shown; 929 Similar)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

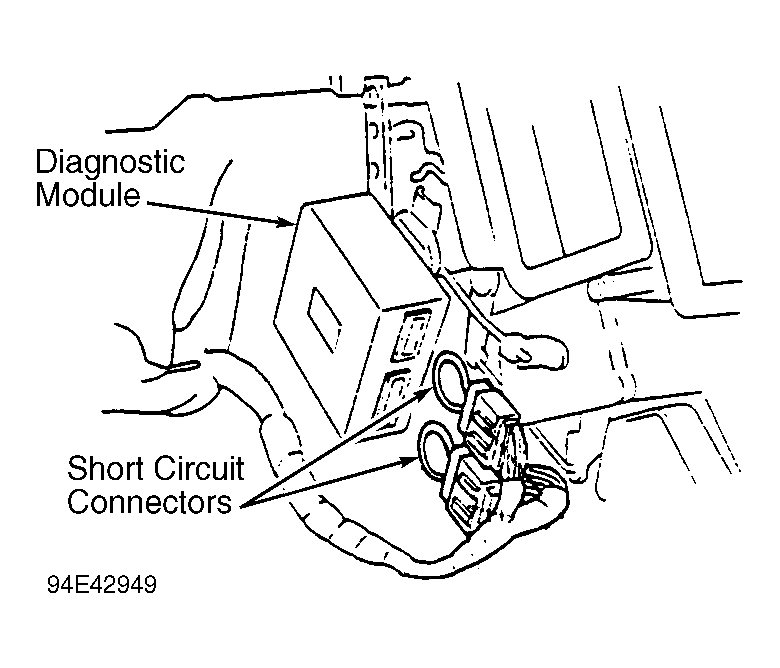

Fig 5: Disabling Air Bag System (RX7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
