Power Steering Pump

Loosen nuts and bolts and adjust belt deflection by turning adjusting bolt. See Fig 1, Fig 2 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

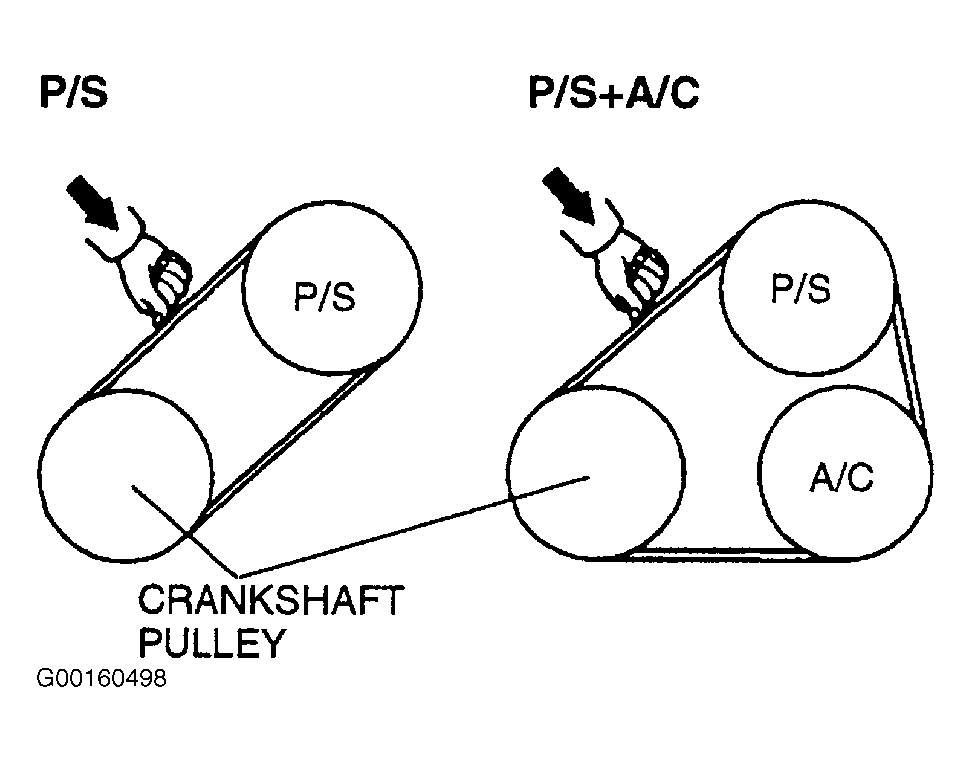

Fig 1: Adjusting Power Steering Pump Belt (Without A/C, Protege)

Courtesy of MAZDA MOTORS CORP.

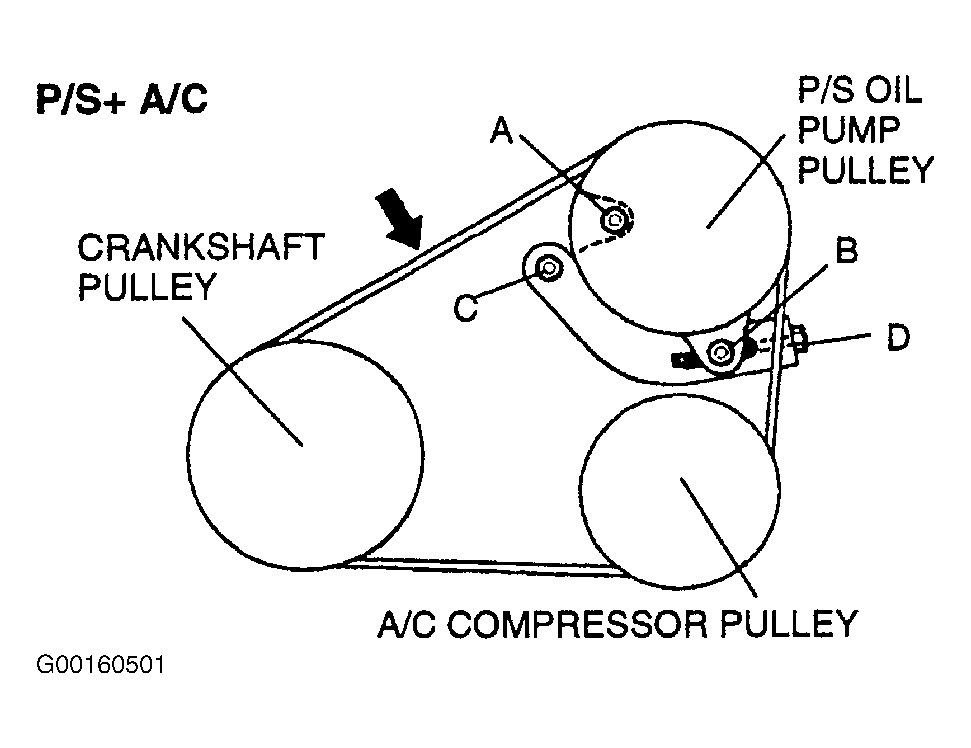

Fig 2: Adjusting Power Steering Pump Belt (With A/C, Protege)

Courtesy of MAZDA MOTORS CORP.
