Adjusting Drive Belt - Protege: Alternator

Loosen bolts and adjust belt deflection by turning adjusting bolt. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

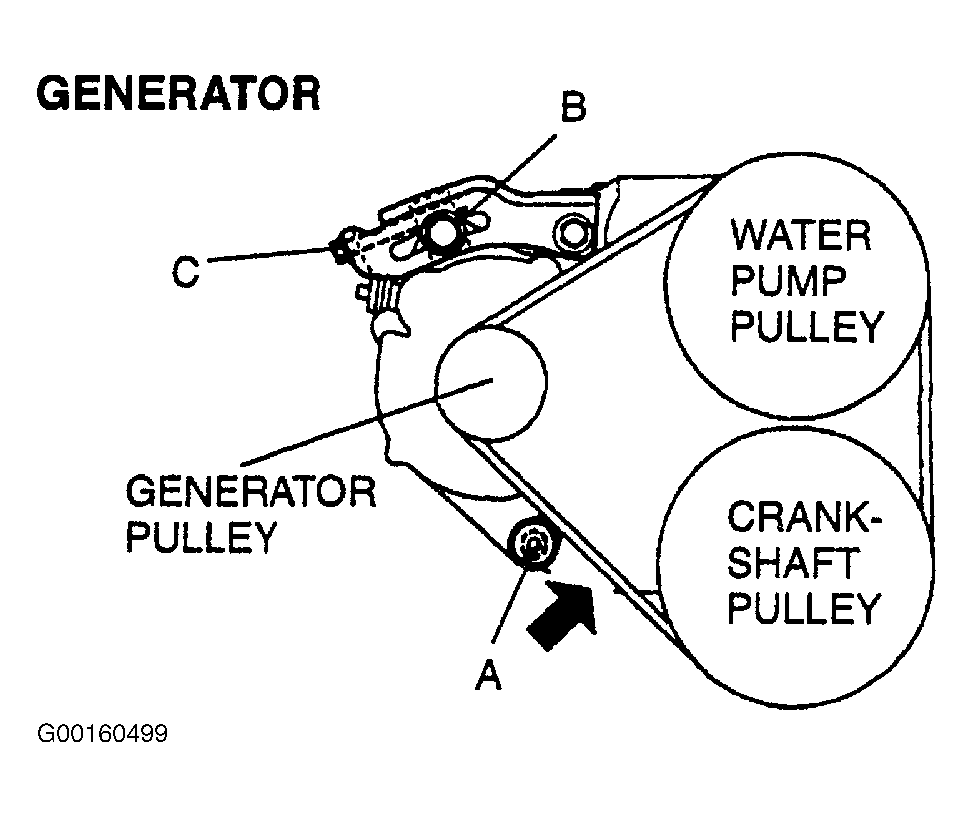

Fig 1: Adjusting Alternator Belt (Protege)
G00160499Courtesy of MAZDA MOTORS CORP.
