Power Steering Pump

Loosen power steering pump nut and bolt, and adjust belt deflection by turning adjusting bolt. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

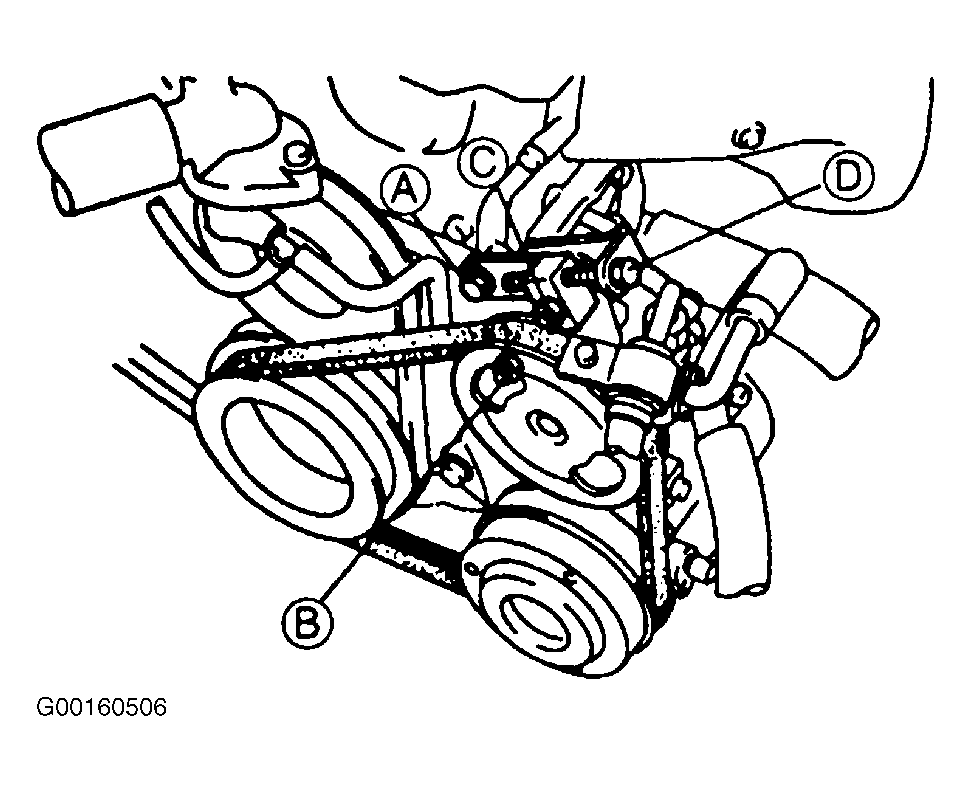

Fig 1: Adjusting Power Steering Pump Belt (MX-5 Miata)
G00160506Courtesy of MAZDA MOTORS CORP.
