Adjusting Drive Belt - MX-5 MIATA: Alternator

Loosen alternator bolts and adjust belt deflection by turning adjusting bolt. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

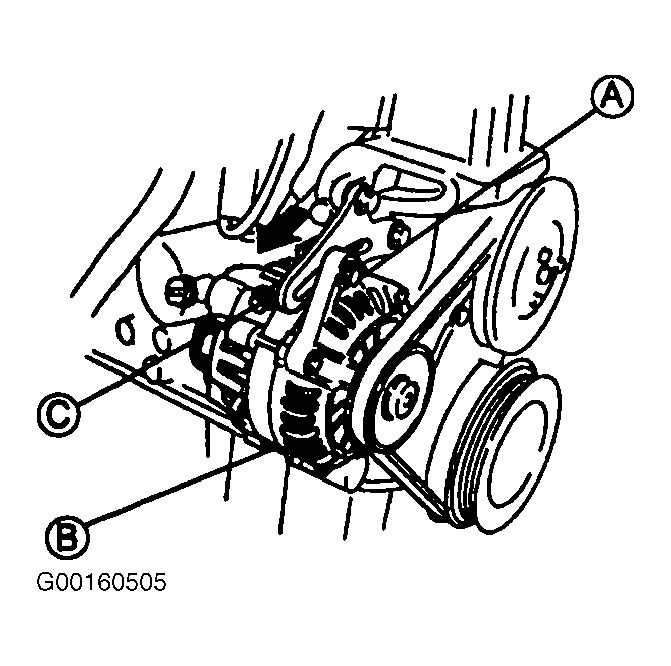

Fig 1: Adjusting Alternator Belt (MX-5 Miata)
G00160505Courtesy of MAZDA MOTORS CORP.
