Adjusting Drive Belt - MPV: Alternator

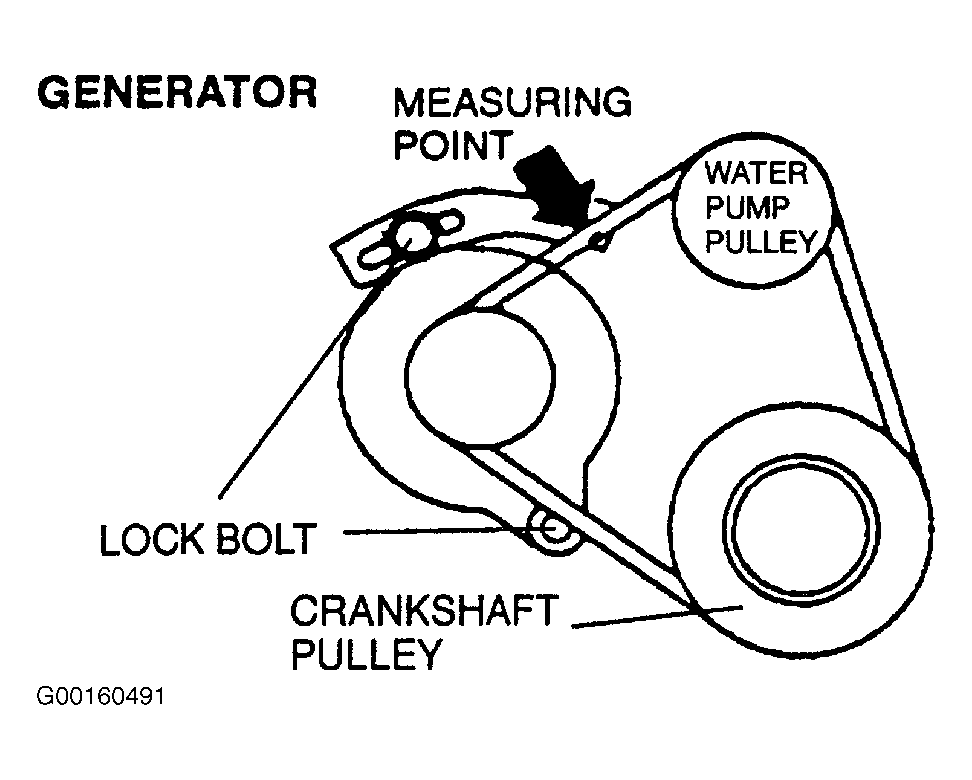

Loosen alternator bolts and adjust belt deflection by levering generator outward and applying tension. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

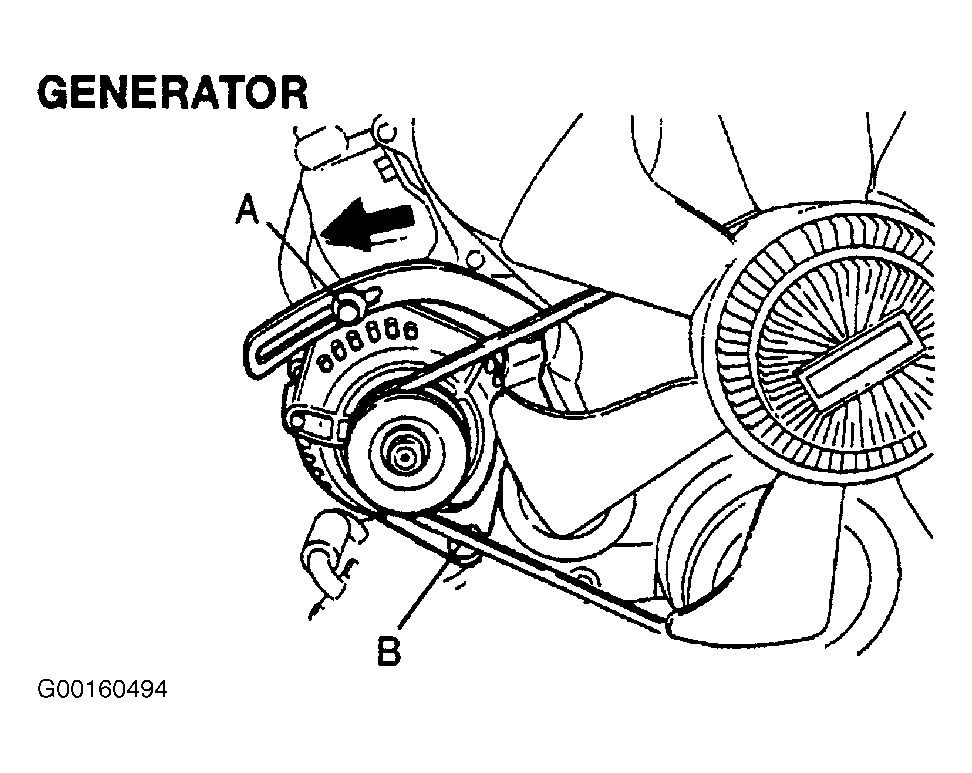

Fig 1: Adjusting Alternator Belt (MPV)
G00160494Courtesy of MAZDA MOTORS CORP.
