Alternator (2.5L)

Loosen idler pulley locknut and adjust belt deflection by turning adjusting bolt. See Fig 1and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

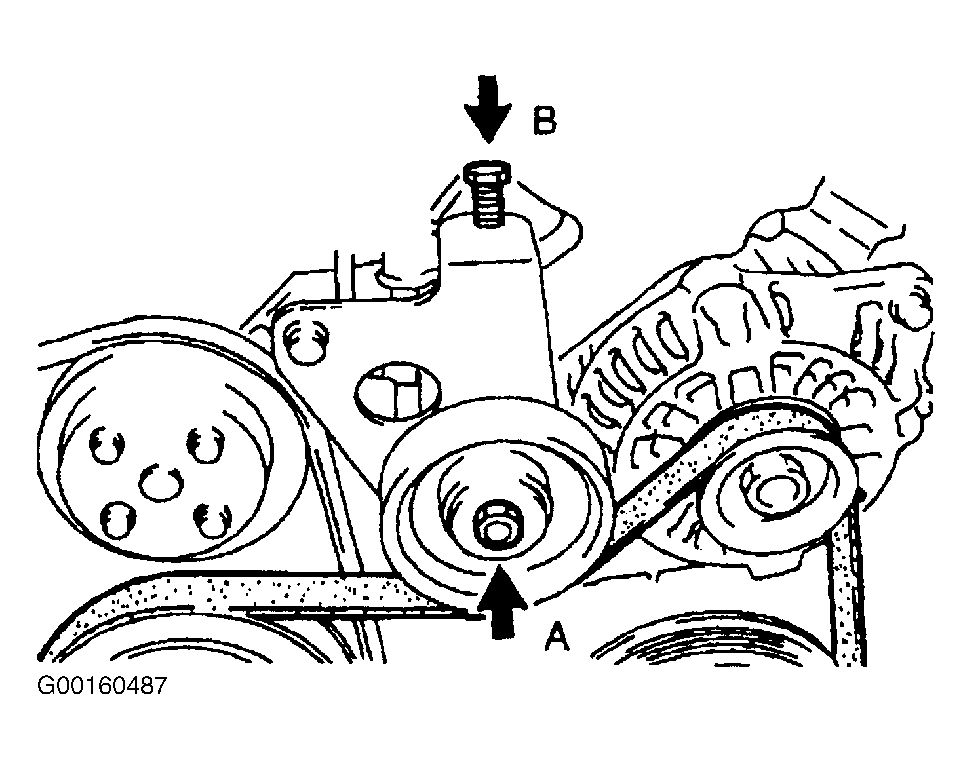

Fig 1: Adjusting Alternator Belt (Millenia, 2.5L)
G00160487Courtesy of MAZDA MOTORS CORP.
