A/C Compressor

Loosen locknut and adjust belt deflection by turning adjusting bolt. See Fig 1and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

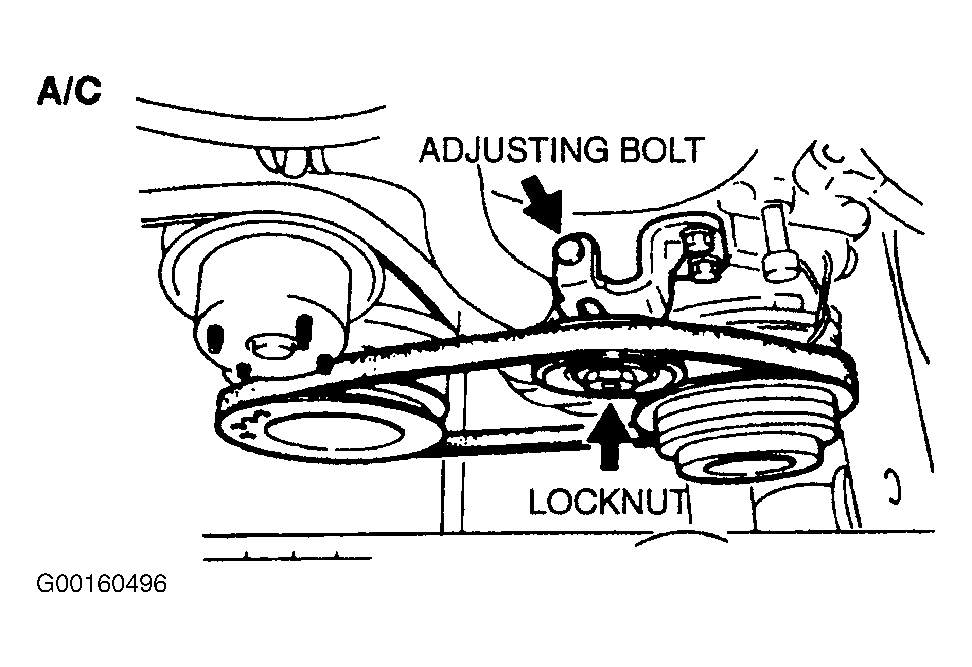

Fig 1: Adjusting A/C Compressor Belt (MPV)
G00160496Courtesy of MAZDA MOTORS CORP.
