Inspecting Deployment Tool

NOTE: Deployment tool should always be inspected for proper operation before deploying air bag.
  1. Connect Red deployment tool clip to battery positive terminal. Connect Black deployment tool clip to battery negative terminal. Observe deployment tool lights. Green light should be on with Red light off.
  2. Connect deployment tool connector "A" to connector "B". See Fig 1 . Green light should be off with Red light on. Press deployment tool activation switch. Green light should be on with Red light off.
  3. If deployment tool lights function as described, it is safe to use deployment tool to activate air bag. If deployment tool lights do not function as described, DO NOT use deployment tool. Replace deployment tool with another unit and repeat procedure.

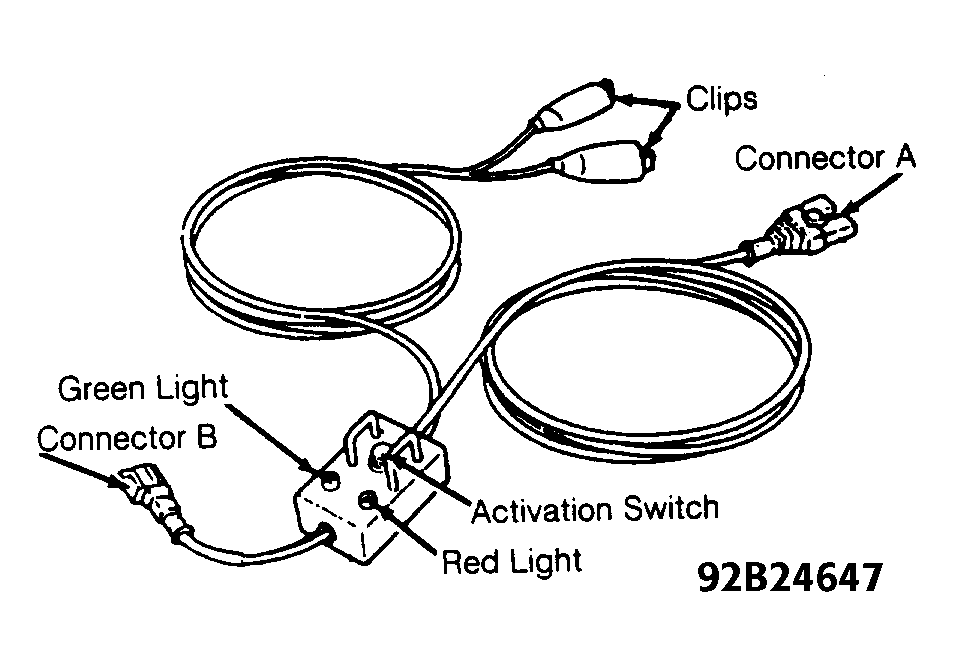

Fig 1: Identifying Air Bag Deployment Tool Connectors
G92B24647Courtesy of MAZDA MOTORS CORP.
