One-Way Clutch & Planetary Carrier: Disassembly

1. Remove one-way clutch, thrust washers and snap ring. See Fig 1 . Remove planetary carrier assembly from inner race. Place one-way clutch on inner race, and ensure clutch rotates smoothly and clockwise only. See Fig 2 .
2. Inspect for damaged or worn parts. Ensure clearance between pinion gear and washer is .008-.028" (.20-.70 mm). See Fig 3 .

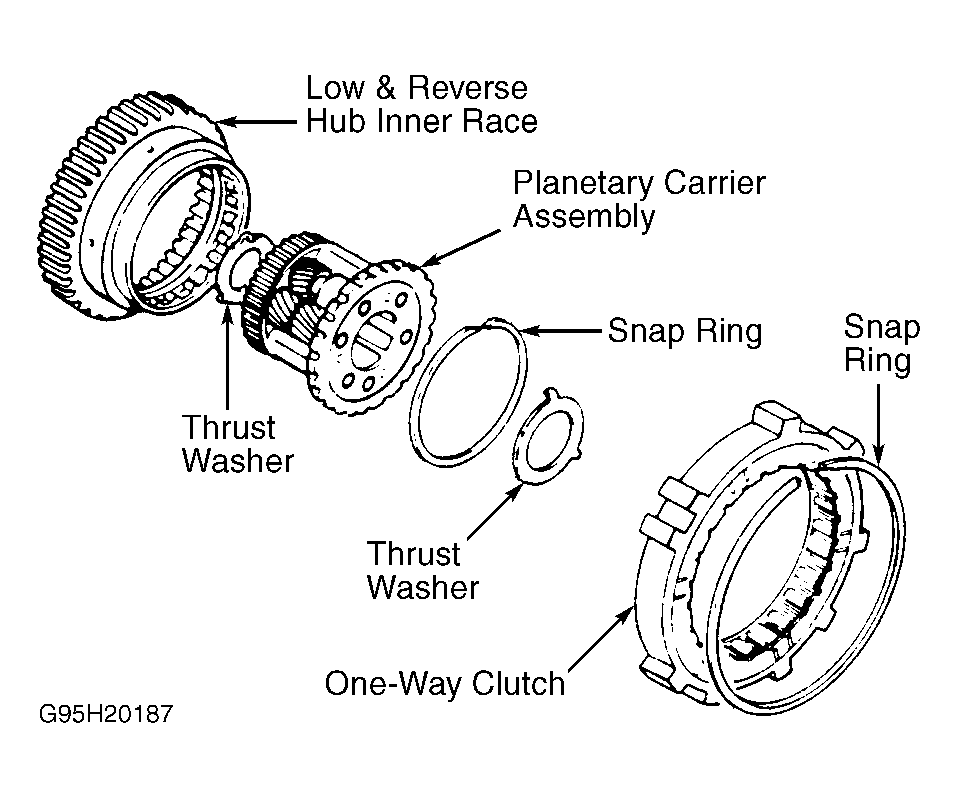

Fig 1: Exploded View of One-Way Clutch & Planetary Carrier

Courtesy of MAZDA MOTORS CORP.

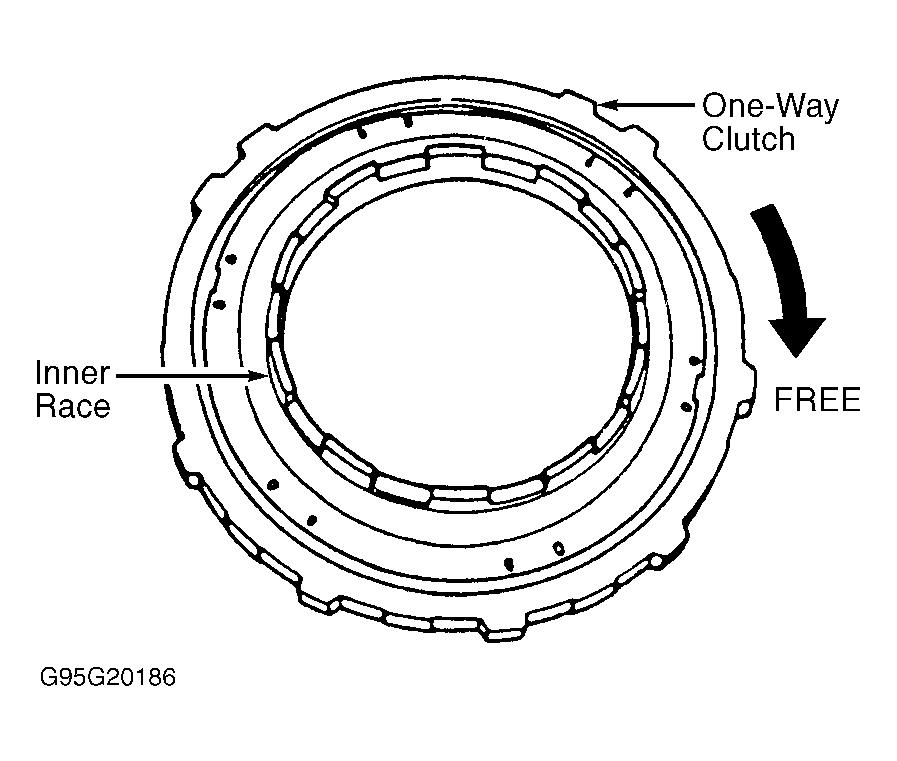

Fig 2: Installing One-Way Clutch

Courtesy of MAZDA MOTORS CORP.

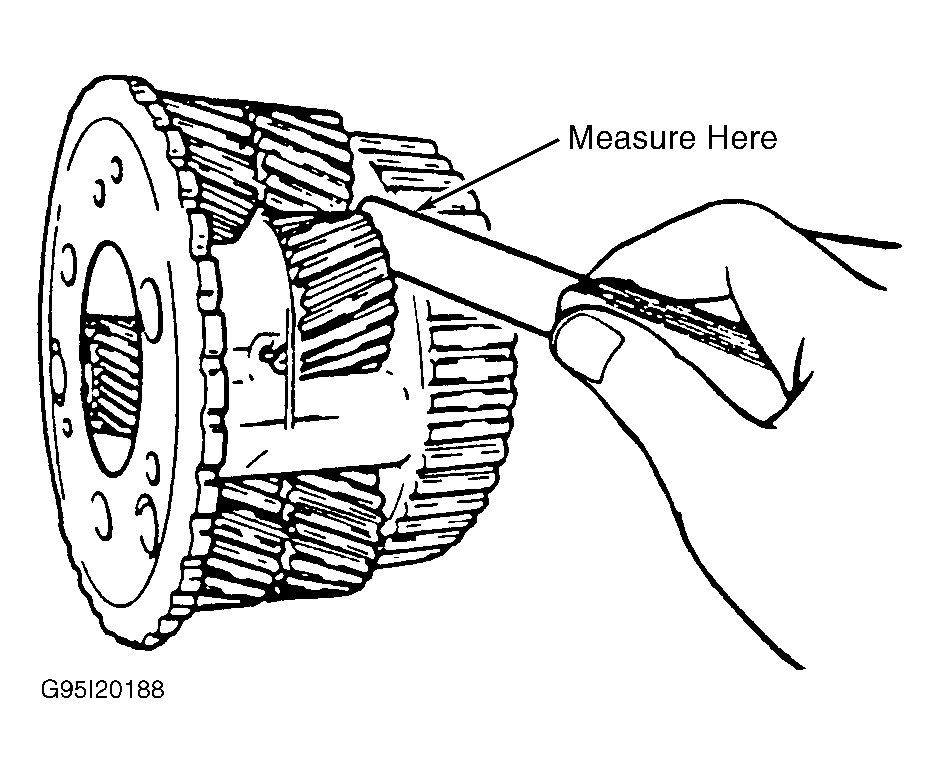

Fig 3: Measuring Pinion Gear To Washer Clearance

Courtesy of MAZDA MOTORS CORP.
