Solenoid Valve Operation (MX-3 Fa4A-El)

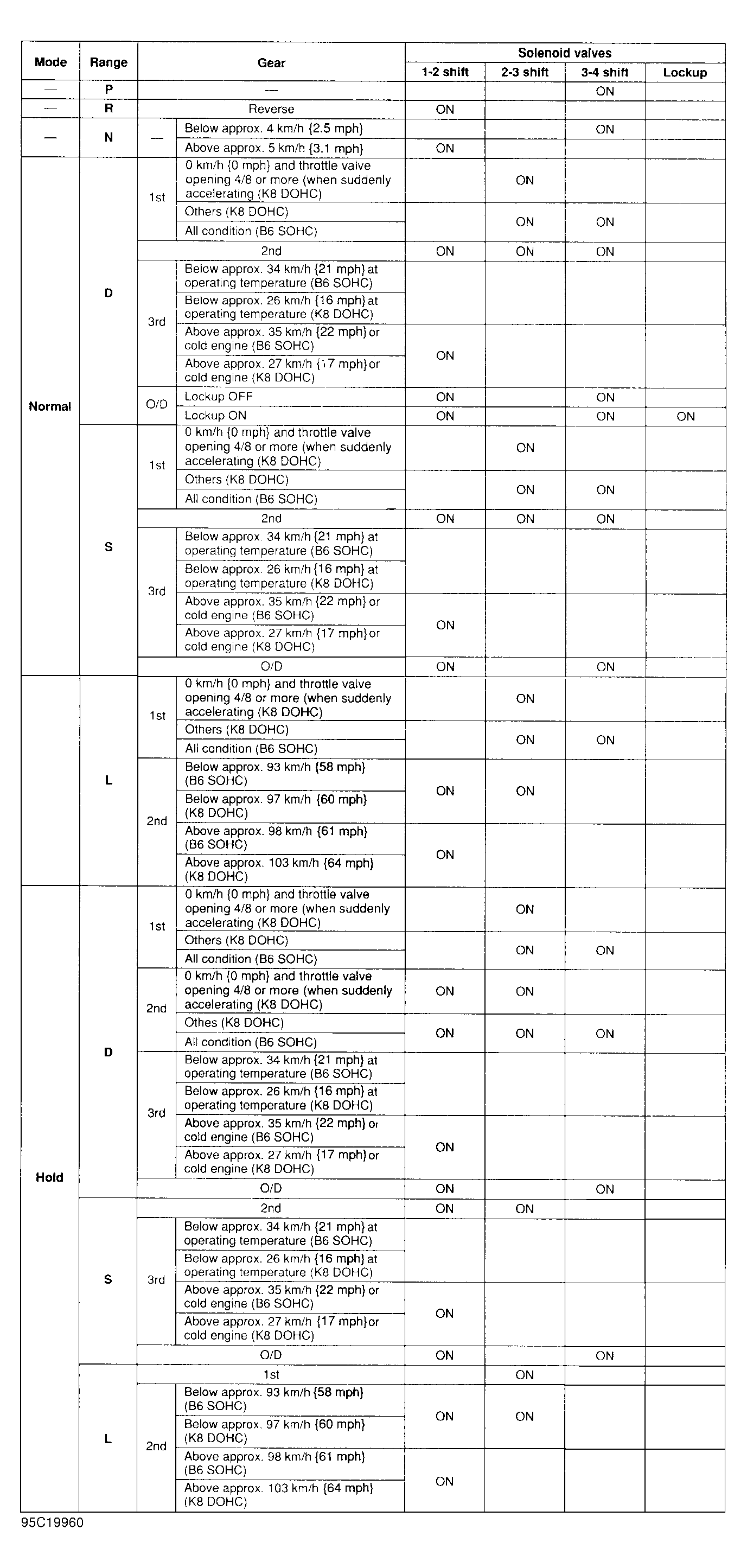

Fig 1: Solenoid Valve Operation Chart (MX-3 FA4A-EL)

G95C19960

Courtesy of MAZDA MOTORS CORP.
