Code 63 - Sol. Valve Lockup (1993 1.6L SOHC CALIF. & 1.8L DOHC)

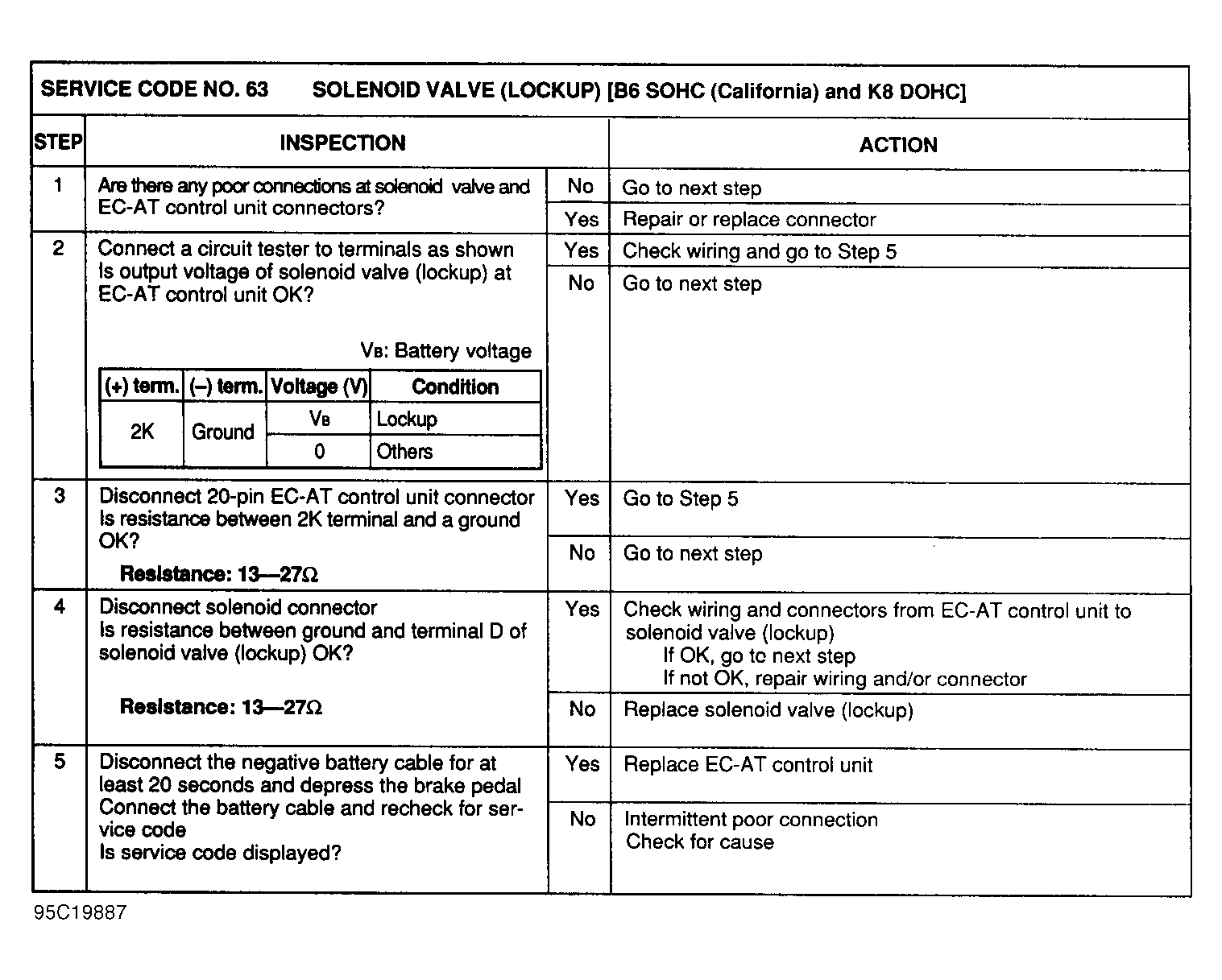

Fig 1: Code 63 (1 of 2) (1993 1.6L SOHC CALIF. MX-3 & 1993 1.8L DOHC MX-3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Code 63 (2 of 2) (1993 1.6L SOHC CALIF. MX-3 & 1993 1.8L DOHC MX-3)

Courtesy of MAZDA MOTORS CORP.
