Code 62 Solenoid Valve 3-4 Shift (1993 1.6L SOHC Exc. CALIF.)

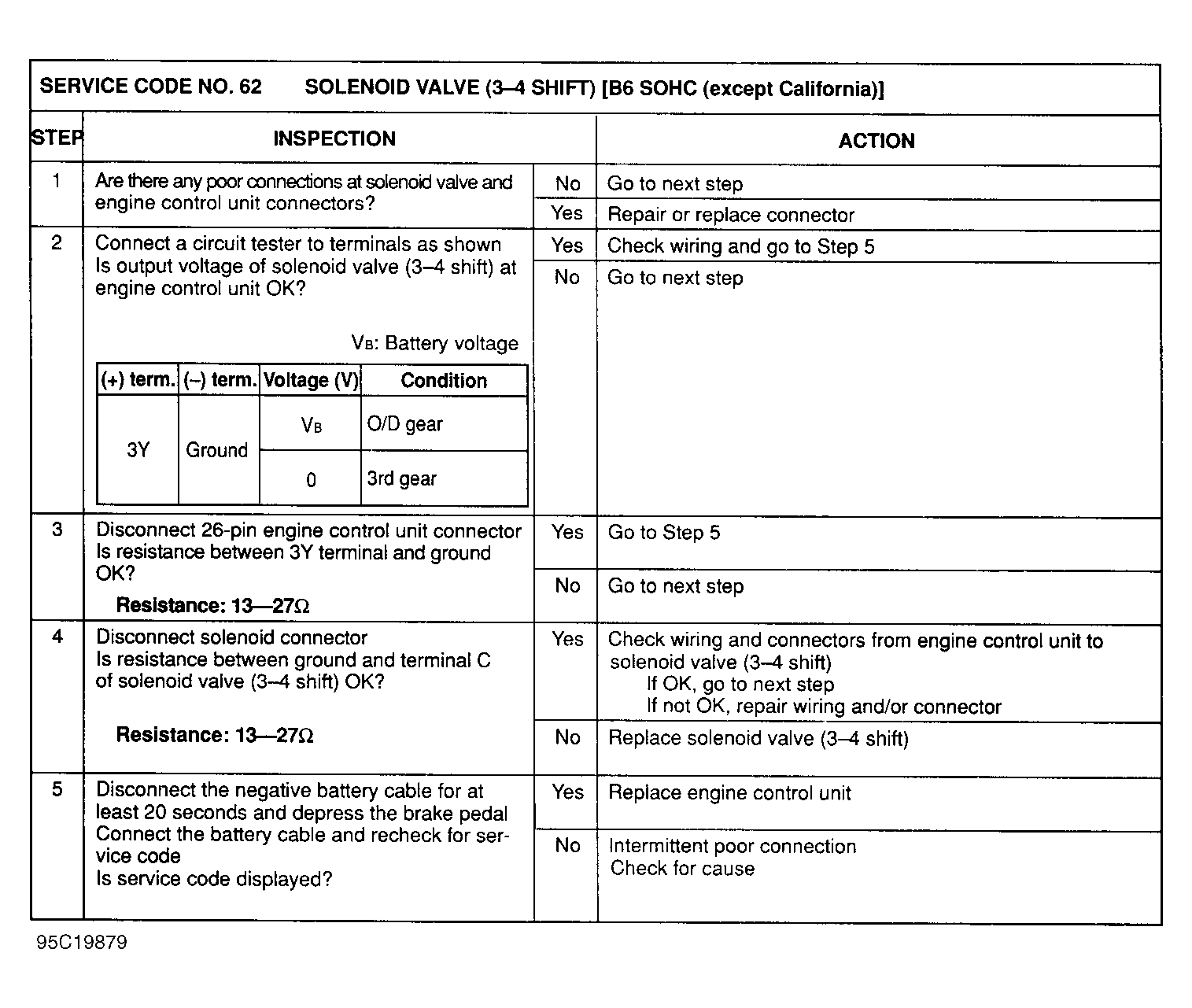

Fig 1: Code 62 (1 of 2) (1993 1.6L SOHC EXCEPT CALIF. MX-3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Code 62 (2 of 2) (1993 1.6L SOHC EXCEPT CALIF. MX-3)

Courtesy of MAZDA MOTORS CORP.
