Code 62 Sol. Valve 3-4 (1993 1.6L SOHC CALIF. & 1.8L DOHC)

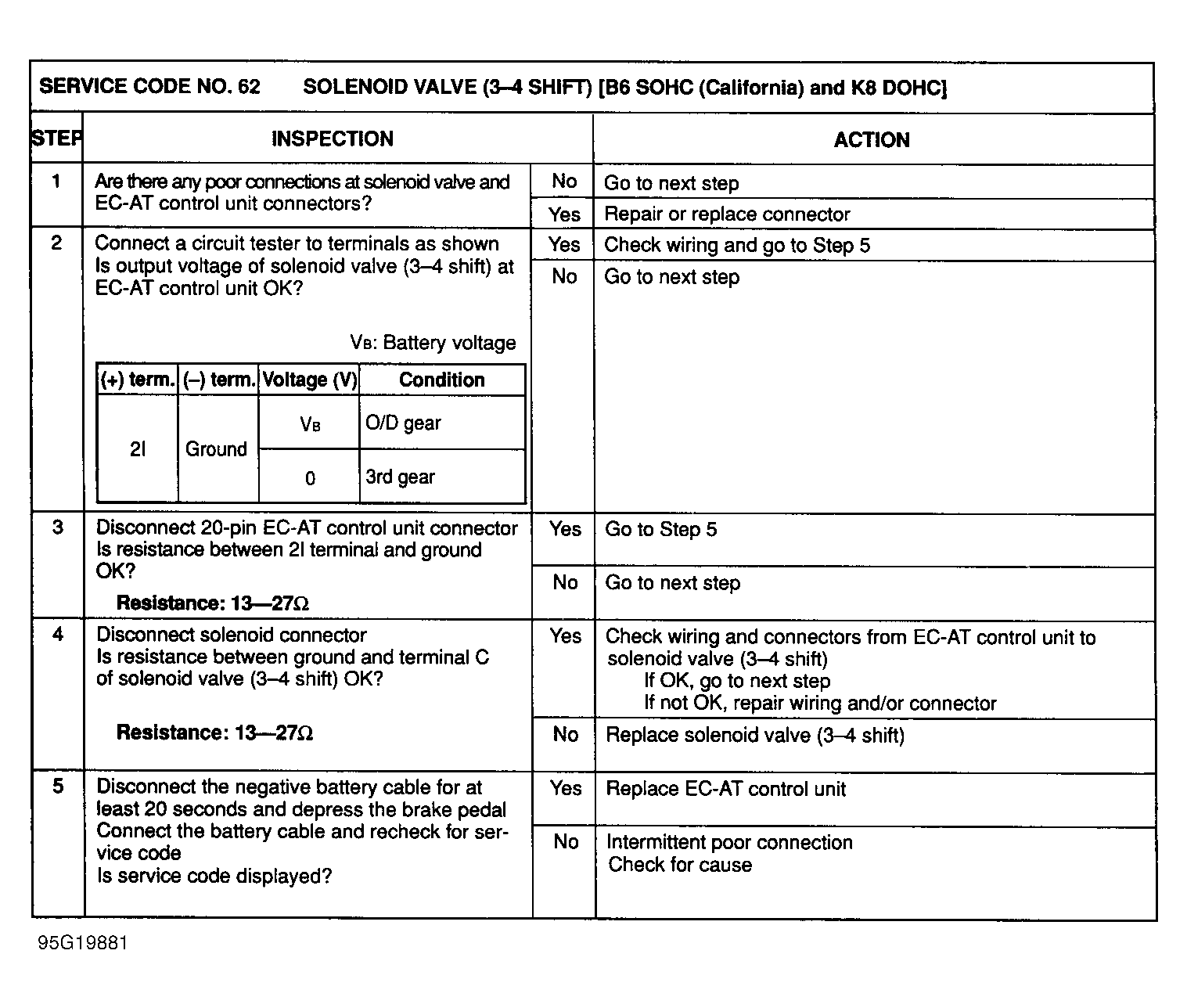

Fig 1: Code 62 (1 of 2) (1993 1.6L SOHC CALIF. MX-3 & 1993 1.8L DOHC MX-3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Code 62 (2 of 2) (1993 1.6L SOHC CALIF. MX-3 & 1993 1.8L DOHC MX-3)

Courtesy of MAZDA MOTORS CORP.
