Code 60 - Sol. Valve 1-2 Shift (1993 1.6L SOHC CALIF., 1.8L DOHC & 1994)

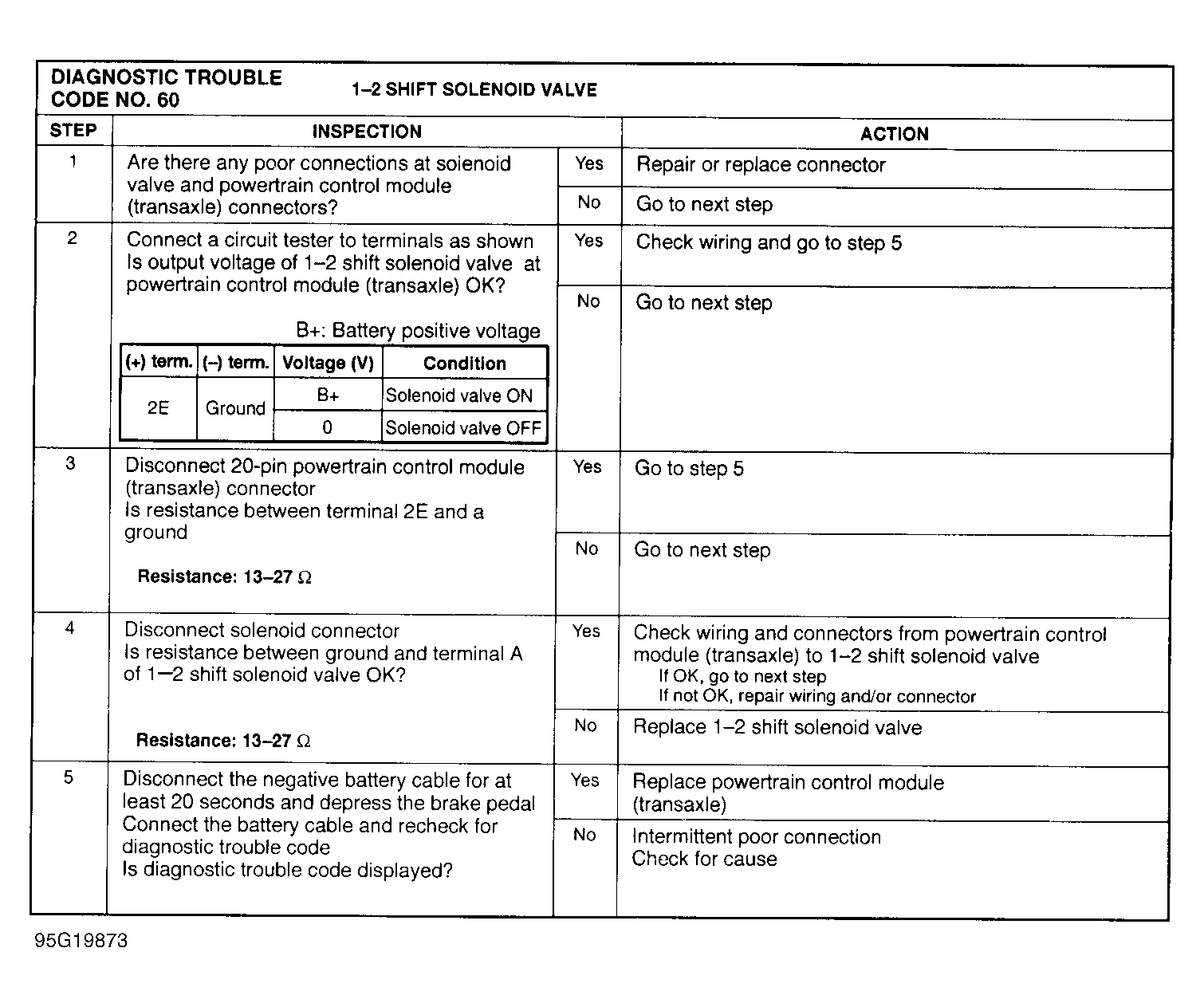

Fig 1: Code 60 (1 of 2) (1993 1.6L SOHC CALIF. MX-3, 1993 1.8L DOHC MX-3 & 1994 MX-3)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Code 60 (2 of 2) (1993 1.6L SOHC CALIF. MX-3, 1993 1.8L DOHC MX-3 & 1994 MX-3)

Courtesy of MAZDA MOTORS CORP.
