Removal (Front D-Sensors)

  1. Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS  . Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM  .
  2. To remove center sensor, go to step 4). To remove left or right sensor, raise and support front of vehicle. Remove wheel and tire assembly. Remove wheelwell assembly and mud guard to access sensor.
  3. Unbolt sensor from vehicle. Disconnect sensor harness connector located near top of wheel opening. Remove sensor and harness from vehicle. See Fig 1 .
  4. To remove center sensor, unbolt sensor from vehicle. See Fig 2 . Disconnect sensor harness connector located in left rear corner of engine compartment. Remove sensor and harness from vehicle.

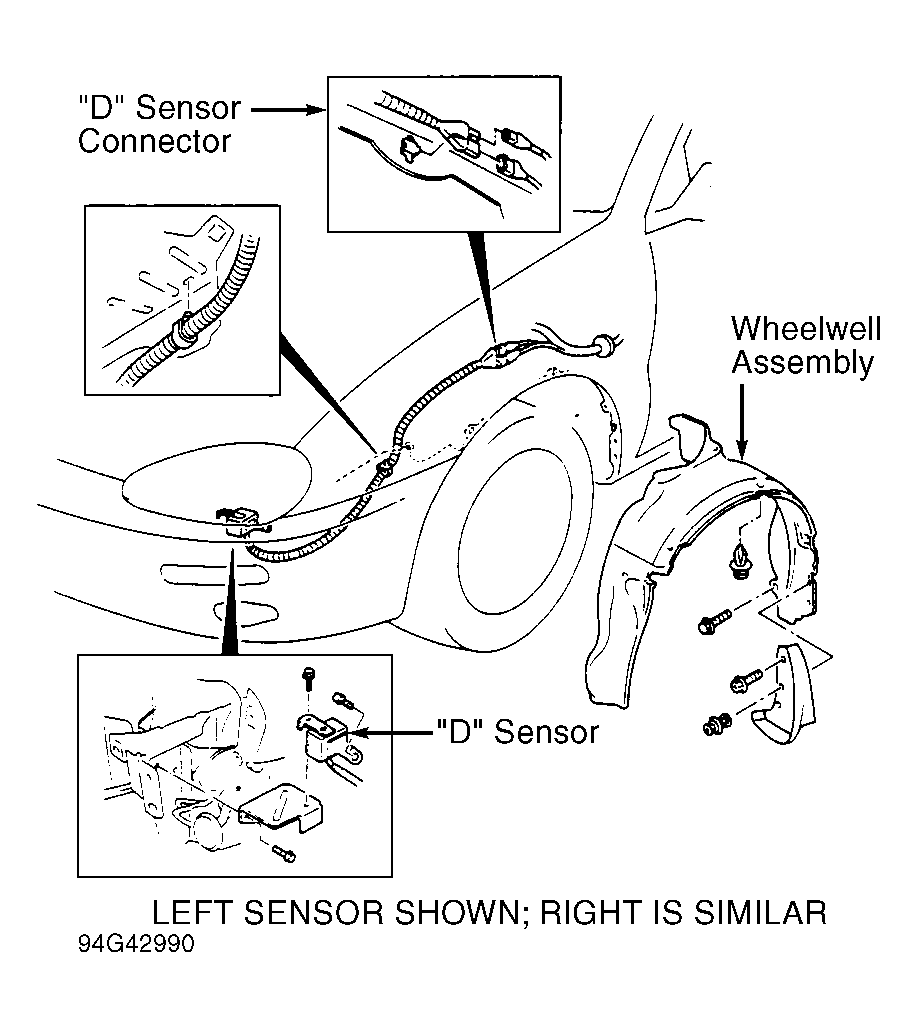

Fig 1: Removing Front (D-Sensor)
G94G42990Courtesy of MAZDA MOTORS CORP.

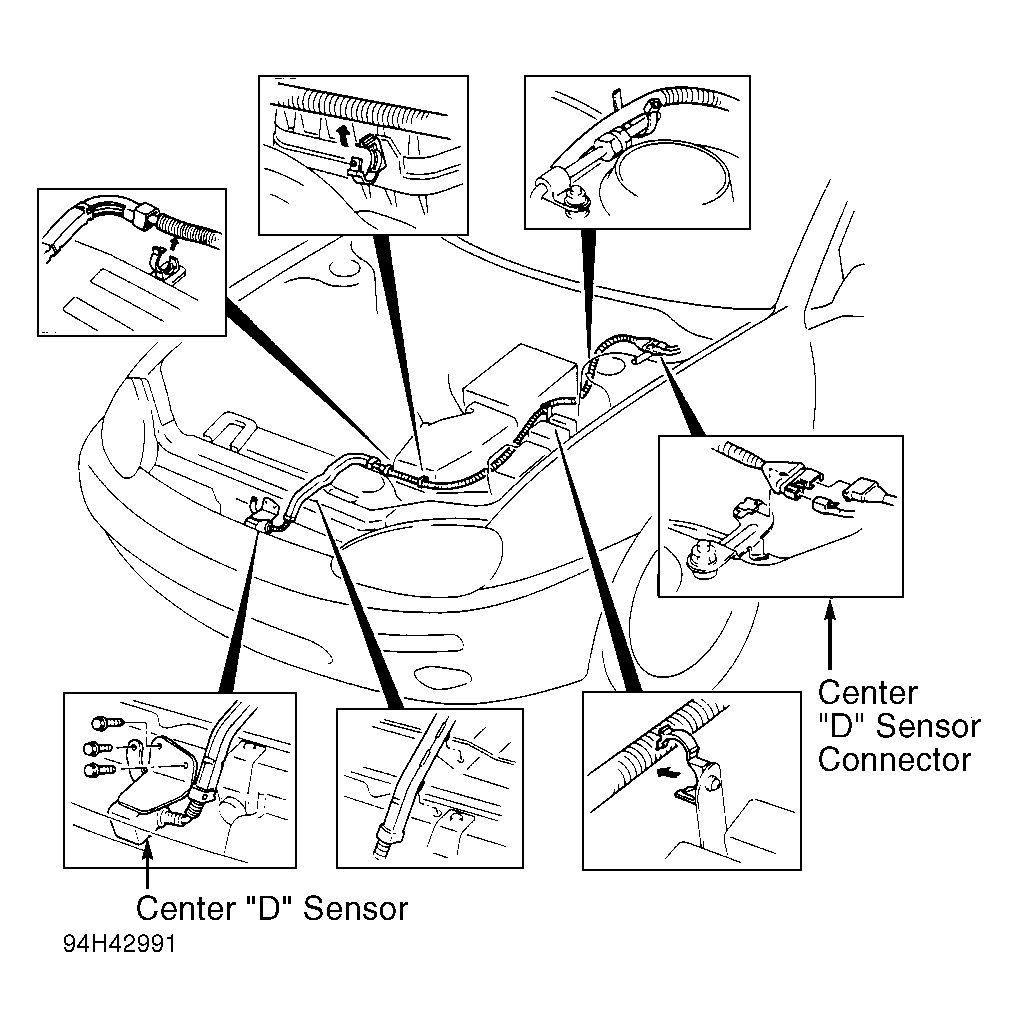

Fig 2: Removing Center (D-Sensor)
G94H42991Courtesy of MAZDA MOTORS CORP.
