Refrigerant Oils

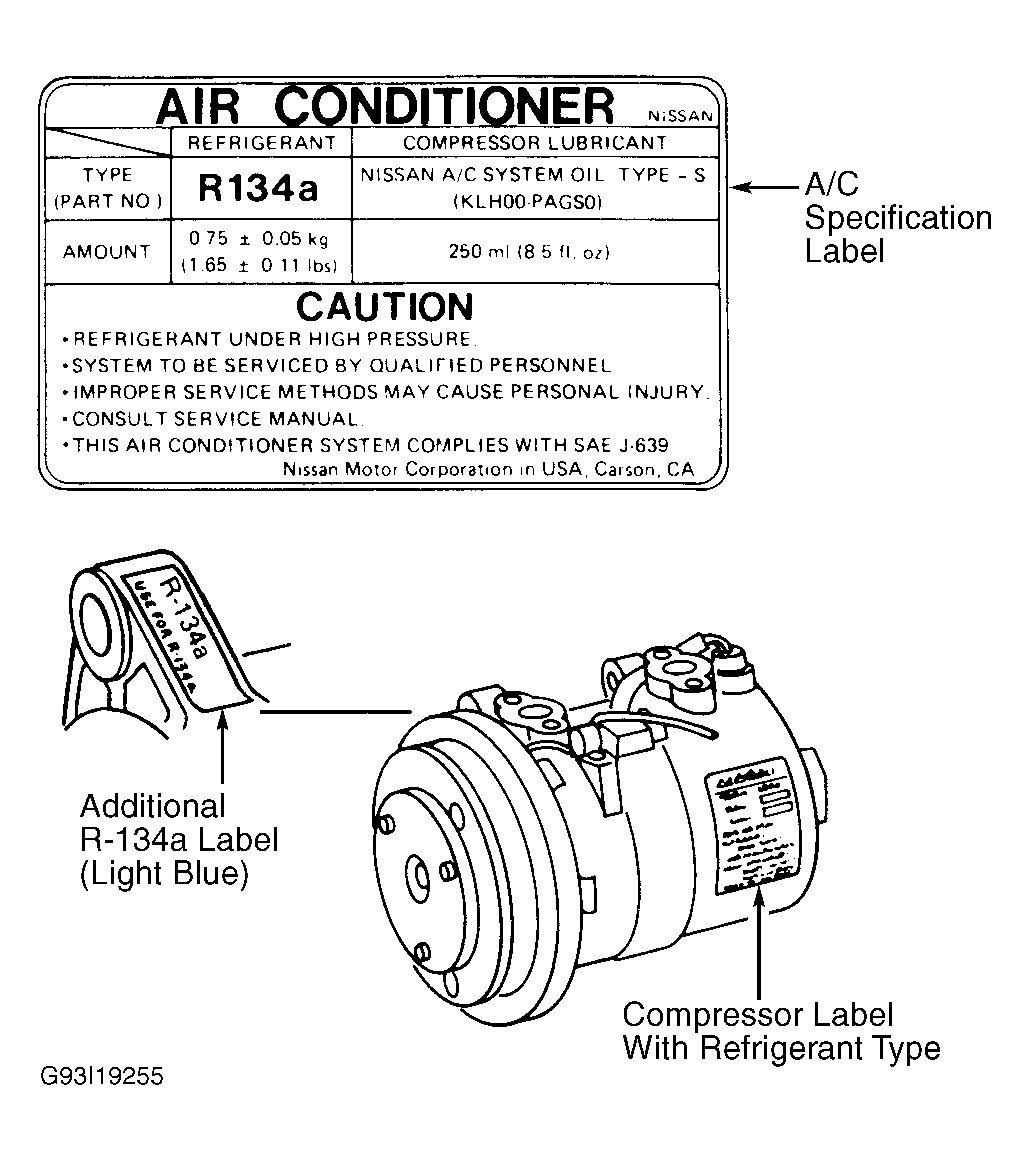

NOTE: Use ONLY the specified oil for the appropriate system or A/C compressor. Always check the underhood A/C specification label or A/C compressor label before adding refrigerant oil to A/C compressor/system. See Figure .

Refrigerant R-12 based systems use mineral oil, while R-134a systems use synthetic/Polyalkylene Glycol (PAG) oils. Using a mineral oil based lubricant with R-134a will result in A/C compressor failure due to lack of proper lubrication. The following R-134a refrigerant oils are currently available for Mazda models:

Use ND-Oil 8 refrigerant oil with 10P/10PA swashplate (piston) compressors. Use Synthetic Refrigerant Oil (ND-Oil 9) with most rotary vane compressors. On Navajo, use SUNISCO 5GS refrigerant oil. Use ATMOS GU-10 refrigerant oil on MX-3, MX-6, 626 and 929.

NOTE: Synthetic/PAG oils absorb moisture very rapidly, 2.3-5.6% by weight, as compared to a mineral oil absorption rate of .005% by weight.
