Drive Belt Routing (1.8L)

Fig 1: Identifying Drive Belt Routing & Deflection Check Point (1.8L, 1 Of 3)
G00160462Courtesy of MAZDA MOTORS CORP.

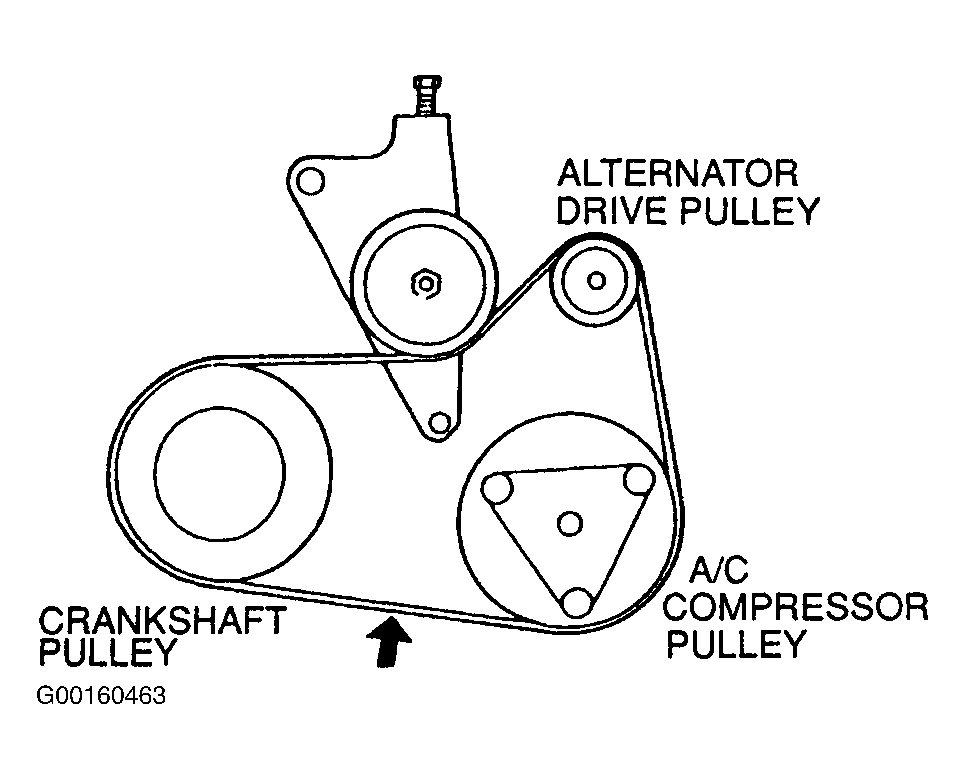

Fig 2: Identifying Drive Belt Routing & Deflection Check Point (1.8L, 2 Of 3)
G00160463Courtesy of MAZDA MOTORS CORP.

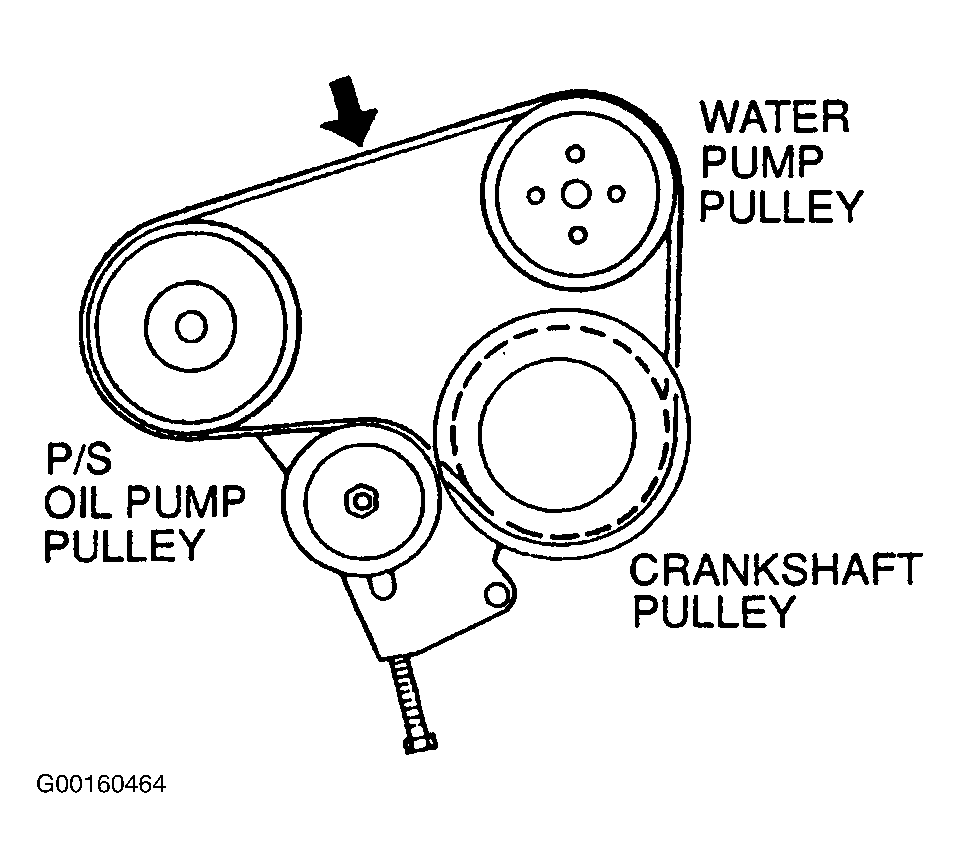

Fig 3: Identifying Drive Belt Routing & Deflection Check Point (1.8L, 3 Of 3)
G00160464Courtesy of MAZDA MOTORS CORP.
