Alternator (1994-95)

Loosen alternator mounting bolt and adjusting bolt, and adjust belt deflection by turning adjusting bolt. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

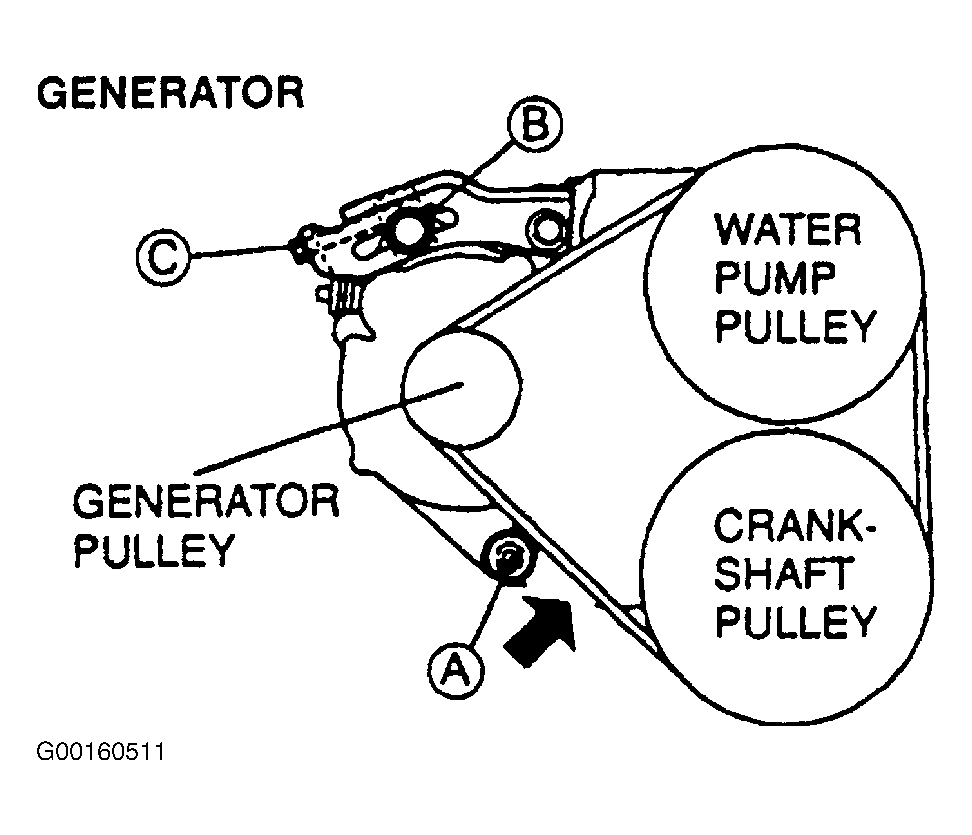

Fig 1: Adjusting Alternator Belt (1994-95, 1.6L)
G00160511Courtesy of MAZDA MOTORS CORP.
