Alternator (1992-1993)

Loosen alternator mounting bolt and adjusting bolt. Leven alternator outward and apply tension to belt. See Fig 1 and Figure . See ADJUSTMENT SPECIFICATIONS . Tighten bolts to specification. See TORQUE SPECIFICATIONS .

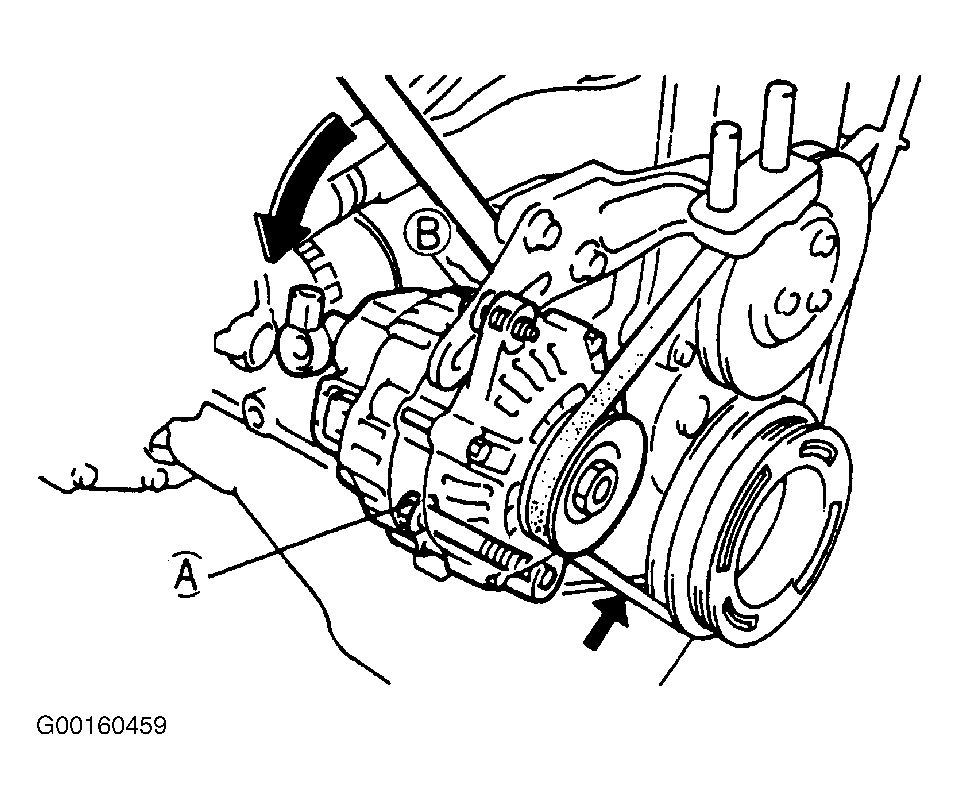

Fig 1: Adjusting Alternator Belt (1993, 1.6L)
G00160459Courtesy of MAZDA MOTORS CORP.
