Reassembly & Installation

WARNING: This page is about a different car, the 1994 Mazda MX-3. However, it is still accessible from the selected car via links, so may be relevant.

To reassemble, reverse disassembly procedure. Ensure coil spring is seated in upper and lower seats. Ensure mounting block is positioned in alignment with lower strut mount. See Fig 2. To install, reverse removal procedure. Fully tighten nuts and lower bolt with vehicle resting on ground and suspension unloaded. See TORQUE SPECIFICATIONS table. Check rear wheel alignment.

See WHEEL ALIGNMENT SPECIFICATIONS & PROCEDURES article in the WHEEL ALIGNMENT section.

Fig 1: Exploded View Of Rear Strut Assembly

Courtesy of MAZDA MOTORS CORP.

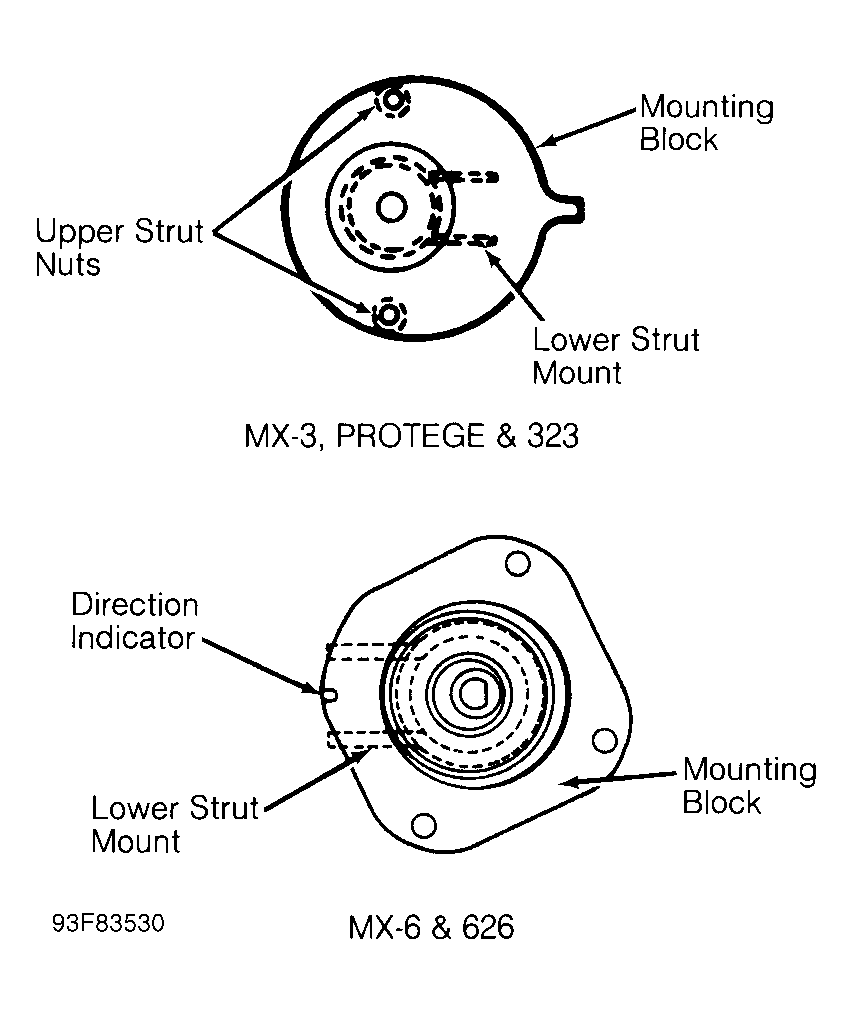

Fig 2: Positioning Strut For Installation

Courtesy of MAZDA MOTORS CORP.
