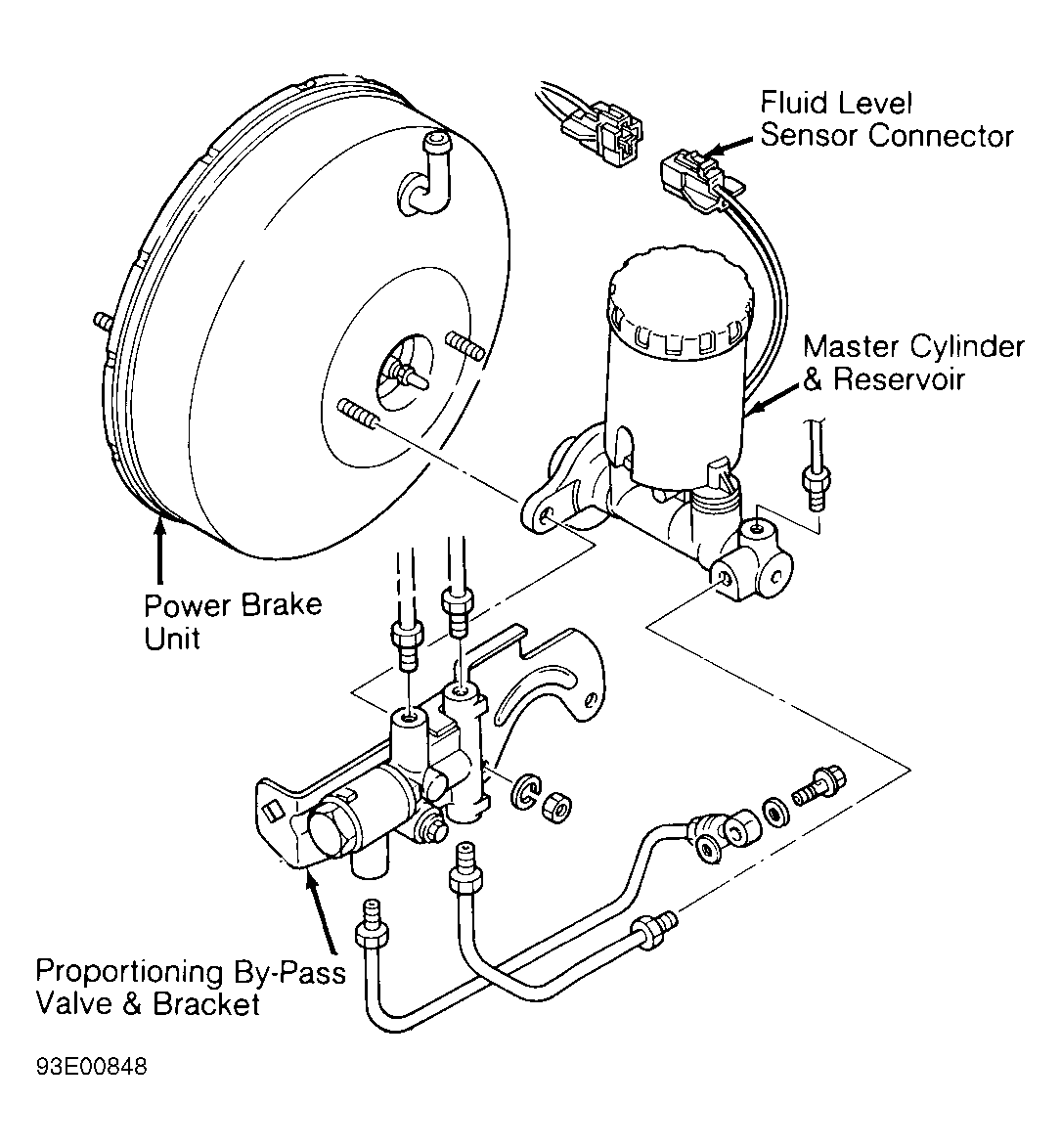

Master Cylinder: Installation
- Place Adjustment Gauge (49-F043-001) onto master cylinder. Turn screw on adjuster gauge until it contacts piston. Remove adjuster gauge. Apply 19.7 in. Hg to power brake unit.
- Invert adjuster gauge and place it on power brake unit. Adjust push rod on power brake unit until there is no clearance between push rod and adjuster gauge screw. To install master cylinder, reverse removal procedure. Bleed air from system.
