Front Disc Brake Pads: Installation

To install, reverse removal procedure. Use "C" clamp and old pad to push caliper piston into piston bore until it bottoms out. Bleed air from brake system.

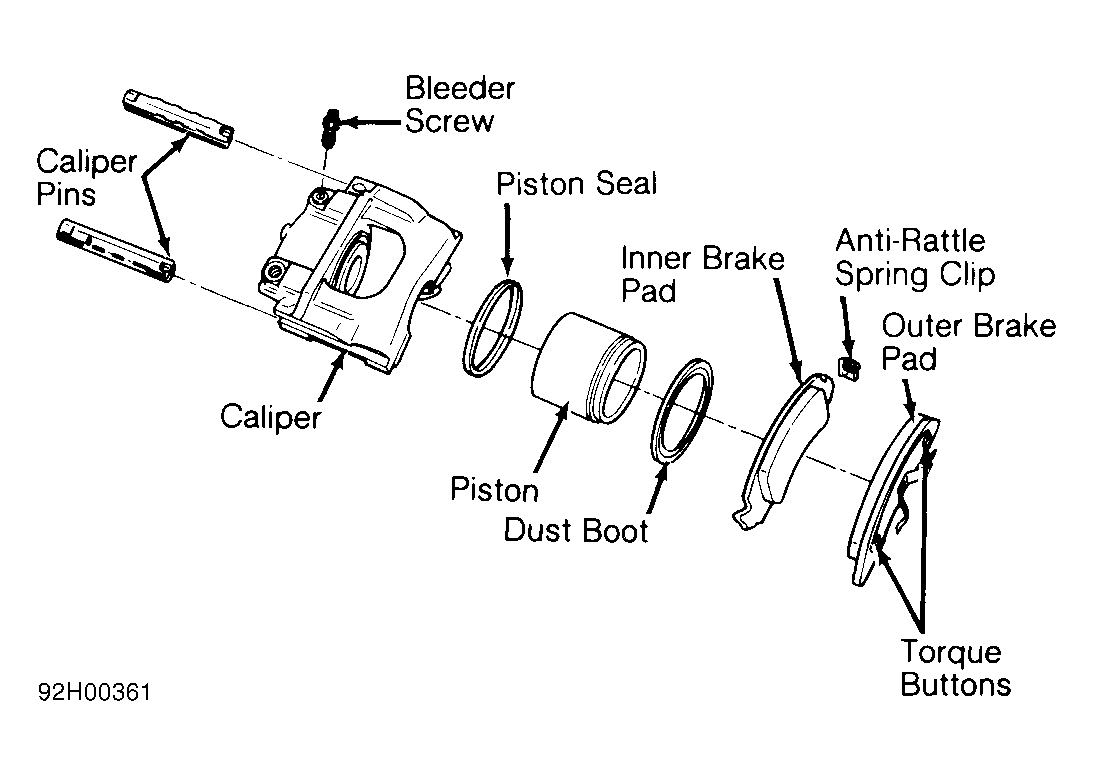

Fig 1: Front Brake Disc Assembly (Navajo)

Courtesy of MAZDA MOTORS CORP.

MINIMUM PAD LINING SPECIFICATIONS (FRONT)

Application	Thickness In. (mm)
B2200, B2600i & Navajo	.12 (3.0)
Miata & 929	.04 (1.0)
MPV, MX-3, MX-6, Protege, 323 & 626	.08 (2.0)
