Removal & Installation (All With Single-Piston Caliper)

Raise and support front of vehicle. Remove wheels. Remove lower lock pin/guide bolt. See Fig 1 , Fig 2 , Fig 4 , Fig 5 , or Fig 6 . Pivot caliper upward, and support using rope. Remove brake pads. Replace pad if lining thickness is less than specified. See MINIMUM PAD LINING SPECIFICATIONS (FRONT) TABLE. To install, reverse removal procedure.

MINIMUM PAD LINING SPECIFICATIONS (FRONT)

Application	Thickness In. (mm)
B2200, B2600i & Navajo	.12 (3.0)
Miata	.04 (1.0)
MPV, MX-6, Protege, RX7, 323, 626 & 929	.08 (2.0)

NOTE: The following figures are Courtesy Mazda Motors Corp.

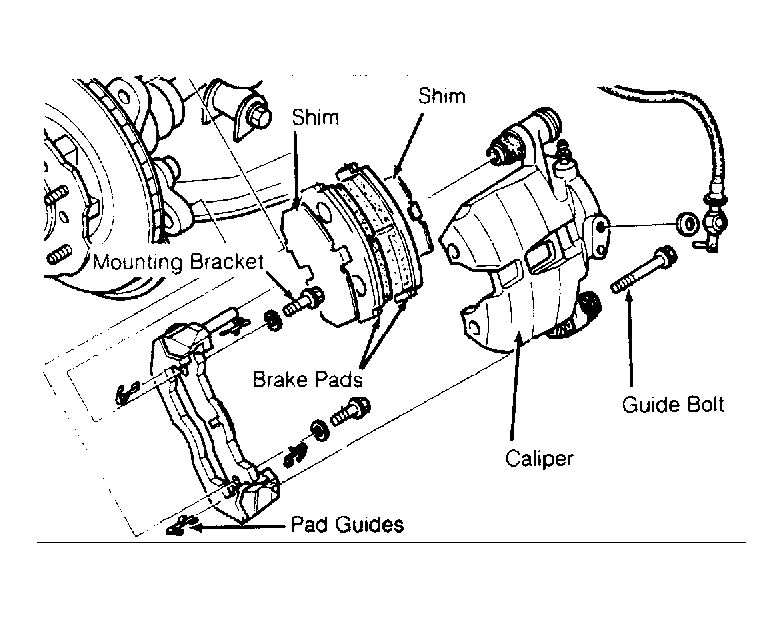

Fig 1: View of Front Disc Brake Assembly B2200 & B2600I

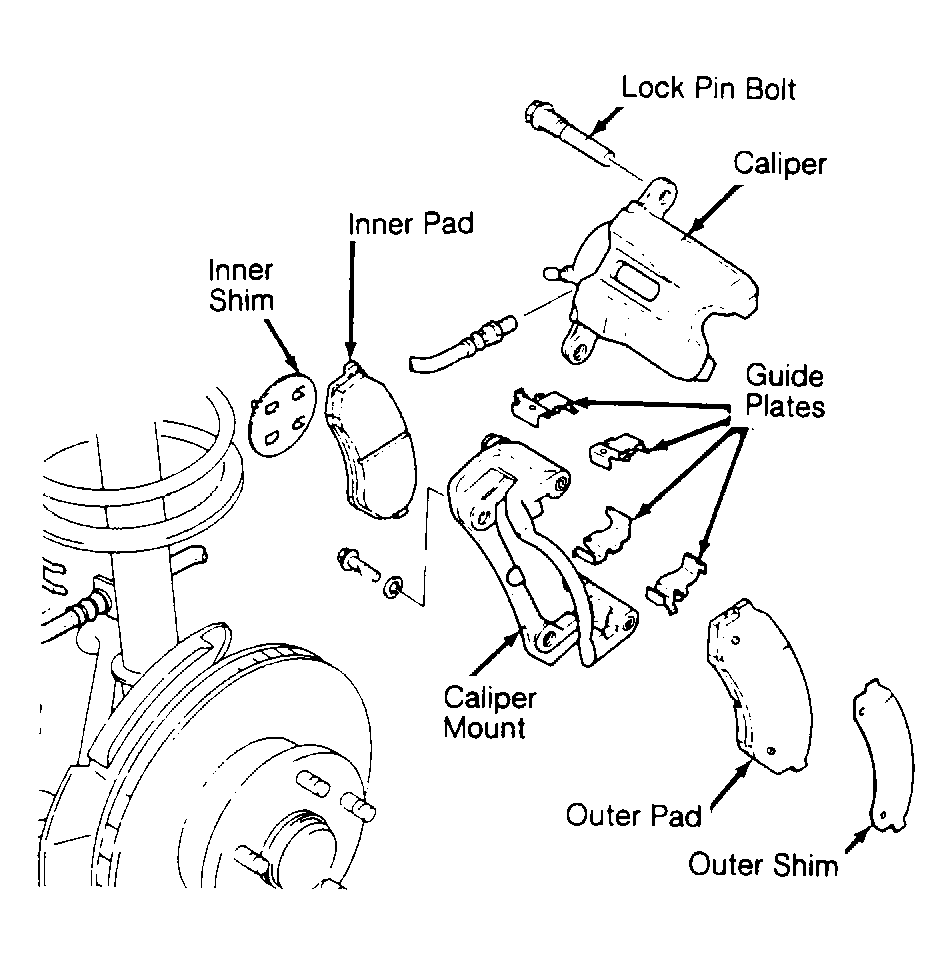

Fig 2: View of Front Disc Brake Assembly, Miata Shown; MPV Similar.

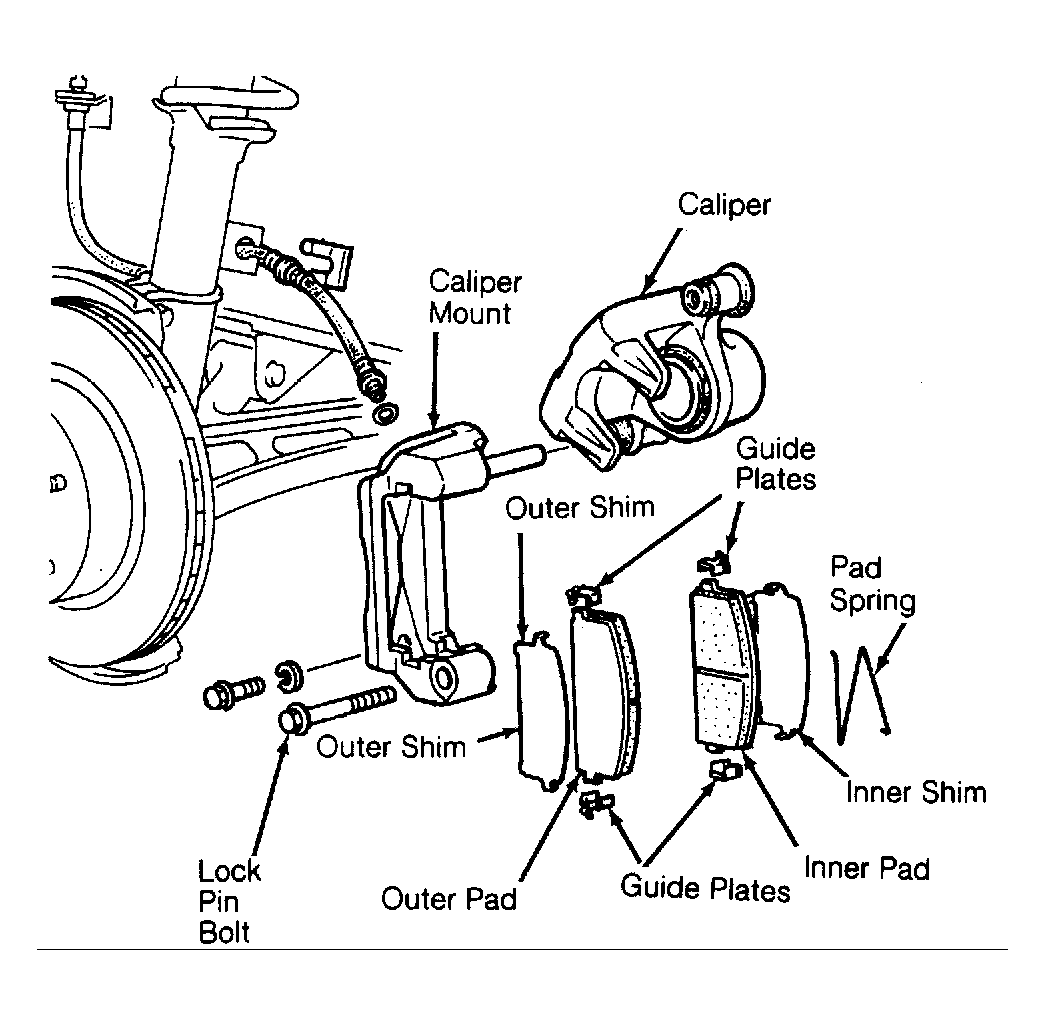

Fig 3: View of Front Brake Disc Assembly Navajo.

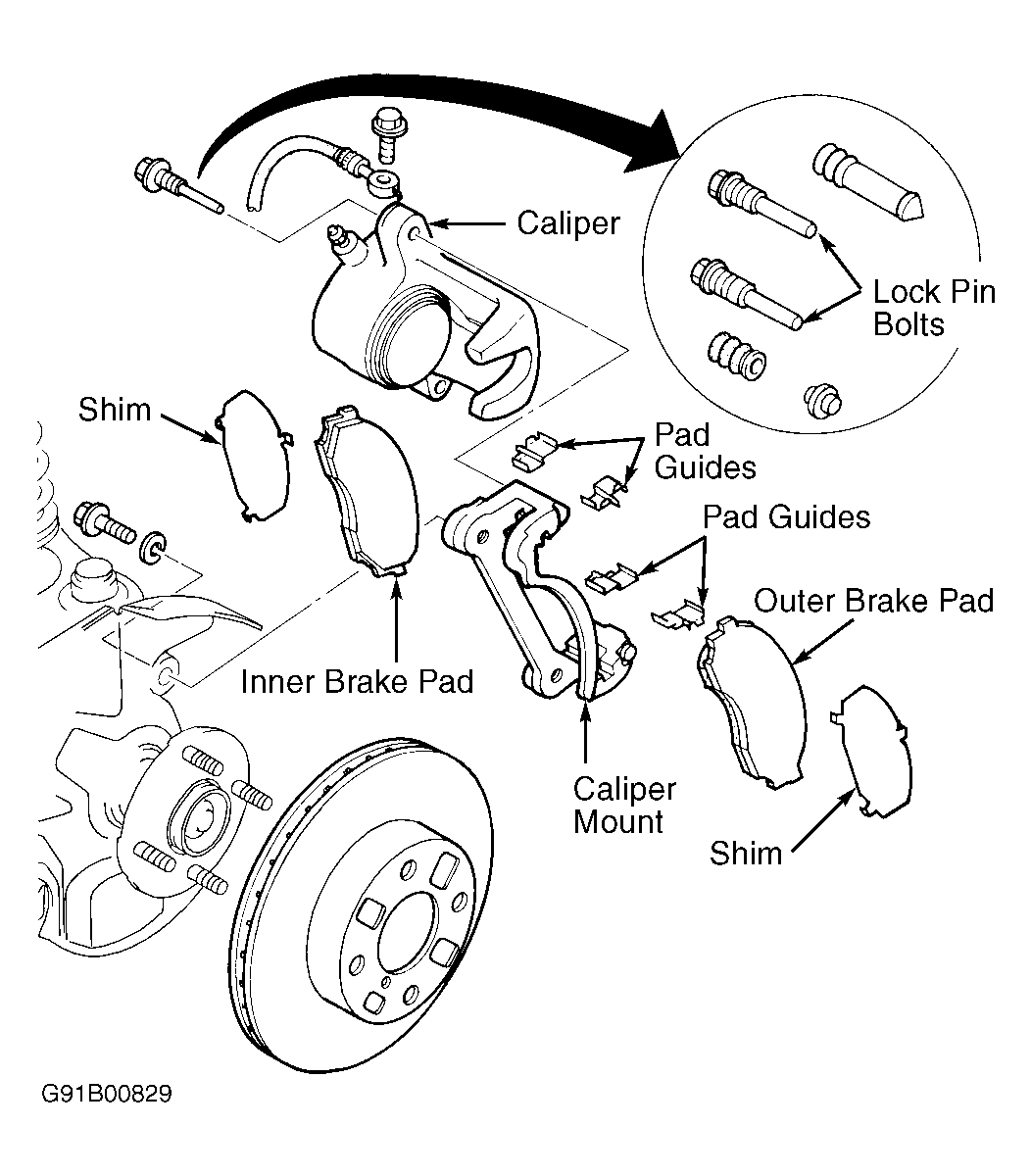

Fig 4: View of Front Brake Disc Assembly MX-6 & 626.

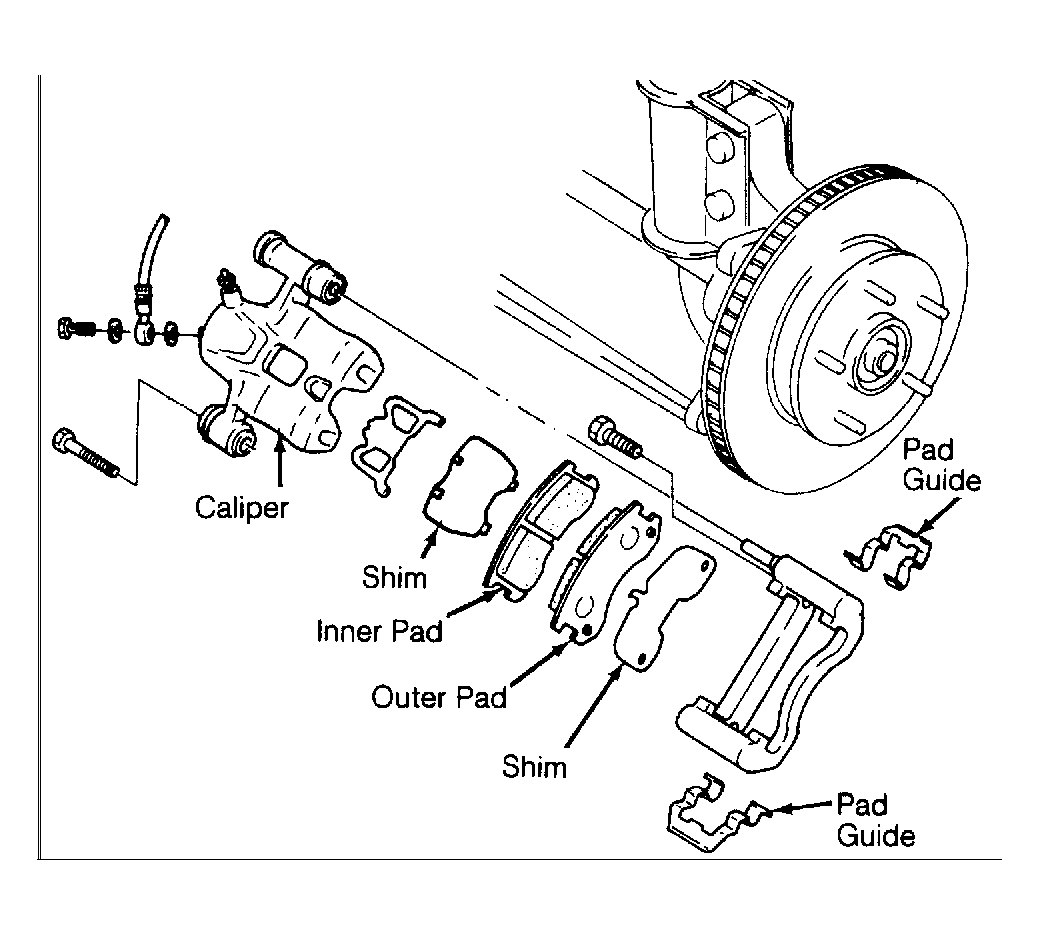

Fig 5: View of RX7 Single-Piston Caliper Front Brake Assembly

Fig 6: View of Front Disc Brake Assembly 929
