Removal & Installation

  1. Remove master cylinder from power brake unit. See MASTER CYLINDER under REMOVAL & INSTALLATION  . Disconnect vacuum line at power brake unit. From inside vehicle, remove cotter pin and clevis pin. Separate push rod from brake pedal.
  2. Remove power brake unit-to-firewall nuts. Remove power brake unit. See Fig 1 To install, reverse removal procedure. Bleed hydraulic system.

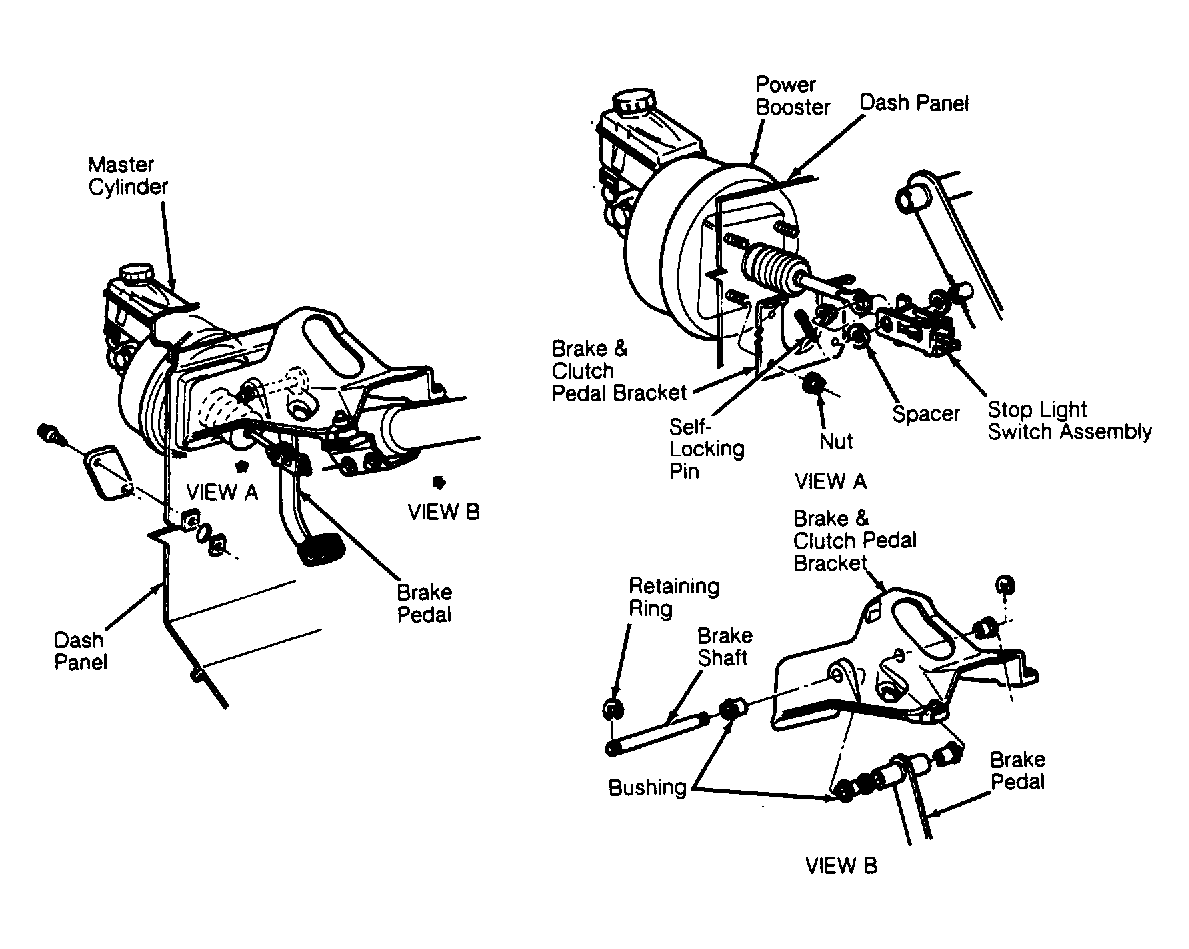

Fig 1: Removing Master Cylinder & Power Brake Unit (Typical)
G92J00363Courtesy of MAZDA MOTORS CORP.
